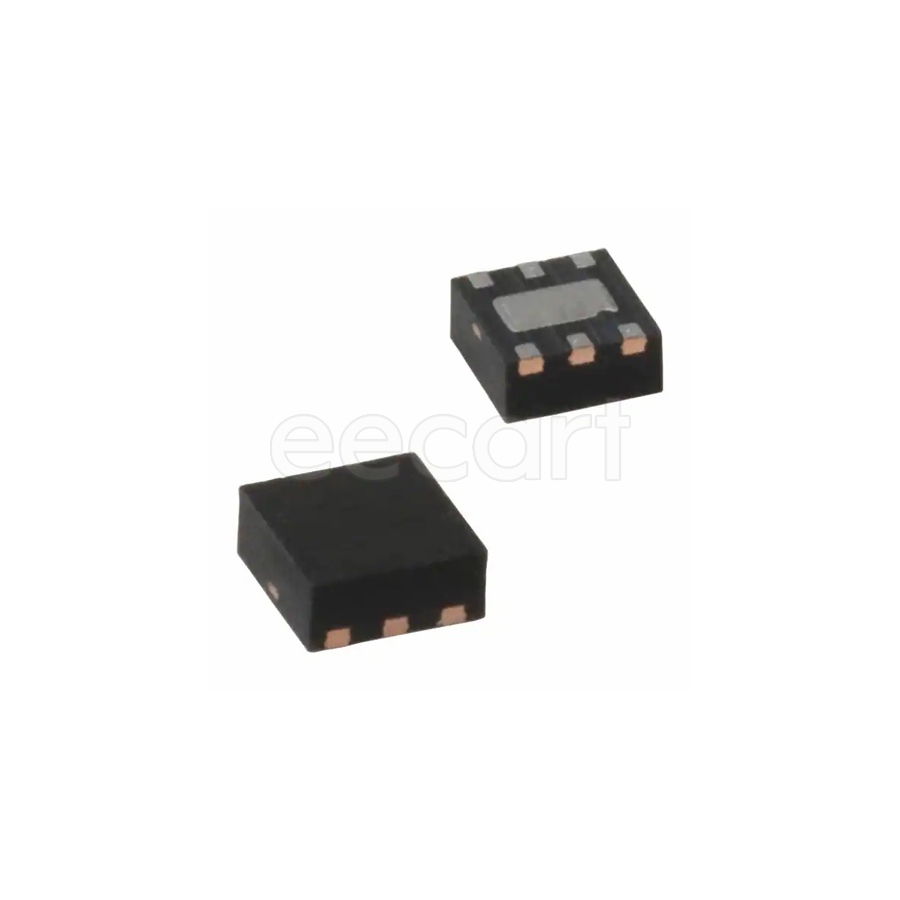

MIC23030-GYMT-TR
Manufacturer:
Microchip
Mfr.Part #:
MIC23030-GYMT-TR
Datasheet:
Description:
Voltage Regulators - Switching MLF-6 EP SMD/SMT Buck Fixed 1.8 V
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Min Input Voltage | 2.7 V |
| Output Current | 400 mA |
| Output Voltage | 1.8 V |
| Output Type | Fixed |
| Lifecycle Status | Production (Last Updated: 7 months ago) |
| Max Output Current | 400 mA |
| Synchronous Rectifier | Yes |
| Output Configuration | Positive |
| Topology | Buck |
| Switching Frequency | 8 MHz |
| Max Input Voltage | 5.5 V |
| Number of Outputs | 1 |
| Min Output Voltage | 1.8 V |
| Schedule B | 8542390000 |
| Function | Step-Down |
Stock: 5558
Distributors
pcbx
pcbxUnit Price$0.35052
Ext.Price$0.35052
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.35052 | $0.35052 |
| 10 | $0.32107 | $3.21070 |
| 25 | $0.29410 | $7.35250 |
| 50 | $0.27783 | $13.89150 |
| 100 | $0.26246 | $26.24600 |
| 300 | $0.26246 | $78.73800 |
| 500 | $0.26246 | $131.23000 |
| 1000 | $0.26246 | $262.46000 |
| 3000 | $0.26246 | $787.38000 |
| 5000 | $0.26246 | $1312.30000 |
