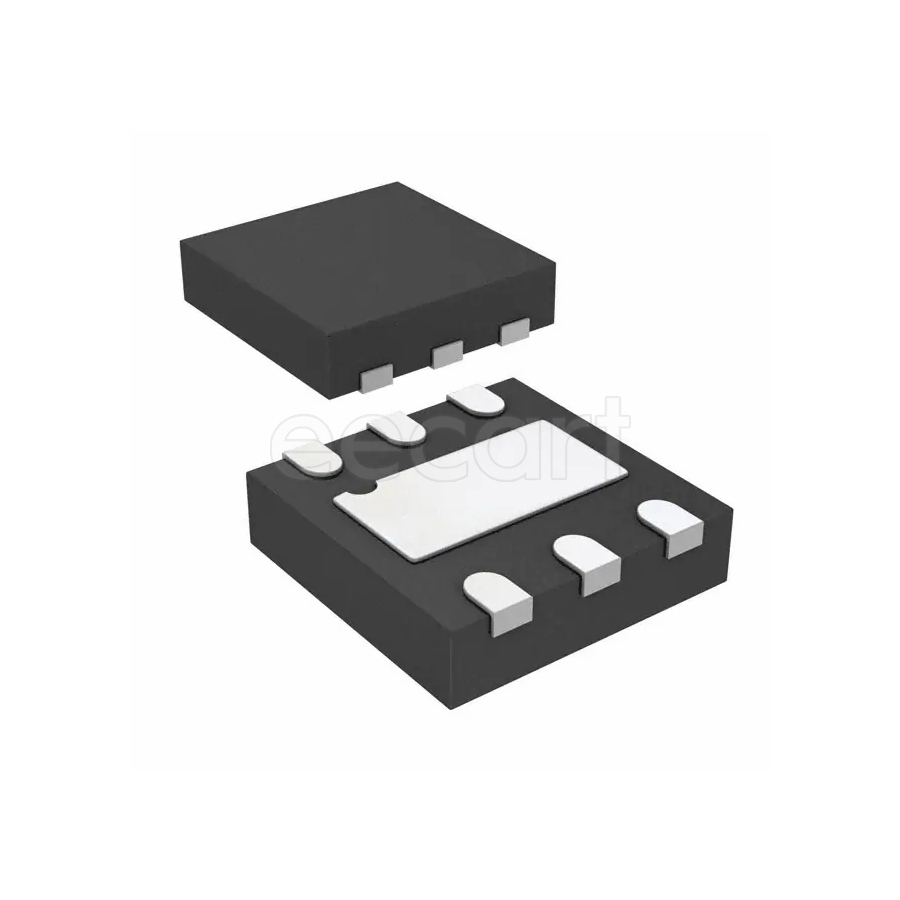

MIC5319-3.3YML-TR
Manufacturer:
Microchip
Mfr.Part #:
MIC5319-3.3YML-TR
Datasheet:
Description:
Voltage Regulators - Linear TDFN-6 SMD/SMT Positive Fixed 3.3 V 500 mA
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Height | 900 µm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Positive |
| REACH SVHC | No SVHC |
| Dropout Voltage | 200 mV |
| Min Input Voltage | 2.5 V |
| Output Current | 500 mA |
| Output Voltage | 3.3 V |
| Output Type | Fixed |
| Lifecycle Status | Production (Last Updated: 9 months ago) |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 3.7 V |
| Accuracy | 1 % |
| Max Output Current | 500 mA |
| Quiescent Current | 150 µA |
| Max Input Voltage | 5.5 V |
| Number of Outputs | 1 |
| Nominal Supply Current | 90 µA |
| Min Output Voltage | 3.3 V |
| Min Current Limit | 600 mA |
| Nominal Output Voltage | 3.3 V |
| Max Junction Temperature (Tj) | 125 °C |
| Number of Regulators | 1 |
| Schedule B | 8542390000 |
| Load Regulation | 0.1 % |
| Line Regulation | 0.04 %/V |
Stock: 1902
Distributors
pcbx
pcbxUnit Price$1.18237
Ext.Price$1.18237
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.18237 | $1.18237 |
| 10 | $1.07442 | $10.74420 |
| 25 | $0.97633 | $24.40825 |
| 50 | $0.93484 | $46.74200 |
| 100 | $0.89511 | $89.51100 |
| 300 | $0.89511 | $268.53300 |
| 500 | $0.89511 | $447.55500 |
| 1000 | $0.89511 | $895.11000 |
| 3000 | $0.89511 | $2685.33000 |
| 5000 | $0.89511 | $4475.55000 |
