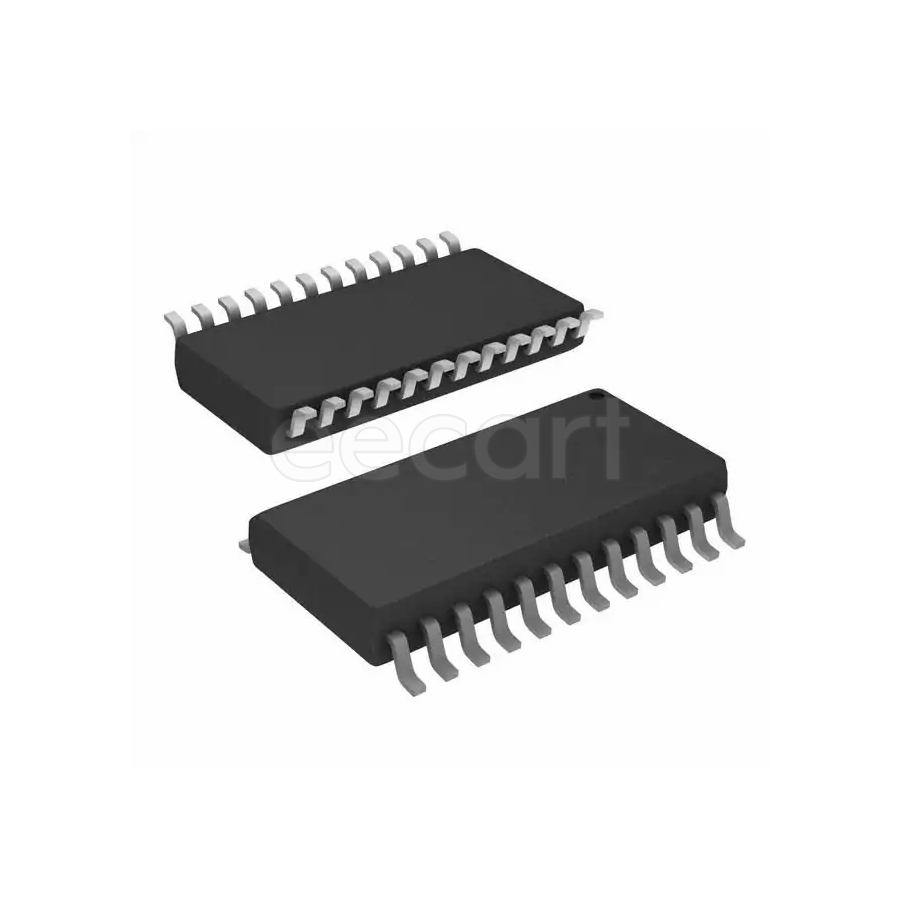

MIC5801YWM
Manufacturer:
Microchip
Mfr.Part #:
MIC5801YWM
Datasheet:
Description:
Hot Swap Controllers SOIC-24 SMD/SMT number of channels:8
| Parameter | Value |
|---|---|
| Length | 15.42 mm |
| Width | 7.52 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 24 |
| Height | 2.36 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Interface | Parallel |
| Output Current | 500 mA |
| Output Voltage | 50 V |
| Number of Circuits | 1 |
| Max Power Dissipation | 1 W |
| Max Supply Voltage | 12 V |
| Min Supply Voltage | 5 V |
| Max Output Current | 500 mA |
| Ambient Temperature Range High | 85 °C |
| Number of Channels | 8 |
| Number of Bits | 8 |
| Turn-On Delay Time | 500 ns |
| Turn-Off Delay Time | 500 ns |
| Logic Function | Latch |
| Output Configuration | Low Side |
| Number of Outputs | 8 |
| Nominal Supply Current | 1 mA |
| Number of Drivers | 8 |
| Number of Input Lines | 4 |
| Number of Output Lines | 4 |
| Schedule B | 8542390000 |
| Operating Supply Current | 1 mA |
| Packaging | Tube |
| RoHS | Compliant |
Stock: 627
Distributors
pcbx
pcbxUnit Price$2.76570
Ext.Price$2.76570
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.76570 | $2.76570 |
| 10 | $2.53042 | $25.30420 |
| 25 | $2.31515 | $57.87875 |
| 50 | $2.09629 | $104.81450 |
