MIC94091YC6-TR
Manufacturer:
Microchip
Mfr.Part #:
MIC94091YC6-TR
Datasheet:
Description:

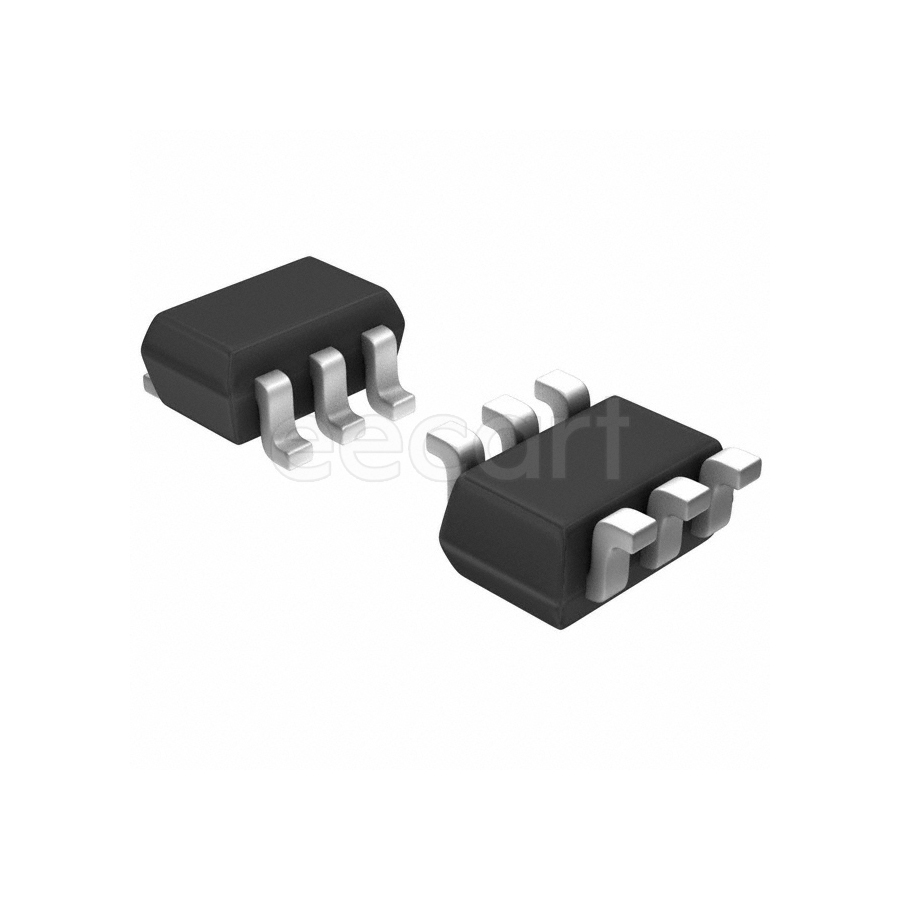

Hot Swap Controllers SC-70-6 SMD/SMT number of channels:1 High Side
| Parameter | Value |
|---|---|
| Length | 2.25 mm |
| Width | 1.35 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Resistance | 225 mΩ |
| Height | 1 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 5.5 V |
| REACH SVHC | No SVHC |
| Current | 1.2 A |
| Current Rating | 1.2 A |
| Interface | On/Off |
| Output Current | 1.2 A |
| Lifecycle Status | Production (Last Updated: 7 months ago) |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 1.7 V |
| Max Output Current | 1.2 A |
| Turn-On Delay Time | 1.5 µs |
| Turn-Off Delay Time | 200 ns |
| Output Configuration | High Side |
| Number of Outputs | 1 |
| Nominal Supply Current | 100 nA |
| Nominal Input Voltage | 5.5 V |
| Max Junction Temperature (Tj) | 125 °C |
| Number of Channels | 1 |
| Packaging | Reel |
| Features | Load Discharge |
| Type | High Side |
Stock: 1
Distributors
pcbx
pcbxUnit Price$0.86909
Ext.Price$0.86909
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.86909 | $0.86909 |
| 10 | $0.70541 | $7.05410 |
| 25 | $0.64880 | $16.22000 |
| 50 | $0.59673 | $29.83650 |
| 100 | $0.54883 | $54.88300 |
| 300 | $0.52412 | $157.23600 |
| 500 | $0.50052 | $250.26000 |
| 1000 | $0.47423 | $474.23000 |
