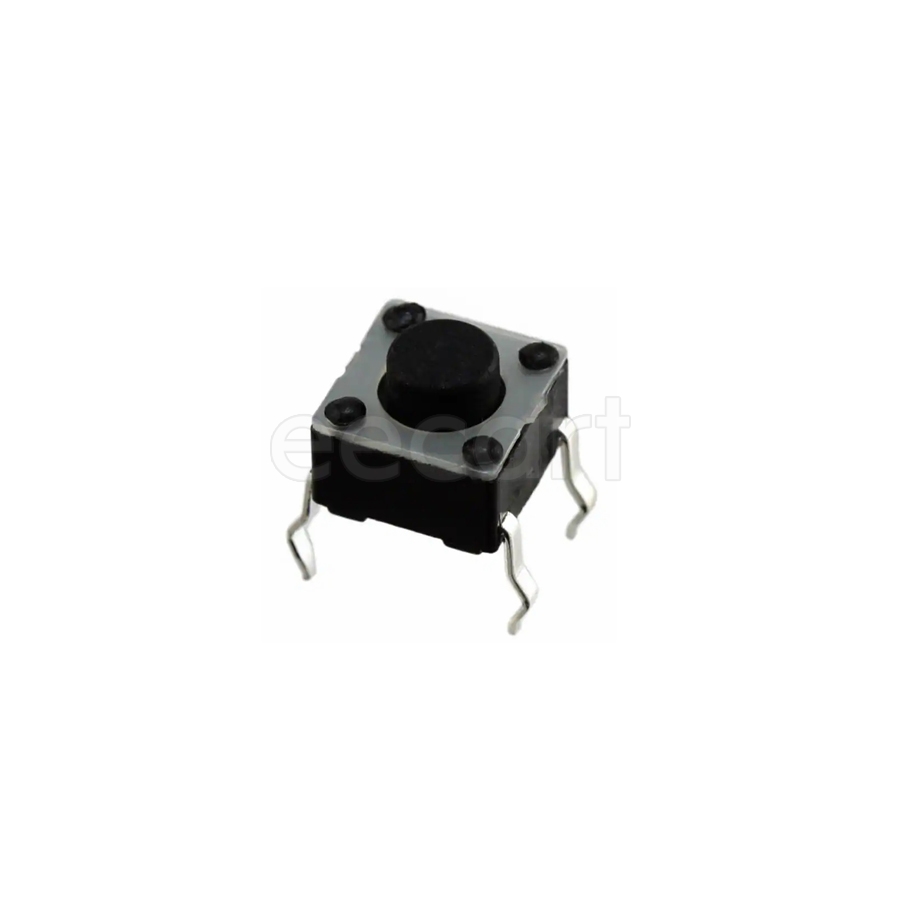

MJTP1230A
Manufacturer:
Apem
Mfr.Part #:
MJTP1230A
Datasheet:
Description:
Tactile Switches Through Hole Off-Mom 1.6 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Height | 5 mm |
| Packaging | Bulk |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Bronze, Stainless Steel |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Color | Black |
| Actuator Length | 1.4 mm |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Illuminated, Non-Illuminated |
| Electrical Life | 100 kcycles |
| Operating Force | 1.6 N |
| Switch Travel | 250 µm |
| Actuator Material | Thermoplastic |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 50 mA |
| Life (Cycles) | 100 kCycles |
| Mounting Direction | Straight |
| Actuator Type | Round |
Stock: 2033
Distributors
pcbx
pcbxUnit Price$0.20690
Ext.Price$0.20690
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.20690 | $0.20690 |
| 10 | $0.17868 | $1.78680 |
| 50 | $0.16397 | $8.19850 |
| 100 | $0.15047 | $15.04700 |
| 500 | $0.13166 | $65.83000 |
| 1000 | $0.12311 | $123.11000 |
| 3000 | $0.11561 | $346.83000 |
| 5000 | $0.10857 | $542.85000 |
