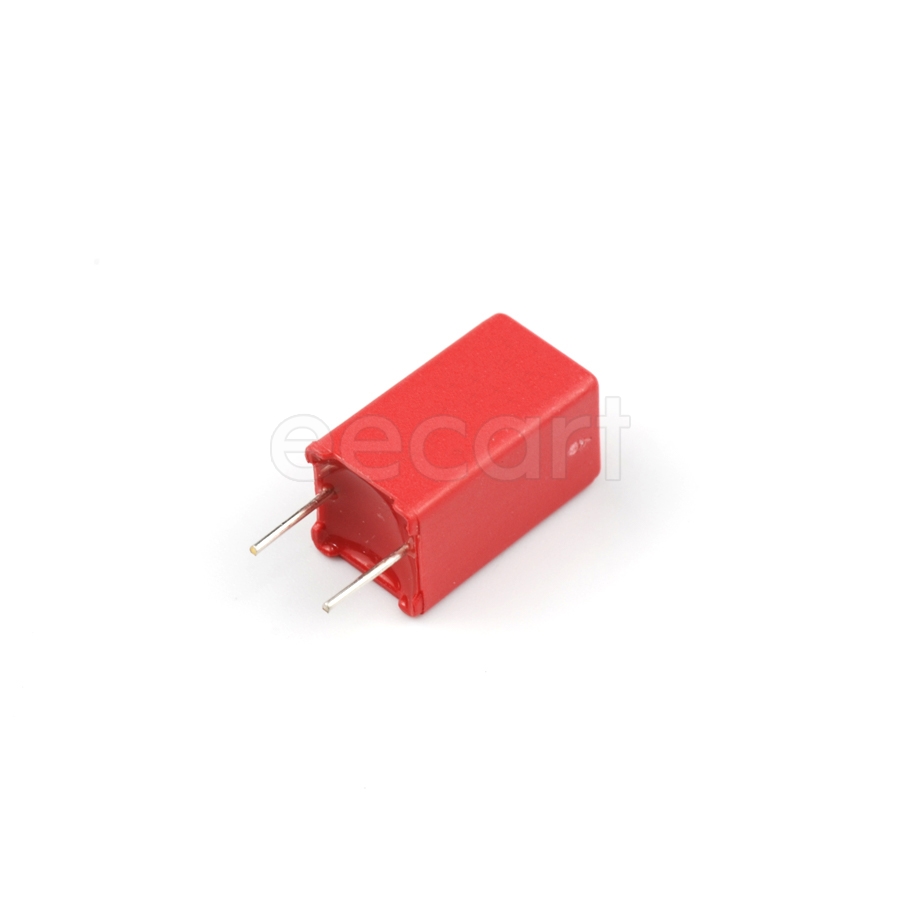

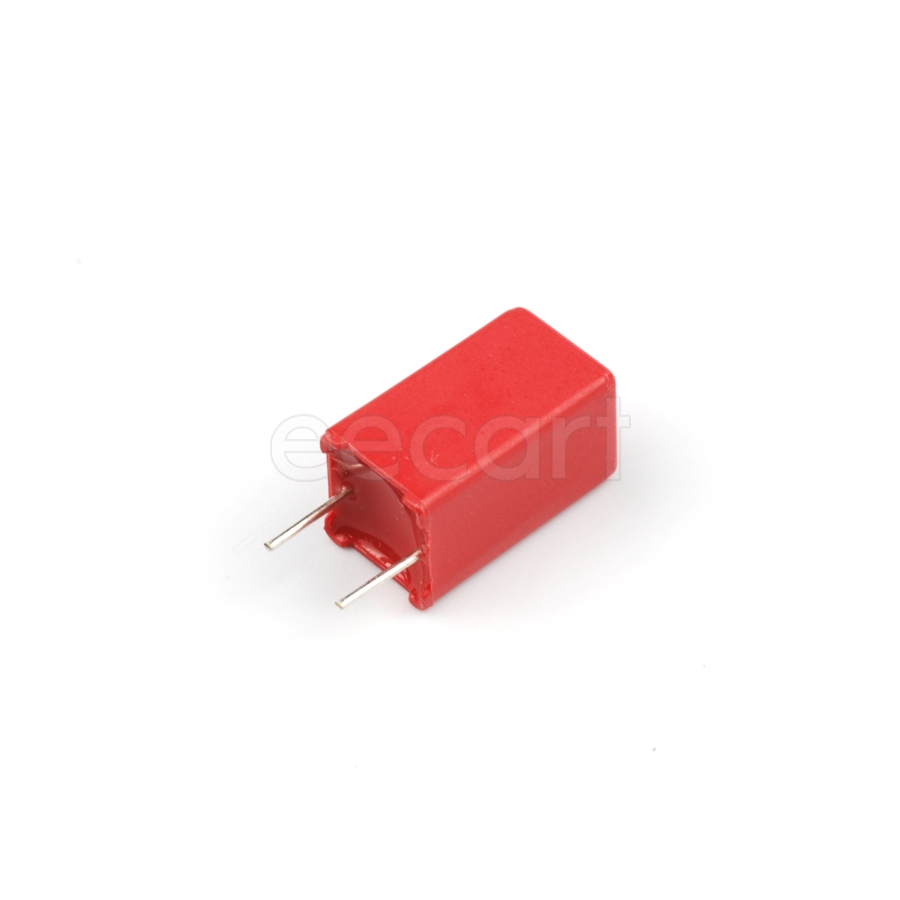

MKP2D032201K00JSSD
Manufacturer:
WIMA
Mfr.Part #:
MKP2D032201K00JSSD
Datasheet:
Description:
Film Capacitors Through Hole 220 nF 5 % Polypropylene (PP) Voltage Rating (DC):100 V Voltage Rating (AC):63 V
| Parameter | Value |
|---|---|
| Capacitance | 220 nF |
| Voltage Rating (DC) | 100 V |
| Tolerance | 5 % |
| Length | 7.2 mm |
| Width | 7.2 mm |
| Termination | Radial |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -55 °C |
| Dielectric | Polypropylene (PP) |
| Voltage Rating (AC) | 63 V |
| Dissipation Factor | 0.5 % |
| Height | 13 mm |
| Packaging | Bulk |
| Voltage Rating | 100 V |
| RoHS | Compliant |
| Lead Diameter | 500 µm |
| Lead Pitch | 5 mm |
| Type | General Purpose |
| Number of Pins | 2 |
Stock: 344
Distributors
pcbx
pcbxUnit Price$0.63180
Ext.Price$0.63180
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.63180 | $0.63180 |
| 10 | $0.42917 | $4.29170 |
| 25 | $0.36547 | $9.13675 |
| 50 | $0.31122 | $15.56100 |
| 100 | $0.26503 | $26.50300 |
| 300 | $0.25545 | $76.63500 |
| 500 | $0.24622 | $123.11000 |
| 1000 | $0.23169 | $231.69000 |
