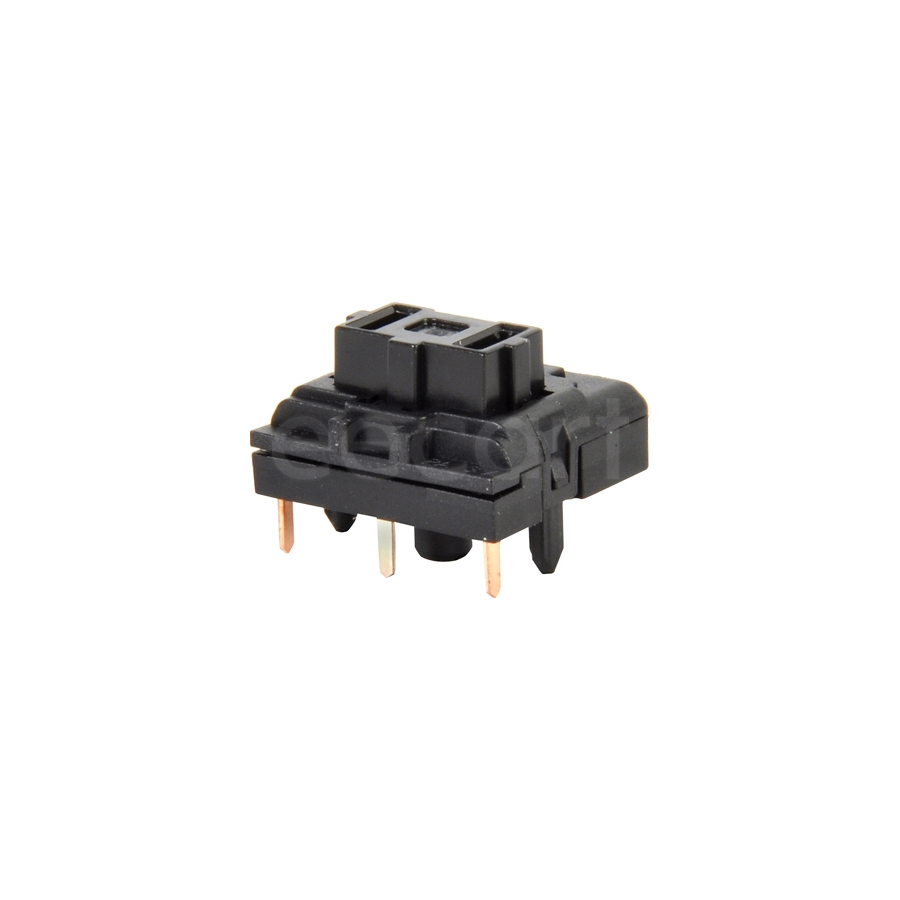

ML1A-11JW
Manufacturer:
Cherry
Mfr.Part #:
ML1A-11JW
Datasheet:
Description:
Pushbutton Switches Through Hole SPST-NO Off-Mom Plunger for Cap Keyswitch Current Rating:10 mA
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -10 °C |
| Voltage Rating (AC) | 12 V |
| Circuit Type | SPST-NO |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Ratings | IP40 |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold, Silver |
| Type | Keyswitch |
| Number of Terminals | 2 |
| Current Rating | 10 mA |
| Max Current Rating | 10 mA |
| Max Voltage Rating (DC) | 12 V |
| Flammability Rating | UL94HB |
| Orientation | Straight |
| Actuator Length | 3 mm |
| Throw Configuration | SPST |
| Row Spacing | 10.16 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 12 V |
| Switch Function | Off-Mom |
| Electrical Life | 2 Mcycles |
| Operating Force | 450 mN |
| Contact Current Rating | 10 mA |
| switching current | 10 mA |
| Actuator Type | Plunger for Cap |
| Termination Style | PC Pin |
| Cap Color | Black |
Stock: 3134
Distributors
pcbx
pcbxUnit Price$1.22435
Ext.Price$1.22435
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.22435 | $1.22435 |
