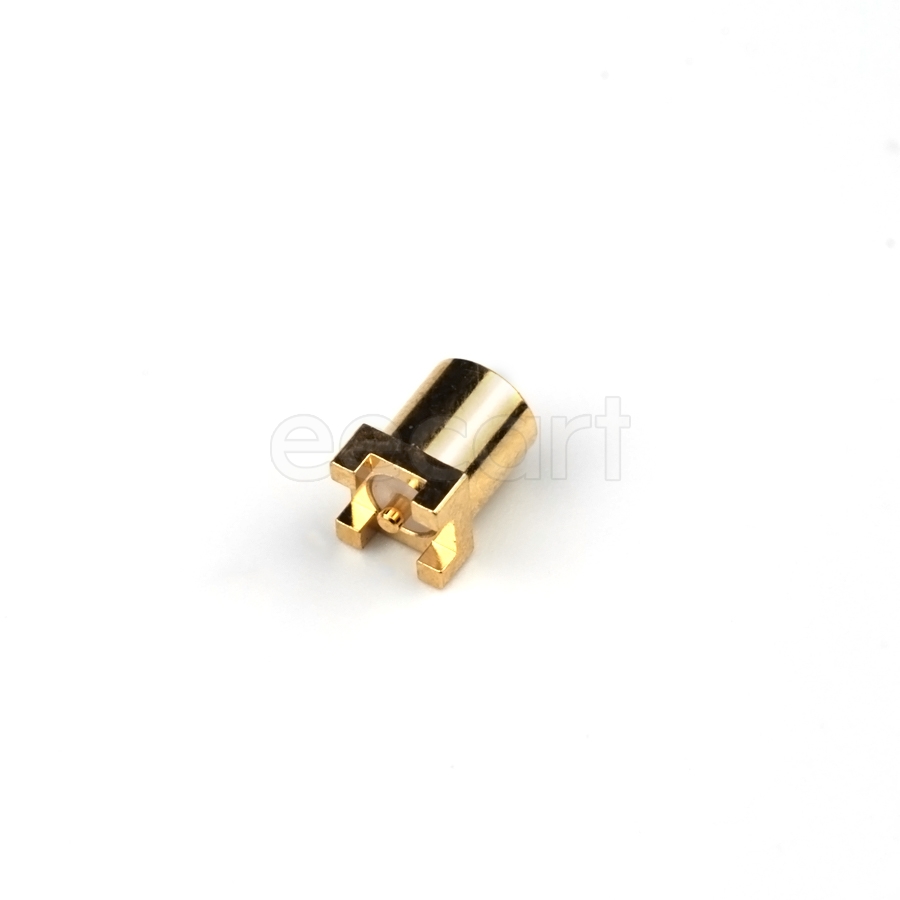

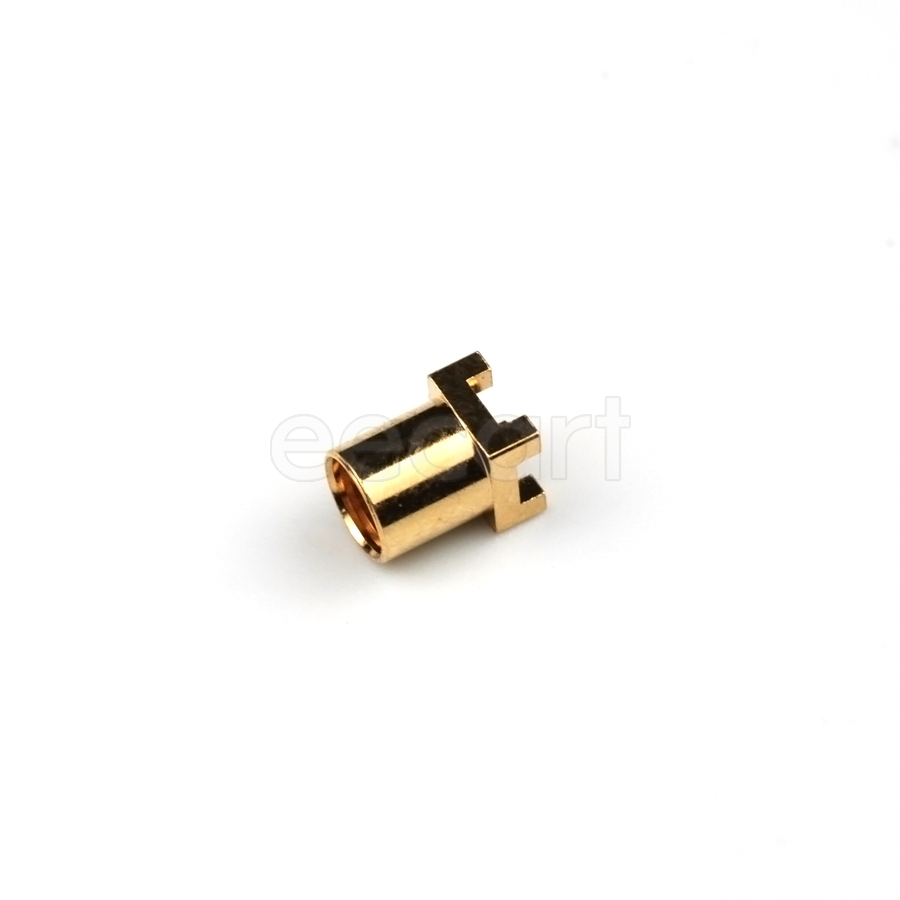

MMCX-J-P-H-ST-SM1
Manufacturer:
Samtec
Mfr.Part #:
MMCX-J-P-H-ST-SM1
Datasheet:
Description:
RF / Coaxial Connectors SMD/SMT MMCX, Socket 50 Ω
| Parameter | Value |
|---|---|
| Length | 3.45 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Voltage Rating | 335 V |
| Depth | 3.45 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Dielectric Material | PTFE |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Copper |
| Frequency | 6 GHz |
| Orientation | Straight |
| Gender | Jack (Socket) |
| Body Material | Brass |
| Connector Type | MMCX, Socket |
| Max Frequency | 6 GHz |
| Insulation Material | Polytetrafluoroethylene |
| Fastening Type | Snap |
| Housing Color | Gold |
| Body Plating | Gold |
| Packaging | Tray |
| Contact Termination | Solder |
| Shield Termination | Solder |
| RF Series | MMCX |
Stock: 2107
Distributors
pcbx
pcbxUnit Price$1.58931
Ext.Price$1.58931
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.58931 | $1.58931 |
| 10 | $1.57348 | $15.73480 |
| 25 | $1.55781 | $38.94525 |
| 50 | $1.54229 | $77.11450 |
| 100 | $1.52690 | $152.69000 |
| 300 | $1.46450 | $439.35000 |
| 500 | $1.36447 | $682.23500 |
| 1000 | $1.22683 | $1226.83000 |
| 3000 | $1.05491 | $3164.73000 |
| 5000 | $0.90708 | $4535.40000 |
