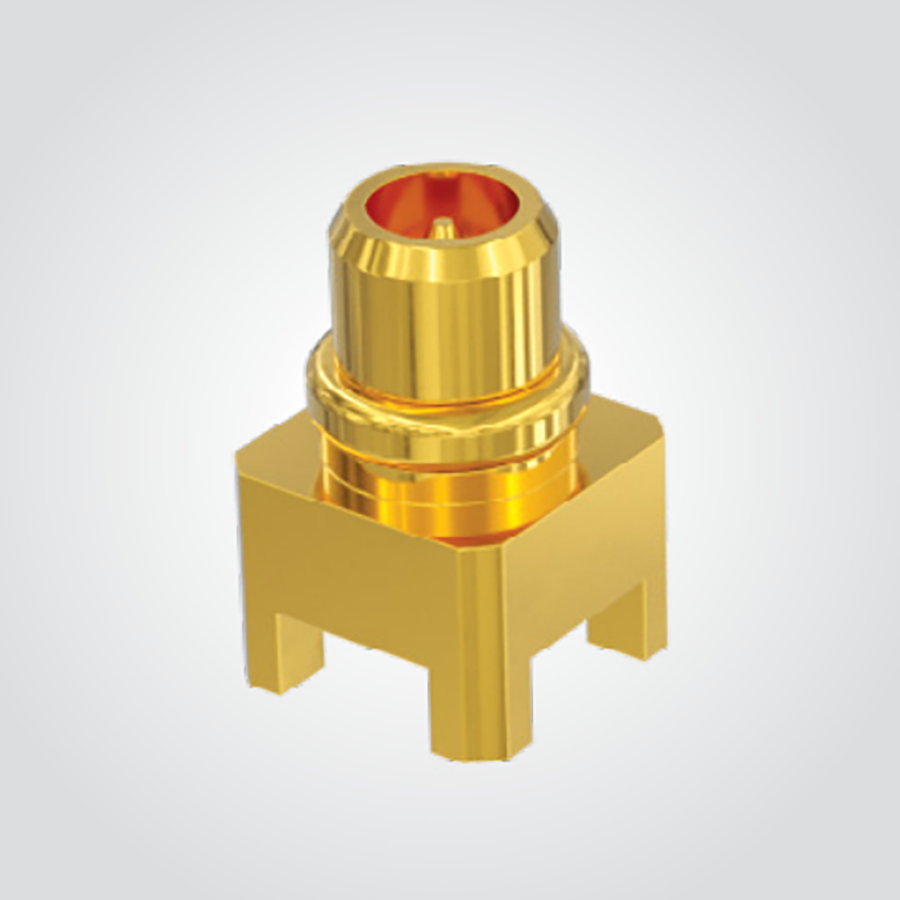

MMCX-J-P-H-ST-TH1
Manufacturer:
Samtec
Mfr.Part #:
MMCX-J-P-H-ST-TH1
Datasheet:
Description:
RF / Coaxial Connectors Through Hole 50 Ω
| Parameter | Value |
|---|---|
| Length | 3.5 mm |
| Termination | Solder |
| Max Operating Temperature | 90 °C |
| Min Operating Temperature | -40 °C |
| Height | 4.48 mm |
| Packaging | Tray |
| Depth | 3.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Dielectric Material | PTFE |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Copper, Gold |
| Frequency | 6 Hz |
| Orientation | Straight |
| Gender | Jack (Socket) |
| Number of Contacts | 1 |
| Body Material | Brass |
| Max Frequency | 6 GHz |
| Insulation Material | Polytetrafluoroethylene |
| Body Plating | Gold |
| RF Series | MMCX |
| Contact Termination | Solder |
| Shield Termination | Solder |
Stock: 7344
Distributors
pcbx
pcbxUnit Price$0.76338
Ext.Price$0.76338
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.76338 | $0.76338 |
| 10 | $0.70331 | $7.03310 |
| 25 | $0.68050 | $17.01250 |
| 50 | $0.66311 | $33.15550 |
| 100 | $0.64590 | $64.59000 |
| 300 | $0.62581 | $187.74300 |
| 500 | $0.60634 | $303.17000 |
| 1000 | $0.58948 | $589.48000 |
