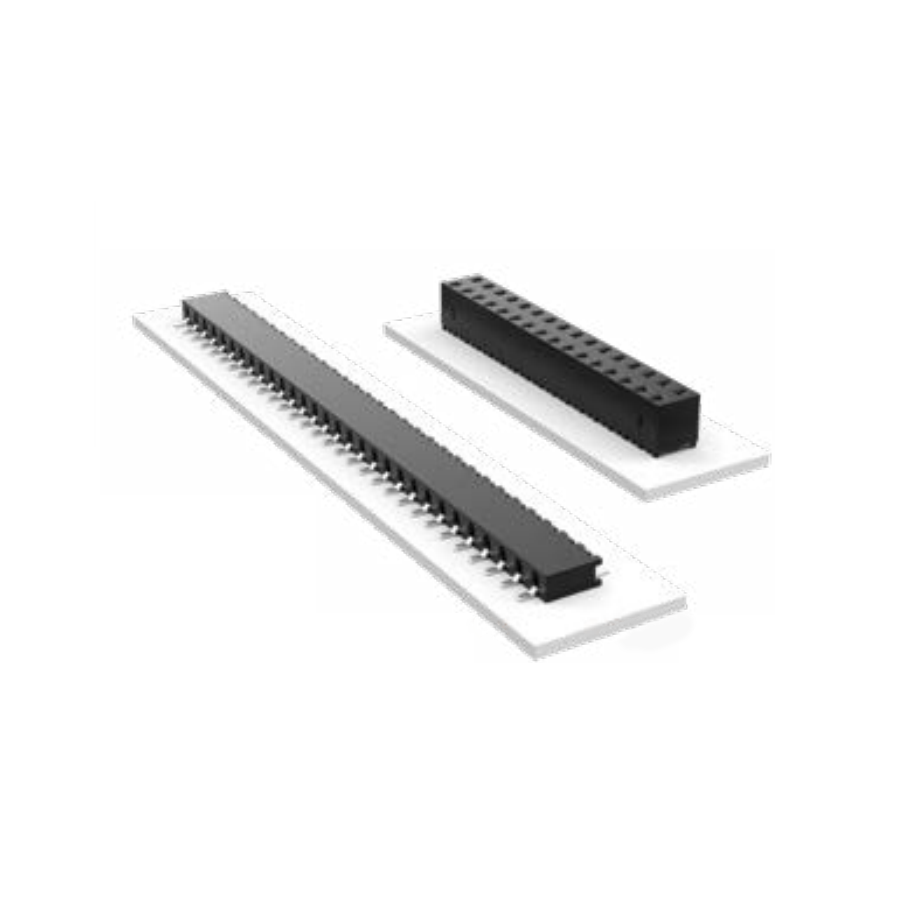

MMS-110-01-F-SV
Manufacturer:
Samtec
Mfr.Part #:
MMS-110-01-F-SV
Datasheet:
Description:
Headers and Wire Housings Through Hole Socket Number of Positions:10 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 20.254 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Max Current Rating | 2 A |
| Orientation | Vertical |
| Gender | Female |
| Number of Contacts | 10 |
| Connector Type | Socket |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Row Spacing | 2 mm |
| Housing Material | Polymer |
| Contact Resistance | 10 mΩ |
| Housing Color | Black |
Stock: 448
Distributors
pcbx
pcbxUnit Price$1.58333
Ext.Price$1.58333
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.58333 | $1.58333 |
| 10 | $1.41123 | $14.11230 |
| 25 | $1.25784 | $31.44600 |
| 50 | $1.12112 | $56.05600 |
| 100 | $0.99926 | $99.92600 |
| 300 | $0.89065 | $267.19500 |
| 500 | $0.79384 | $396.92000 |
| 1000 | $0.70755 | $707.55000 |
| 3000 | $0.63064 | $1891.92000 |
| 5000 | $0.56209 | $2810.45000 |
| 10000 | $0.50099 | $5009.90000 |
