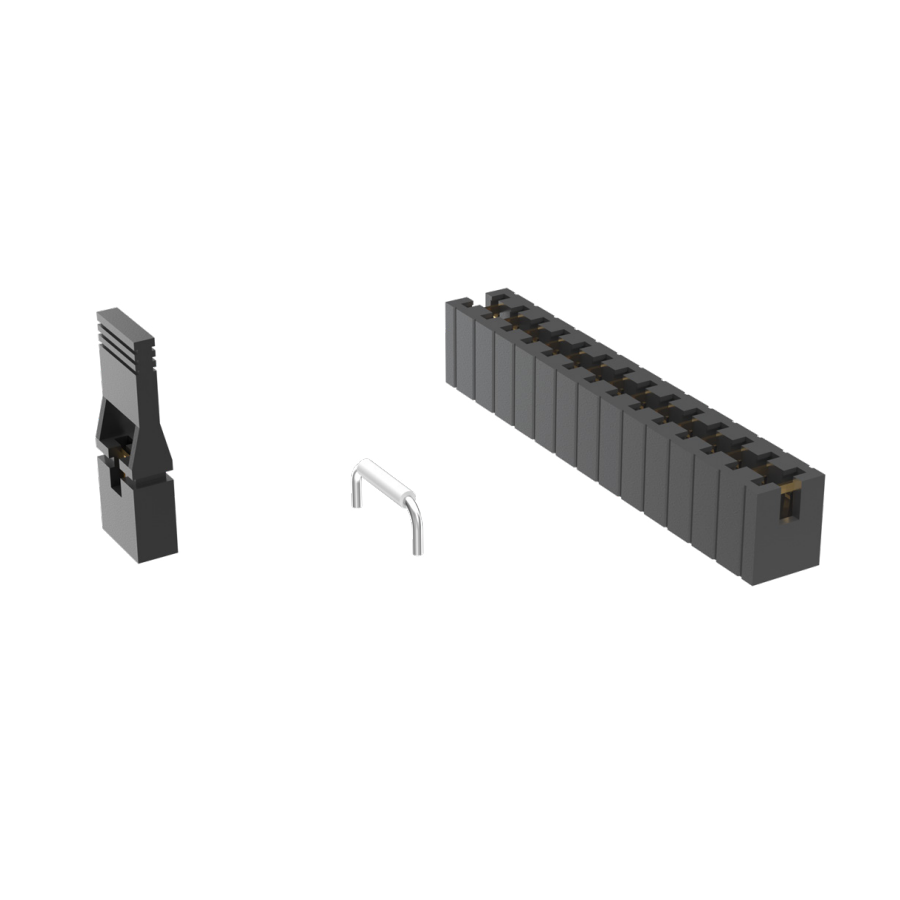

MNT-102-BK-G
Manufacturer:
Samtec
Mfr.Part #:
MNT-102-BK-G
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Number of Positions:4 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 5.08 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | 6.096 mm |
| Packaging | Bulk |
| Depth | 5.08 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Orientation | Straight |
| Color | Black |
| Gender | Socket (Female) |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Contact Resistance | 5 mΩ |
| Max Voltage Rating (AC) | 675 V |
| Housing Color | Black |
Stock: 1760
Distributors
pcbx
pcbxUnit Price$0.62581
Ext.Price$0.62581
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.62581 | $0.62581 |
| 10 | $0.57372 | $5.73720 |
| 25 | $0.52596 | $13.14900 |
| 50 | $0.48218 | $24.10900 |
| 100 | $0.39413 | $39.41300 |
| 300 | $0.36157 | $108.47100 |
| 500 | $0.33171 | $165.85500 |
| 1000 | $0.26674 | $266.74000 |
| 3000 | $0.22852 | $685.56000 |
| 5000 | $0.19578 | $978.90000 |
| 10000 | $0.14448 | $1444.80000 |
