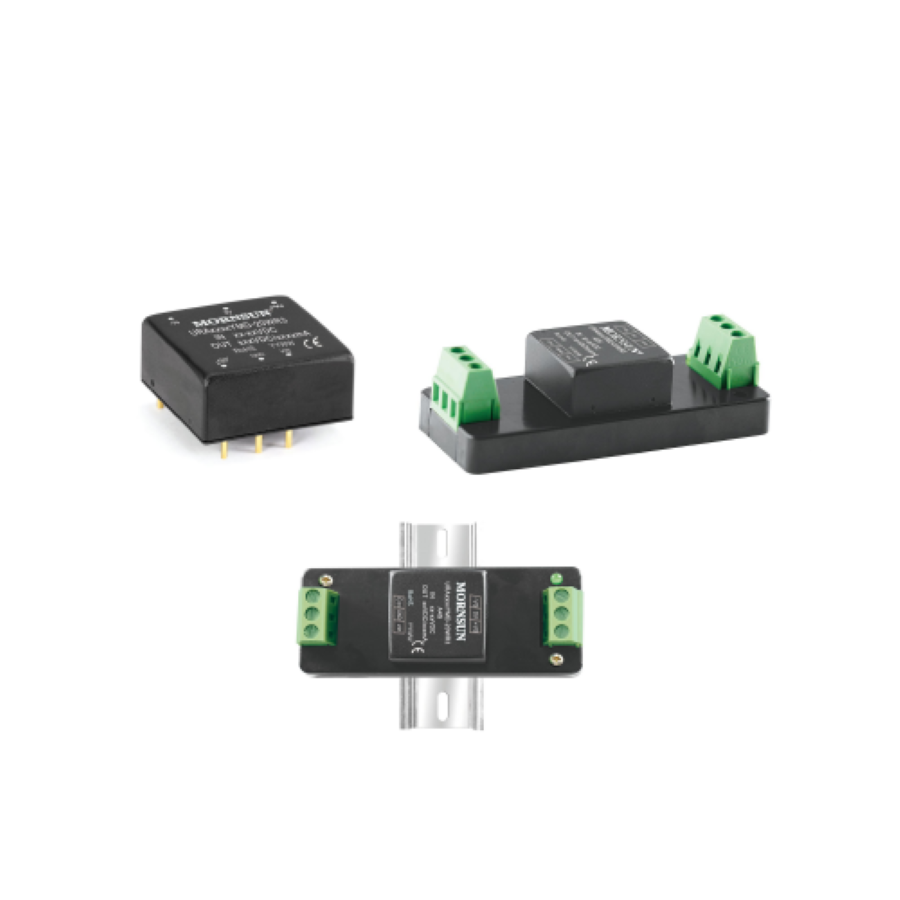

URA2415YMD-20WR3
Manufacturer:
MORNSUN
Mfr.Part #:
URA2415YMD-20WR3
Datasheet:
Description:
DC to DC Converters DIP Through Hole Nominal Input Voltage:24 V Min Input Voltage:9 V Max Input Voltage:40 V 90 %
| Parameter | Value |
|---|---|
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 105 °C |
| Efficiency | 90 % |
| RoHS | Compliant |
| Output Power | 20 W |
| Packaging | Tube |
| Isolation Voltage | 1.5 kV |
| Nominal Input Voltage | 24 V |
| Max Input Voltage | 40 V |
| Output Voltage-Channel 1 | 15 V |
| Output Current-Channel 1 | 667 mA |
| Output Voltage-Channel 2 | -15 V |
| Output Current-Channel 2 | -667 mA |
| Height | 11.7 mm |
| Length | 25.4 mm |
| Width | 25.4 mm |
| Min Input Voltage | 9 V |
Stock: 19
Distributors
pcbx
pcbxUnit Price$12.15948
Ext.Price$12.15948
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $12.15948 | $12.15948 |
| 10 | $11.99458 | $119.94580 |
| 25 | $11.70927 | $292.73175 |
