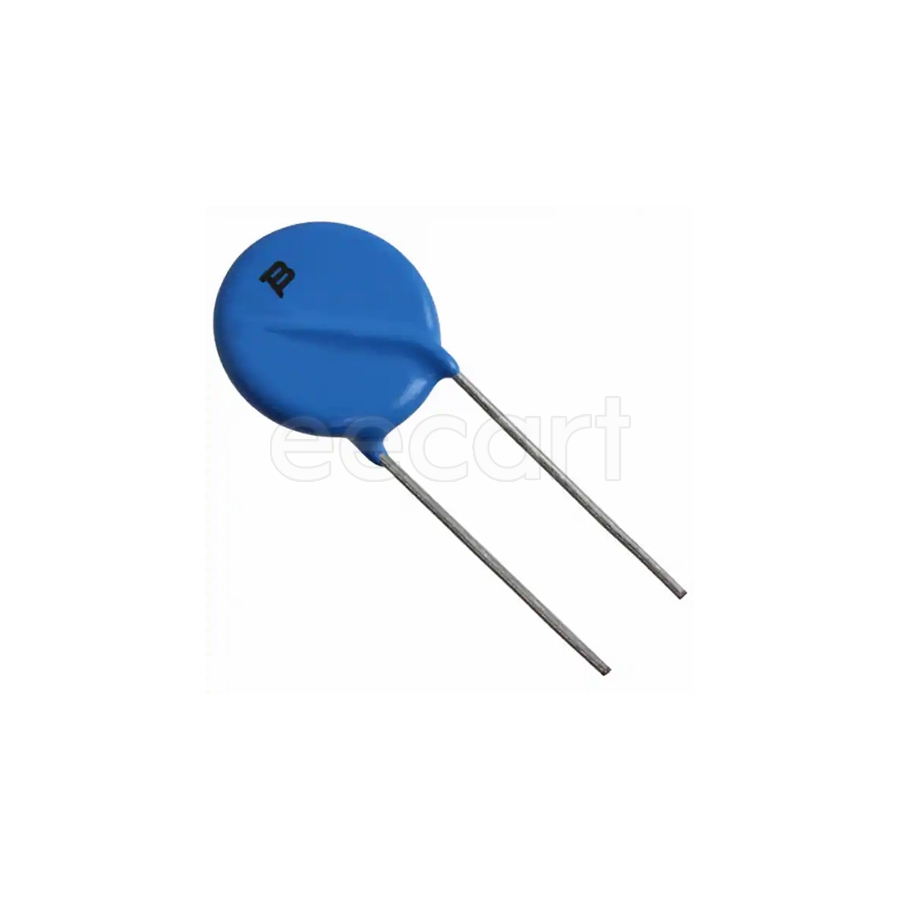

MOV-07D391KTR
Manufacturer:
Bourns
Mfr.Part #:
MOV-07D391KTR
Datasheet:
Description:
Varistors 9.0mmD×4.6mmW×11.10mmH Through Hole 130 pF 25 J Voltage Rating (AC):250 V Voltage Rating (DC):429 V
| Parameter | Value |
|---|---|
| Capacitance | 130 pF |
| Voltage Rating (DC) | 429 V |
| Tolerance | 10 % |
| Width | 6.8 mm |
| Diameter | 7 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 2 |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Max Voltage Rating (DC) | 320 V |
| Number of Circuits | 1 |
| Clamping Voltage | 650 V |
| Varistor Voltage | 390 V |
| Max Voltage Rating (AC) | 250 V |
| Max Surge Current | 1.2 kA |
| Energy | 25 J |
| Clamping Current | 10 A |
| Max Varistor Voltage | 429 V |
| Min Varistor Voltage | 351 V |
| Schedule B | 8533400080 |
| Surge Energy Rating | 25 J |
| Peak Surge Current | 1.2 kA |
Stock: 15
Distributors
pcbx
pcbxUnit Price$0.07142
Ext.Price$0.07142
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.07142 | $0.07142 |
| 10 | $0.07060 | $0.70600 |
| 50 | $0.06979 | $3.48950 |
| 100 | $0.06904 | $6.90400 |
| 500 | $0.06829 | $34.14500 |
