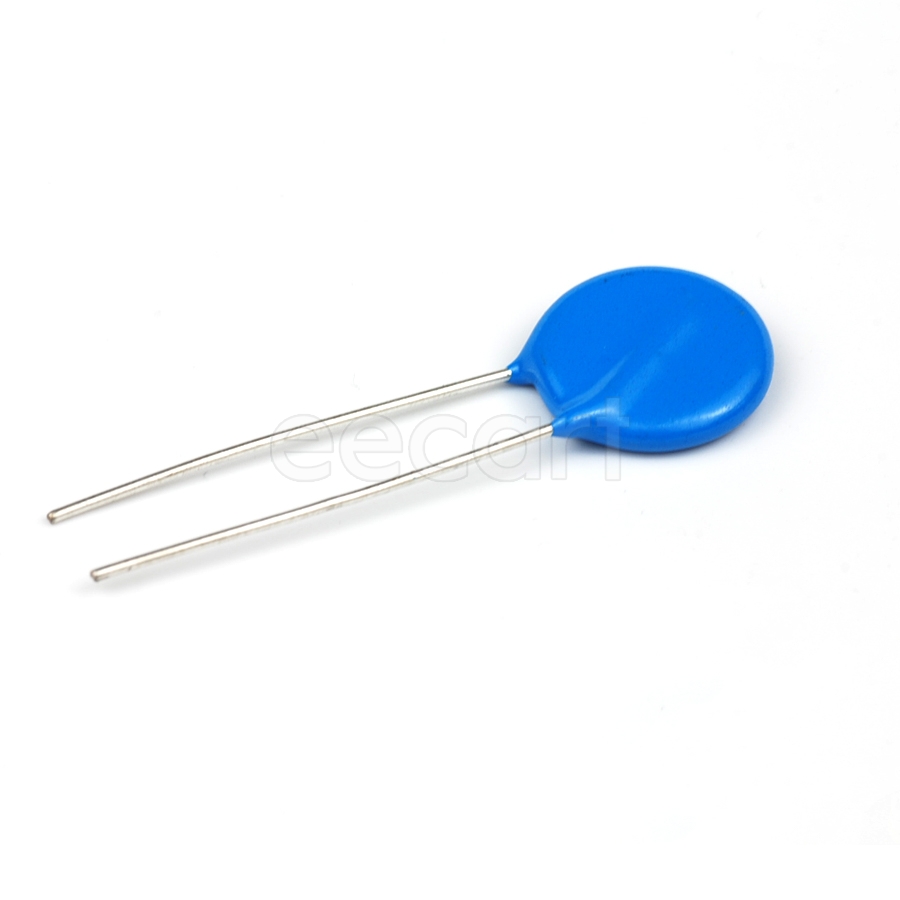

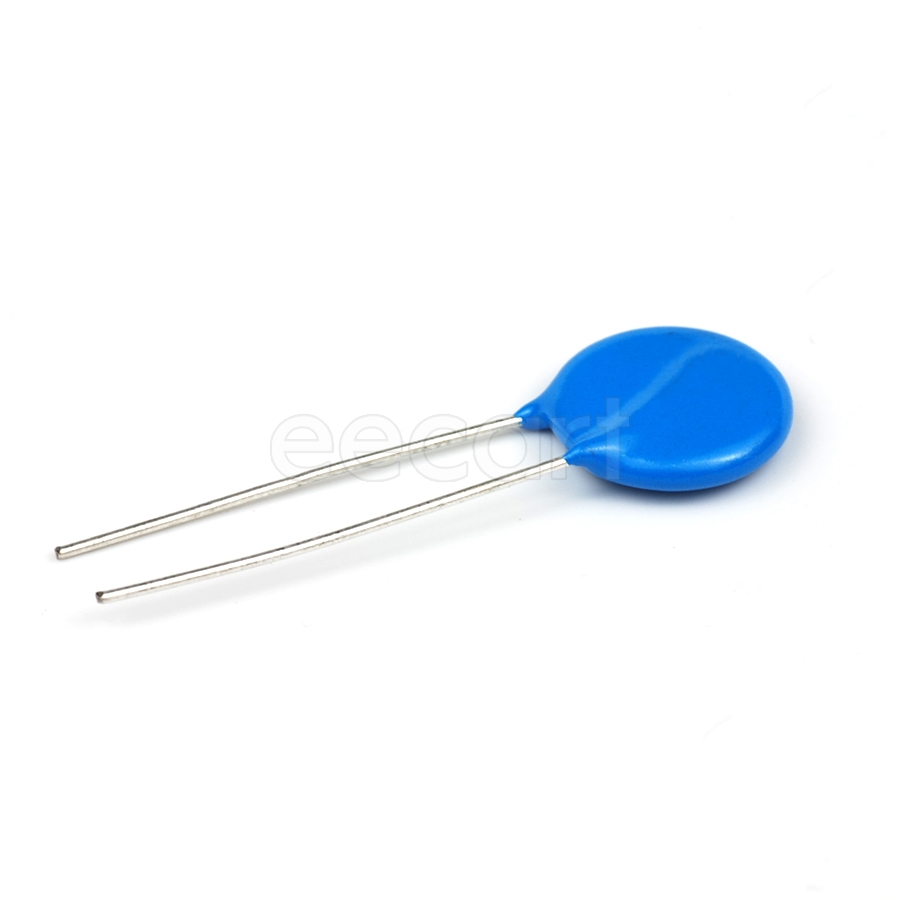

MOV-14D271K
Manufacturer:
Bourns
Mfr.Part #:
MOV-14D271K
Datasheet:
Description:
Varistors 16.50mmL×4.20mmW×20.00mmH Through Hole 740 pF 70 J Voltage Rating (AC):175 V Voltage Rating (DC):225 V
| Parameter | Value |
|---|---|
| Capacitance | 740 pF |
| Voltage Rating (DC) | 225 V |
| Tolerance | 10 % |
| Diameter | 14 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 175 V |
| Power Rating | 600 mW |
| Packaging | Bulk |
| Thickness | 4.2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 7.5 mm |
| REACH SVHC | No SVHC |
| Weight | 3 g |
| Current Rating | 50 A |
| Max Voltage Rating (DC) | 225 V |
| Number of Circuits | 1 |
| Clamping Voltage | 455 V |
| Varistor Voltage | 270 V |
| Max Voltage Rating (AC) | 175 V |
| Max Surge Current | 4.5 kA |
| Energy | 70 J |
| Clamping Current | 50 A |
| Max Varistor Voltage | 297 V |
| Min Varistor Voltage | 243 V |
| Schedule B | 8533400080 |
| Surge Energy Rating | 70 J |
| Peak Surge Current | 4.5 kA |
Stock: 604
Distributors
pcbx
pcbxUnit Price$0.15645
Ext.Price$0.15645
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.15645 | $0.15645 |
| 10 | $0.09063 | $0.90630 |
| 50 | $0.08489 | $4.24450 |
| 100 | $0.07951 | $7.95100 |
| 500 | $0.07070 | $35.35000 |
| 1000 | $0.06922 | $69.22000 |
| 3000 | $0.06777 | $203.31000 |
| 5000 | $0.06635 | $331.75000 |
