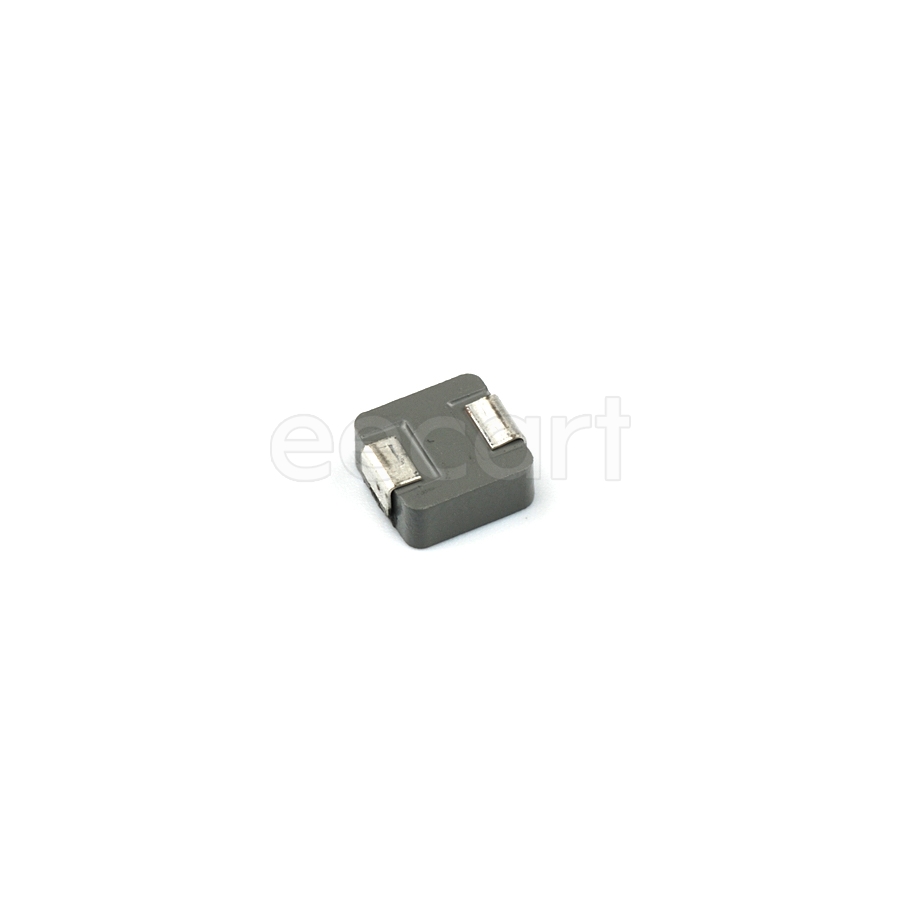

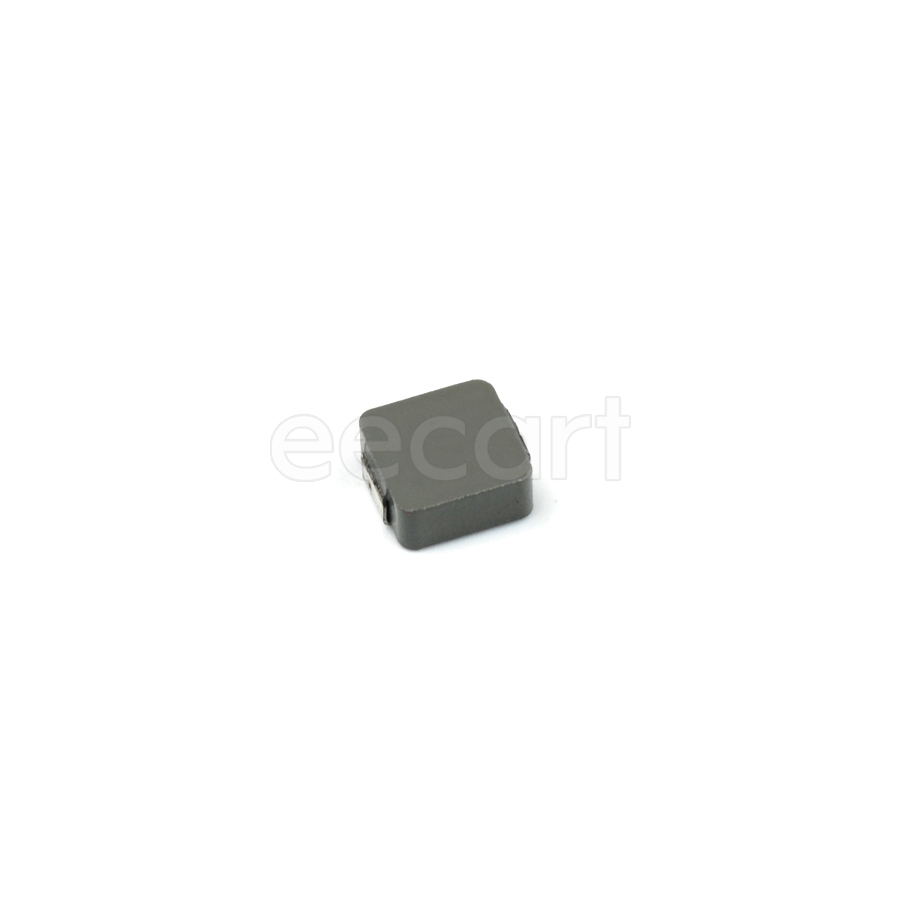

MPLCG0630L1R5
Manufacturer:
KEMET
Mfr.Part #:
MPLCG0630L1R5
Datasheet:
Description:
Fixed Inductors 7.50mmL×6.70mmW×3.00mmH PCB Mount 1.5 µH 20 % 9.9 A 15 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3 mm |
| Length | 7.493 mm |
| Width | 6.7 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 120 °C |
| Min Operating Temperature | -20 °C |
| Height | 3 mm |
| Packaging | Reel |
| Depth | 6.7 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Type | Wirewound |
| Current Rating | 9.9 A |
| DC Resistance (DCR) | 15 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 1.5 µH |
| RMS Current (Irms) | 9.9 A |
| inductance tolerance | 20 % |
| Max DC Current | 9.9 A |
| Saturation Current | 8.3 A |
| Schedule B | 8504500000 |
Stock: 2979
Distributors
pcbx
pcbxUnit Price$0.92589
Ext.Price$0.92589
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.92589 | $0.92589 |
| 10 | $0.77627 | $7.76270 |
| 25 | $0.73866 | $18.46650 |
| 50 | $0.65867 | $32.93350 |
| 100 | $0.58734 | $58.73400 |
| 300 | $0.56142 | $168.42600 |
| 500 | $0.53664 | $268.32000 |
| 1000 | $0.51296 | $512.96000 |
| 3000 | $0.43773 | $1313.19000 |
