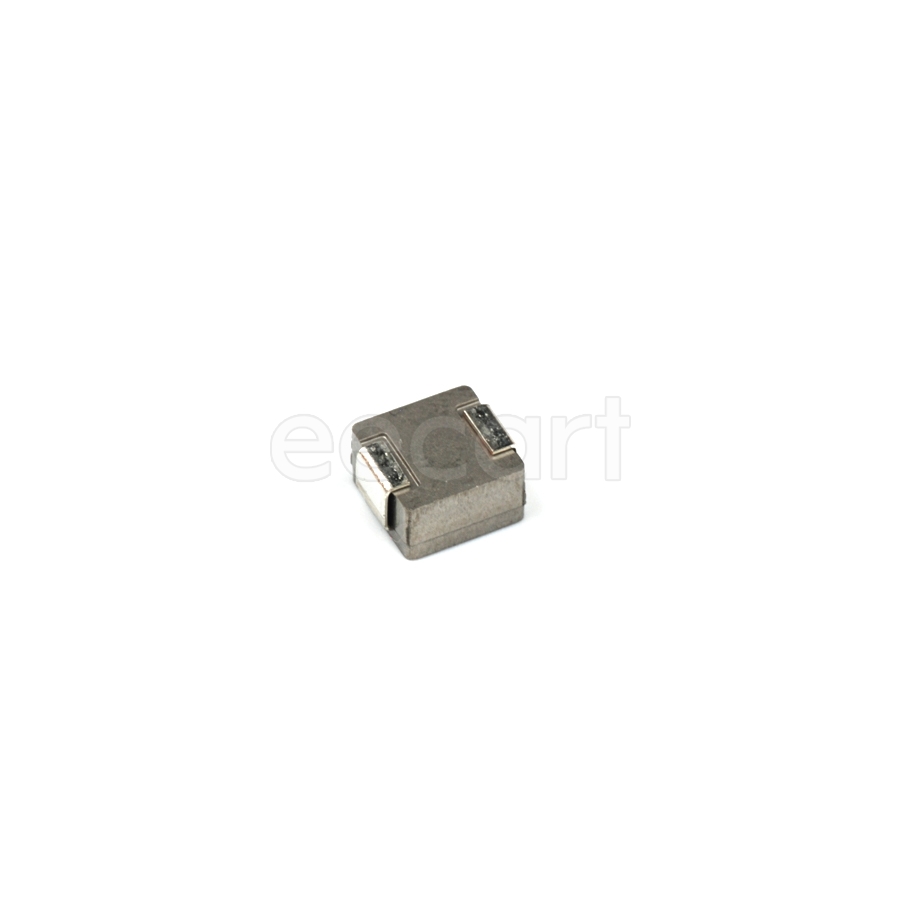

MPLCH0740L2R2
Manufacturer:
KEMET
Mfr.Part #:
MPLCH0740L2R2
Datasheet:
Description:
Fixed Inductors 7.80mmL×6.70mmW×4.00mmH SMD/SMT 2.2 µH 20 % 9.3 A 13 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 4 mm |
| Length | 7.8 mm |
| Width | 6.7056 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 120 °C |
| Min Operating Temperature | -20 °C |
| Height | 4 mm |
| Packaging | Reel |
| Depth | 6.9 mm |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Type | Wirewound |
| Current Rating | 9.3 A |
| DC Resistance (DCR) | 13 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 2.2 µH |
| RMS Current (Irms) | 9.3 A |
| inductance tolerance | 20 % |
| Max DC Current | 9.3 A |
| DC Current | 9.3 A |
| Saturation Current | 9 A |
