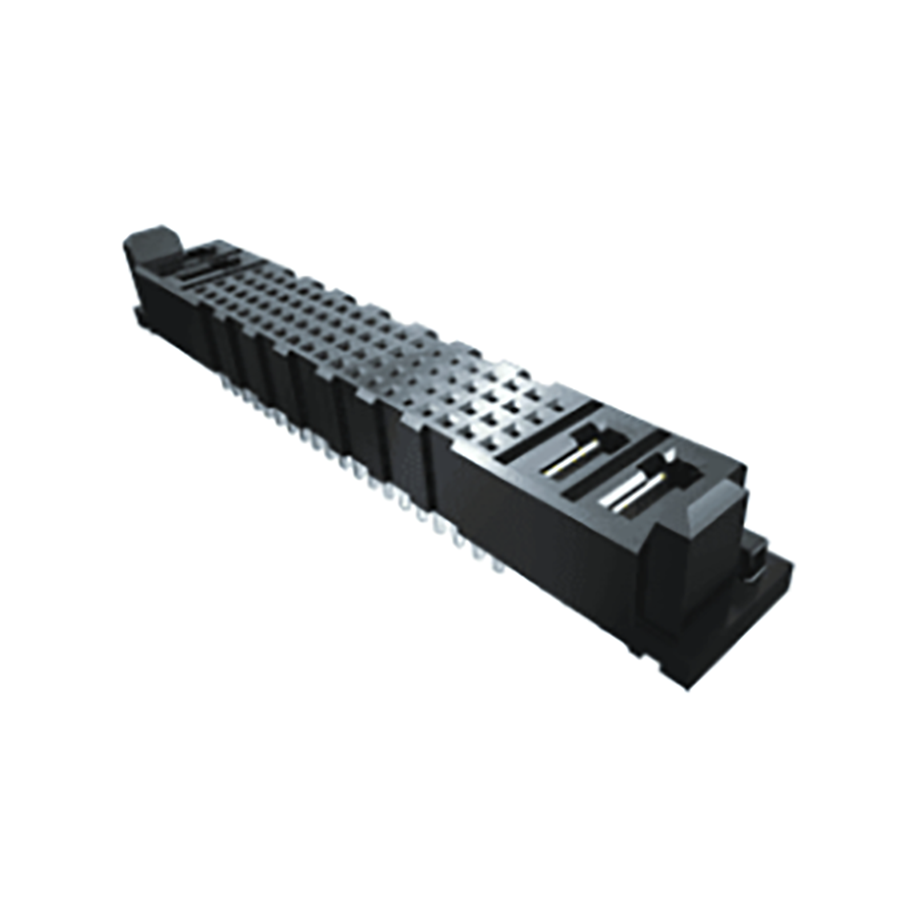

MPSC-01-80-01-7.70-01-L-V
Manufacturer:
Samtec
Mfr.Part #:
MPSC-01-80-01-7.70-01-L-V
Datasheet:
Description:
Power Connectors Through Hole Current Rating:41.7 A Voltage Rating:424 V Receptacle Socket (Female)
| Parameter | Value |
|---|---|
| Length | 59.44 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tray |
| Voltage Rating | 424 V |
| Depth | 10.16 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2 mm |
| Number of Terminals | 92 |
| Current Rating | 41.7 A |
| Orientation | Straight |
| Gender | Socket (Female) |
| Number of Contacts | 82 |
| Connector Type | Receptacle |
| Number of Positions | 82 |
| Number of Rows | 4 |
| Row Spacing | 2 mm |
| Housing Material | Polymer |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 300 V |
Stock: 64
Distributors
pcbx
pcbxUnit Price$7.14636
Ext.Price$7.14636
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $7.14636 | $7.14636 |
| 10 | $6.60262 | $66.02620 |
| 25 | $6.24526 | $156.13150 |
| 50 | $5.69989 | $284.99450 |
| 100 | $5.20215 | $520.21500 |
| 300 | $4.74787 | $1424.36100 |
| 500 | $4.33326 | $2166.63000 |
| 1000 | $3.95490 | $3954.90000 |
