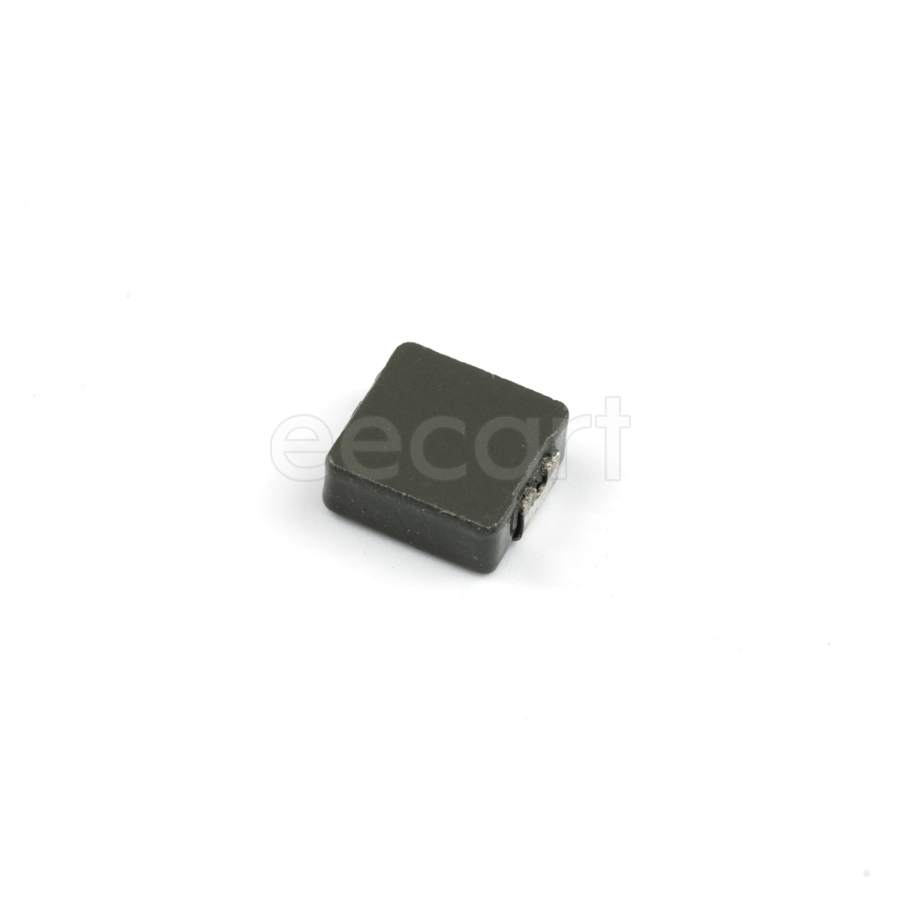

MPX1D0830L150
Manufacturer:
KEMET
Mfr.Part #:
MPX1D0830L150
Datasheet:
Description:
Fixed Inductors 8.65mmL×8.00mmW×3.00mmH SMD/SMT 15 µH 20 % 6.5 A 94.6 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3 mm |
| Length | 8.65 mm |
| Width | 8 mm |
| Max Operating Temperature | 155 °C |
| Min Operating Temperature | -55 °C |
| Resistance | 94.6 mΩ |
| Height | 3 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Self Resonant Frequency | 11 MHz |
| Type | Wirewound |
| DC Resistance (DCR) | 94.6 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 15 µH |
| Core Material | Metal Composite |
| inductance tolerance | 20 % |
| Saturation Current | 6.5 A |
| Schedule B | 8504500000 |
| Current Rating | 6.5 A |
