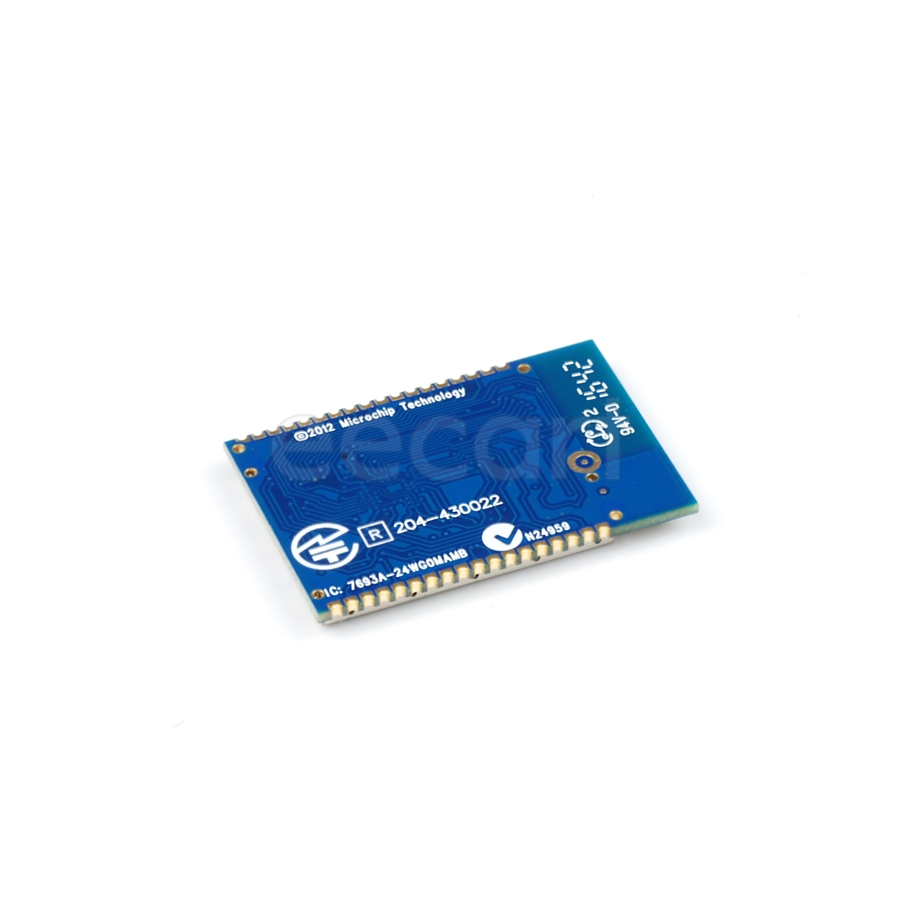

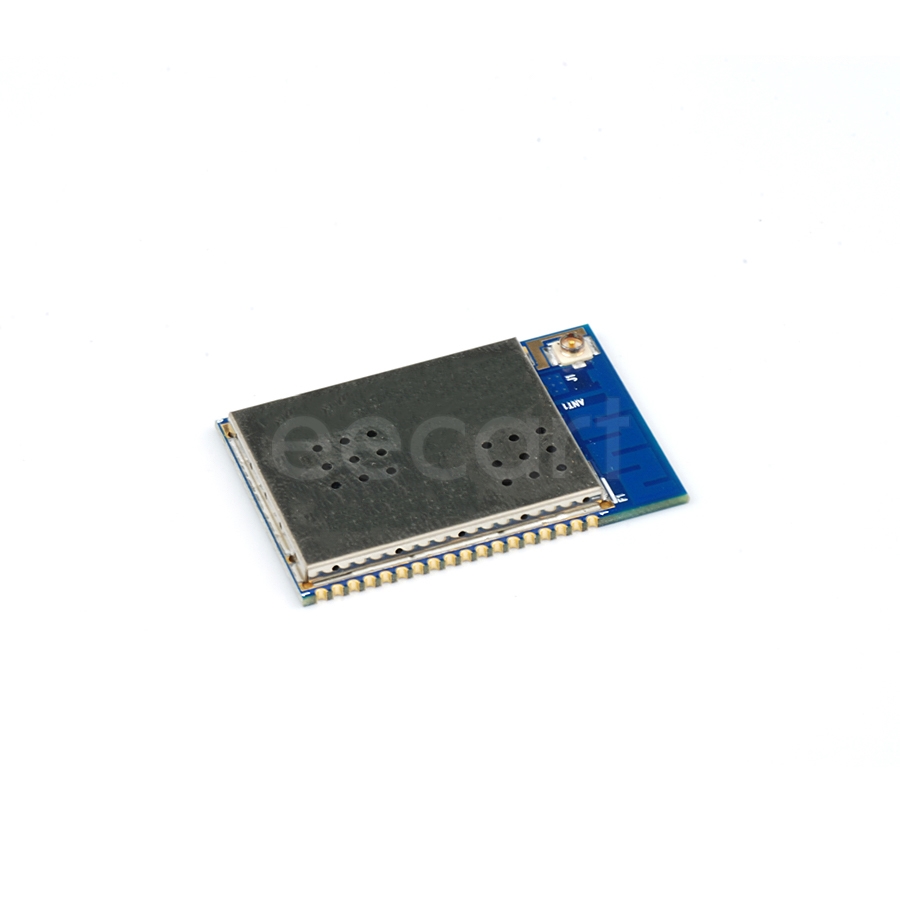

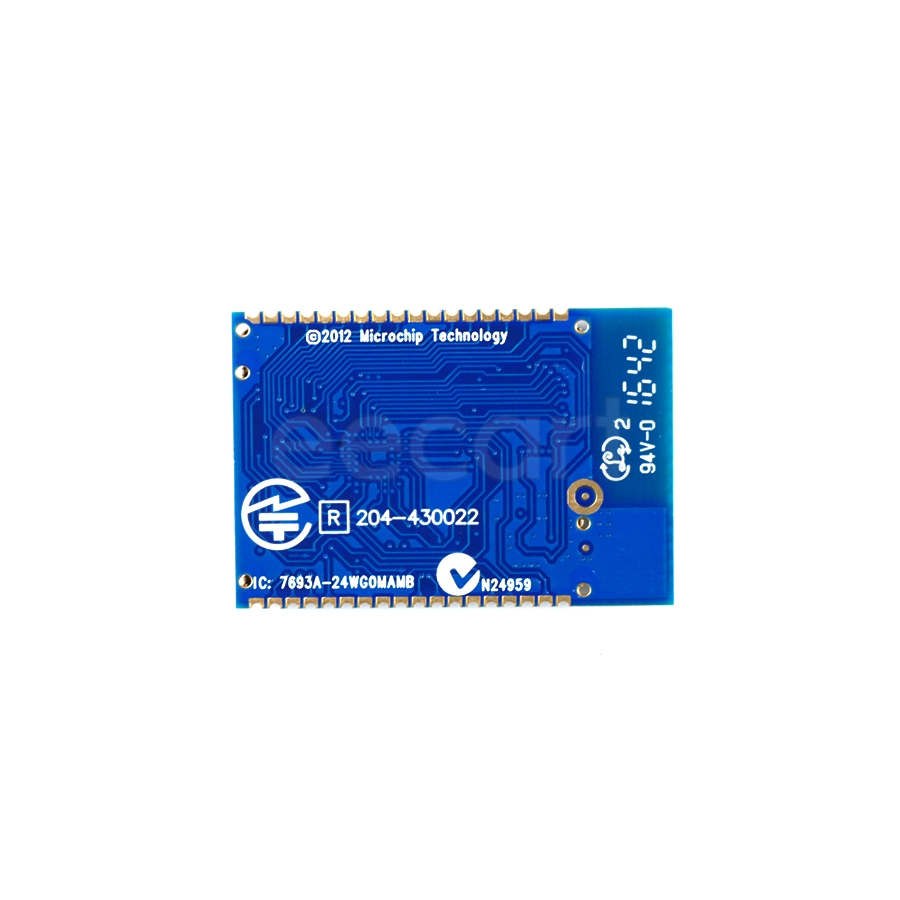

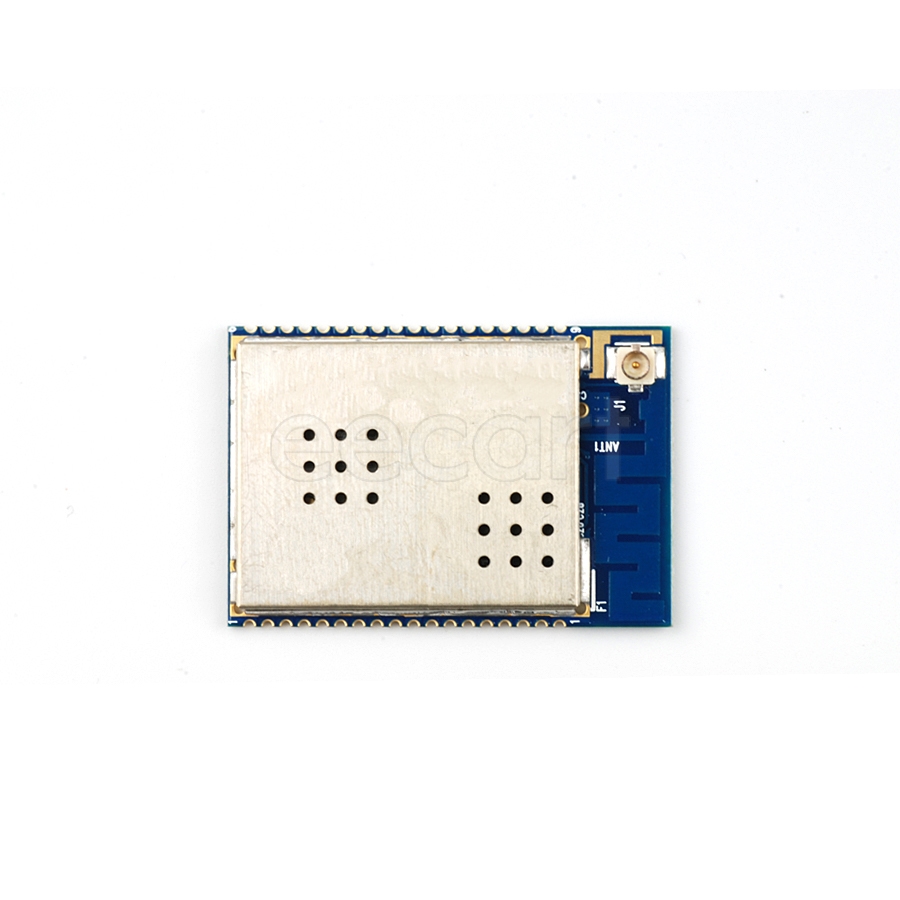

MRF24WG0MB-I/RM
Manufacturer:
Microchip
Mfr.Part #:
MRF24WG0MB-I/RM
Datasheet:
Description:
RF - Transceiver Modules and Modems SMD-36 Module SMD/SMT WiFi 802.11 b/g 2.4 GHz
| Parameter | Value |
|---|---|
| Length | 31 mm |
| Width | 21 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 36 |
| Height | 2.7 mm |
| Packaging | Tray |
| Depth | 21 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Frequency | 2.4 GHz |
| Interface | SPI |
| Lifecycle Status | NRND (Last Updated: 9 months ago) |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 2.8 V |
| Number of Channels | 11 |
| Data Rate | 54 Mbps |
| Current - Receiving | 156 mA |
| Current - Transmitting | 240 mA |
| Max Frequency | 2.483 GHz |
| Output Power | 18 dBm |
| Supply Voltage | 2.8 V to 3.6 V |
| Sensitivity (dBm) | -95 dBm |
| Standard | WiFi |
| Protocol | 802.11 b/g |
