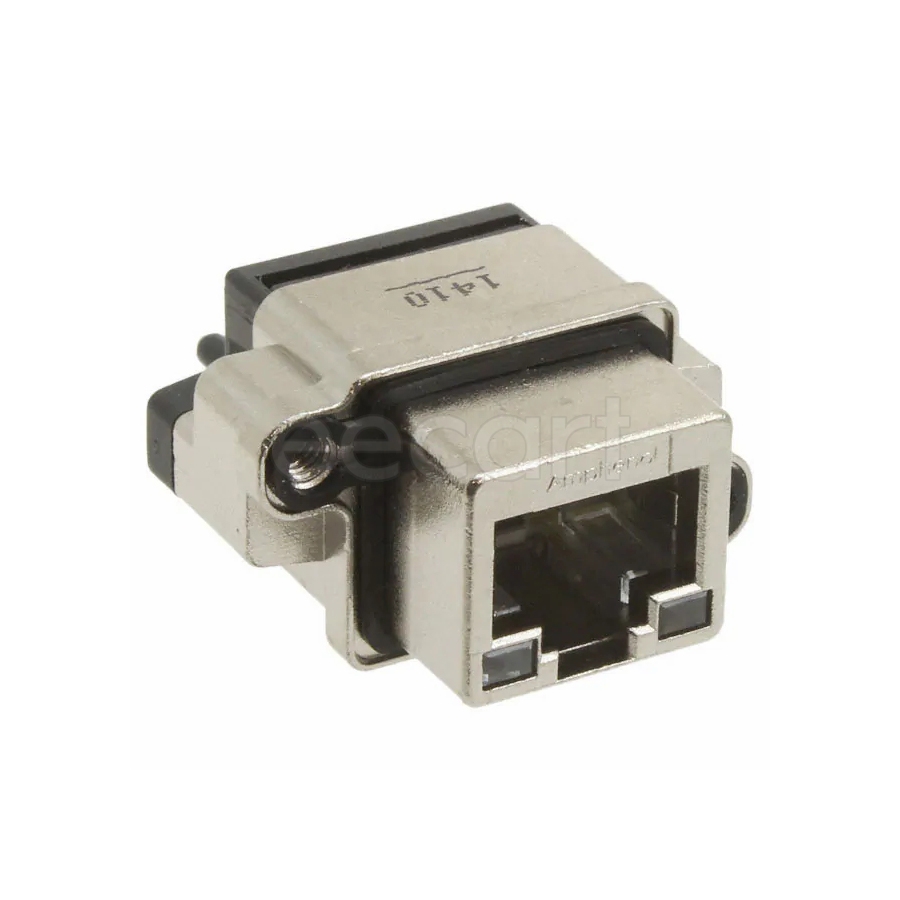

MRJR54810F
Manufacturer:
Amphenol
Mfr.Part #:
MRJR54810F
Datasheet:
Description:
Modular / Ethernet Connectors Through Hole RJ45 Receptacle Current Rating:1.5 A Voltage Rating:2.5 V
| Parameter | Value |
|---|---|
| Length | 30.3 mm |
| Termination | Solder |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Box |
| Voltage Rating | 2.5 V |
| Depth | 18 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Ratings | Dust Tight, IP67, Waterproof |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 1.5 A |
| Max Current Rating | 1.5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Color | Green, Yellow |
| Gender | Receptacle |
| Shielding | Unshielded |
| Number of Contacts | 8 |
| Direction(Counting Sequence) | User Selectable |
| Connector Type | RJ45 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Row Spacing | |
| Insulation Material | |
| Housing Material | PC |
| Number of Ports | 1 |
| Fastening Type | |
| Contact Style | |
| Contact Resistance | 30 mΩ |
| Housing Color | Black |
| Contact Mating Length | |
| Number of Positions Loaded | 8 |
| Contact Shape | |
| IP Rating(Ingress Protection) | IP67 - Dust Tight, Waterproof |
| Mounting Angle | Straight |
| Performance Category | |
| Accessory Type | |
| USOC Codes | RJ45 |
| Number of Positions/Contacts | 8P8C |
Stock: 637
Distributors
pcbx
pcbxUnit Price$10.32422
Ext.Price$10.32422
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $10.32422 | $10.32422 |
| 10 | $8.77536 | $87.75360 |
| 25 | $8.29963 | $207.49075 |
| 50 | $7.84969 | $392.48450 |
| 100 | $7.42414 | $742.41400 |
| 300 | $7.02166 | $2106.49800 |
| 500 | $6.64100 | $3320.50000 |
