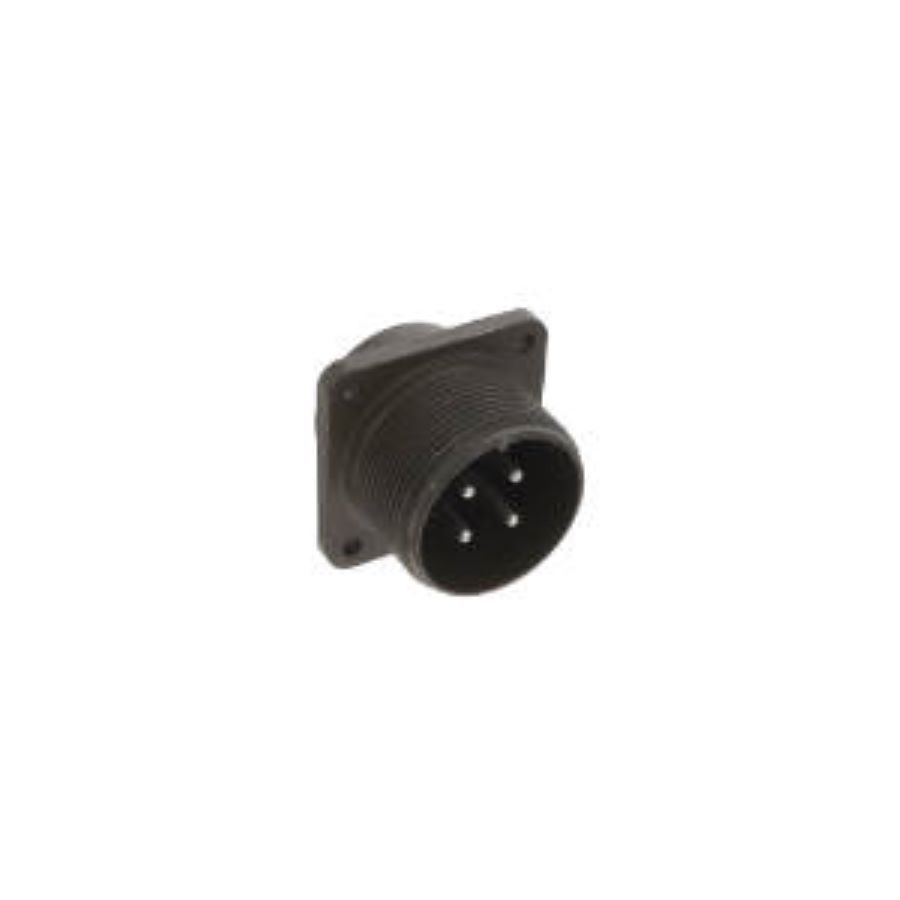

MS3102E20-4P
Manufacturer:
Amphenol
Mfr.Part #:
MS3102E20-4P
Datasheet:
Description:
Circular Connectors Panel Mount Pin (Male) Solder Receptacle, Male Pins
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 1.25 kV |
| Length | 38.91 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 720 mV |
| Material | Ferrite |
| Packaging | Bulk |
| Voltage Rating | 1250 V (1.25 kV) |
| Depth | 38.1 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold, Silver |
| Contact Material(Contact Finish) | Brass, Copper |
| Current Rating | 23 A |
| Orientation | N (Normal) |
| Military Standard | MIL-DTL-5015 |
| Color | Olive Drab |
| Gender | Female |
| Number of Contacts | 4 |
| Body Material | Aluminium |
| Connector Type | Receptacle, Male Pins |
| Number of Positions | 4 |
| Fastening Type | Threaded |
| Contact Style | Pin |
| Wire Gauge (Max) | 14 AWG |
| Wire Gauge (Min) | 12 AWG |
| Plating | Cadmium, Chromate |
| Body Plating | Cadmium |
| Contact Gender | Pin (Male) |
| Shell Material | Aluminum Alloy |
| IP Rating(Ingress Protection) | Environment Resistant |
Stock: 23
Distributors
pcbx
pcbxUnit Price$8.97420
Ext.Price$8.97420
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $8.97420 | $8.97420 |
| 10 | $7.54732 | $75.47320 |
| 25 | $7.00871 | $175.21775 |
| 50 | $6.43334 | $321.66700 |
| 100 | $6.22645 | $622.64500 |
