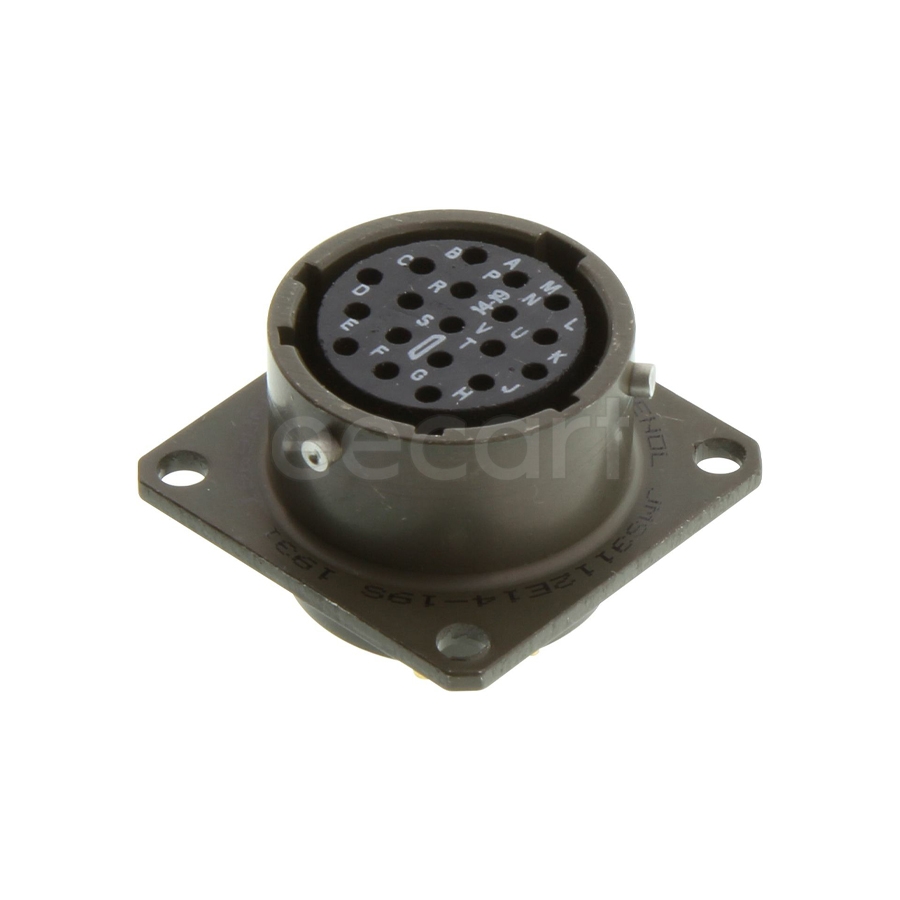

MS3112E14-19S
Manufacturer:
Amphenol
Mfr.Part #:
MS3112E14-19S
Datasheet:
Description:
Circular Connectors Panel Female Solder Circular, Receptacle, Socket
| Parameter | Value |
|---|---|
| Length | 24.33 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 600 V |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 28.57 mm |
| Radiation Hardening | No |
| RoHS | Non-Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Current Rating | 5 A |
| Approvals | UL |
| Orientation | Straight |
| Military Standard | MIL-C-26482 |
| Color | Olive Drab |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 19 |
| Body Material | Aluminium |
| Connector Type | Circular, Receptacle, Socket |
| Number of Positions | 19 |
| Housing Material | Aluminium |
| Fastening Type | Bayonet |
| Contact Style | Socket |
| Wire Gauge (Max) | 24 AWG |
| Wire Gauge (Min) | 20 AWG |
| Plating | Cadmium, Chromate |
| Contact Gender | Female |
| Shell Material | Aluminium |
Stock: 14
Distributors
pcbx
pcbxUnit Price$47.14851
Ext.Price$47.14851
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $47.14851 | $47.14851 |
| 10 | $46.67317 | $466.73170 |
| 25 | $46.20980 | $1155.24500 |
