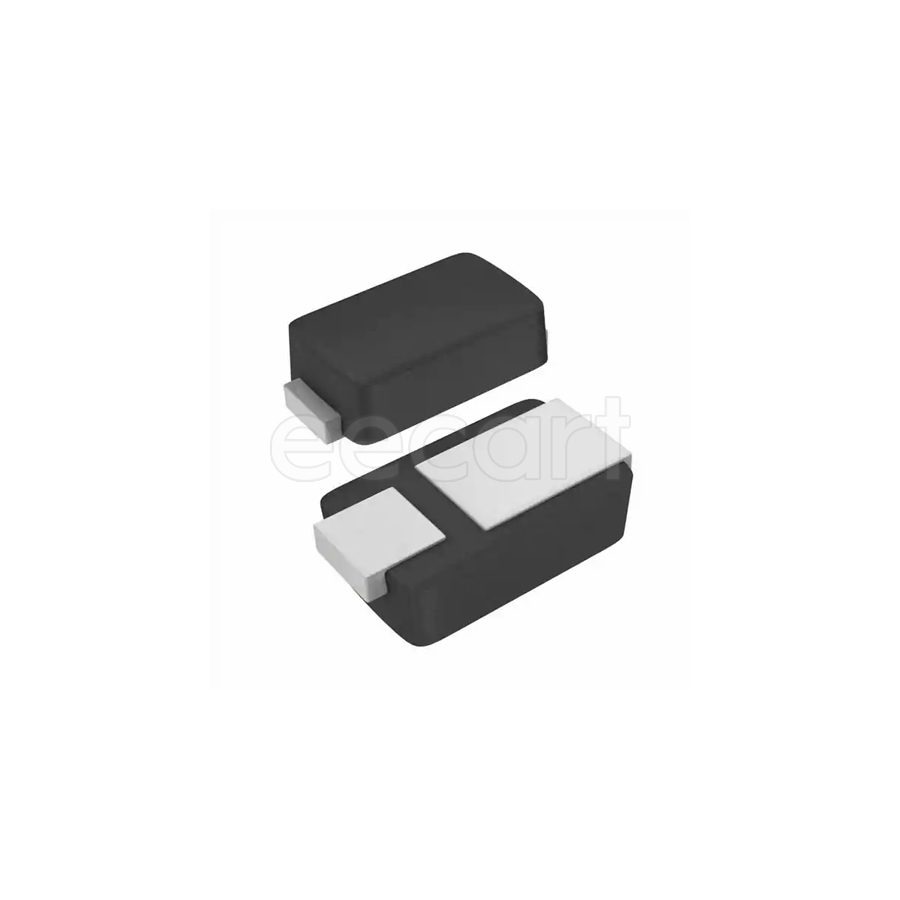

MSP3V3-M3/89A
Manufacturer:
Vishay
Mfr.Part #:
MSP3V3-M3/89A
Datasheet:
Description:
TVS Diodes DO219AD-2 SMD/SMT Working Voltage:3.3 V Breakdown Voltage:4.1 V Clamping Voltage:11.5 V Peak Pulse Power:150 W Polarity:Unidirectional
| Parameter | Value |
|---|---|
| Length | 2.3 mm |
| Width | 1.4 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Leakage Current | 200 µA |
| Composition(Kit Type) | Zener |
| Height | 730 µm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Unidirectional |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Number of Elements | 1 |
| Operating Supply Voltage | 3.3 V |
| Max Power Dissipation | 1 W |
| Power Dissipation | 150 W |
| Peak Pulse Current | 87 A |
| Number of Channels | 1 |
| Breakdown Voltage | 4.1 V |
| Max Reverse Leakage Current | 200 µA |
| Element Configuration | Single |
| Direction(Counting Sequence) | Unidirectional |
| Min Breakdown Voltage | 4.1 V |
| Reverse Standoff Voltage | 3.3 V |
| Clamping Voltage | 11.5 V |
| Power Line Protection | No |
| Number of Unidirectional Channels | 1 |
| Max Surge Current | 75 A |
| Reverse Breakdown Voltage | 4.1 V |
| ESD Protection | Yes |
| Test Current | 1 mA |
| Max Junction Temperature (Tj) | 150 °C |
| Max Breakdown Voltage | 5.1 V |
| Schedule B | 8541100080 |
| Peak Pulse Power | 150 W |
| Working Voltage | 3.3 V |
| Voltage ESD Air Gap | 15 kV |
| Voltage ESD Contact | 8 kV |
Stock: 31858
Distributors
pcbx
pcbxUnit Price$0.13632
Ext.Price$0.13632
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.13632 | $0.13632 |
| 10 | $0.06816 | $0.68160 |
| 50 | $0.06095 | $3.04750 |
| 100 | $0.05451 | $5.45100 |
| 500 | $0.04785 | $23.92500 |
| 1000 | $0.04200 | $42.00000 |
| 3000 | $0.03881 | $116.43000 |
| 5000 | $0.03587 | $179.35000 |
