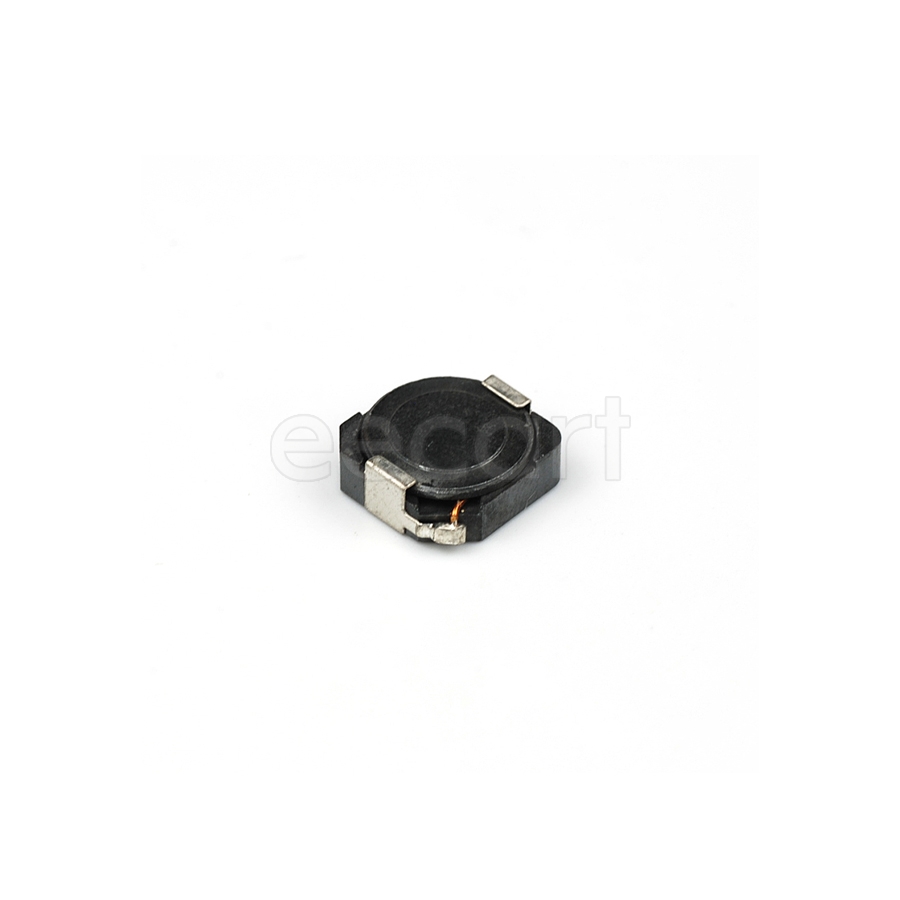

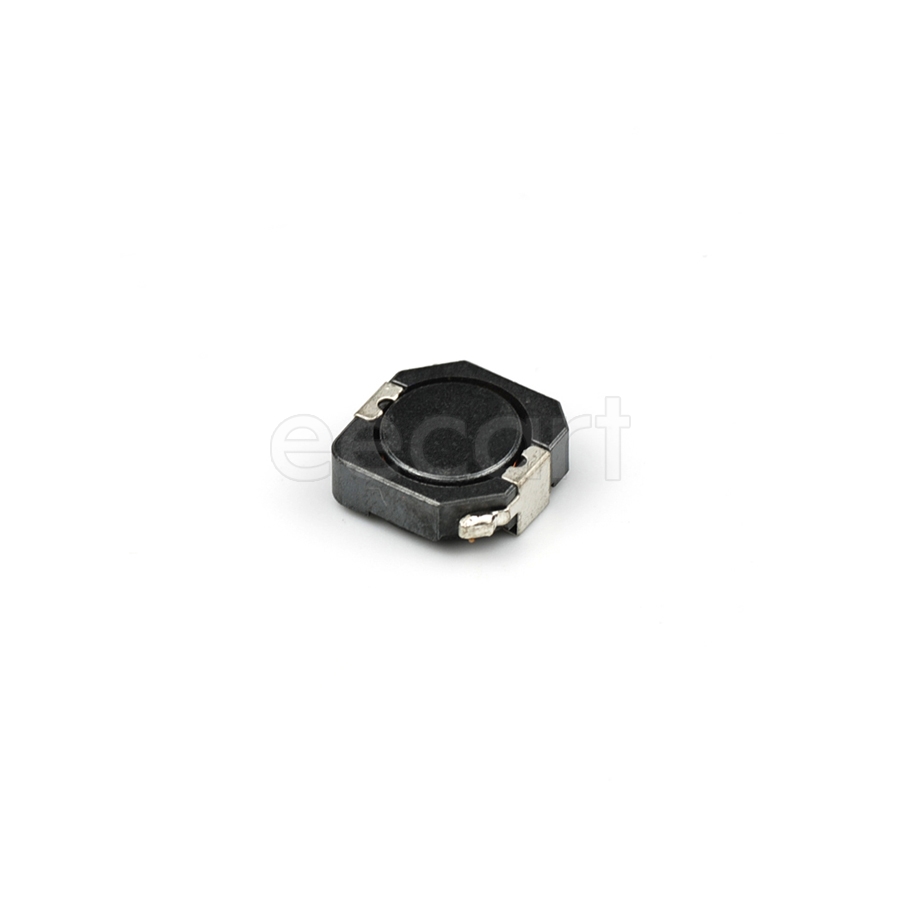

MSS1038-103NLC
Manufacturer:
Coilcraft
Mfr.Part #:
MSS1038-103NLC
Datasheet:
Description:
Fixed Inductors 10.00mmL×10.2mmW×3.80mmH SMD/SMT 10 µH 30 % 4.05 A 35 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Length | 10.5 mm |
| Width | 10.2 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 4 mm |
| Packaging | Reel |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 29 MHz |
| Type | Wirewound |
| Current Rating | 4.05 A |
| DC Resistance (DCR) | 35 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 1 day ago) |
| Shielding | Shielded |
| Inductance | 10 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 4.05 A |
| inductance tolerance | 30 % |
| Max DC Current | 4.05 A |
| Saturation Current | 4.52 A |
