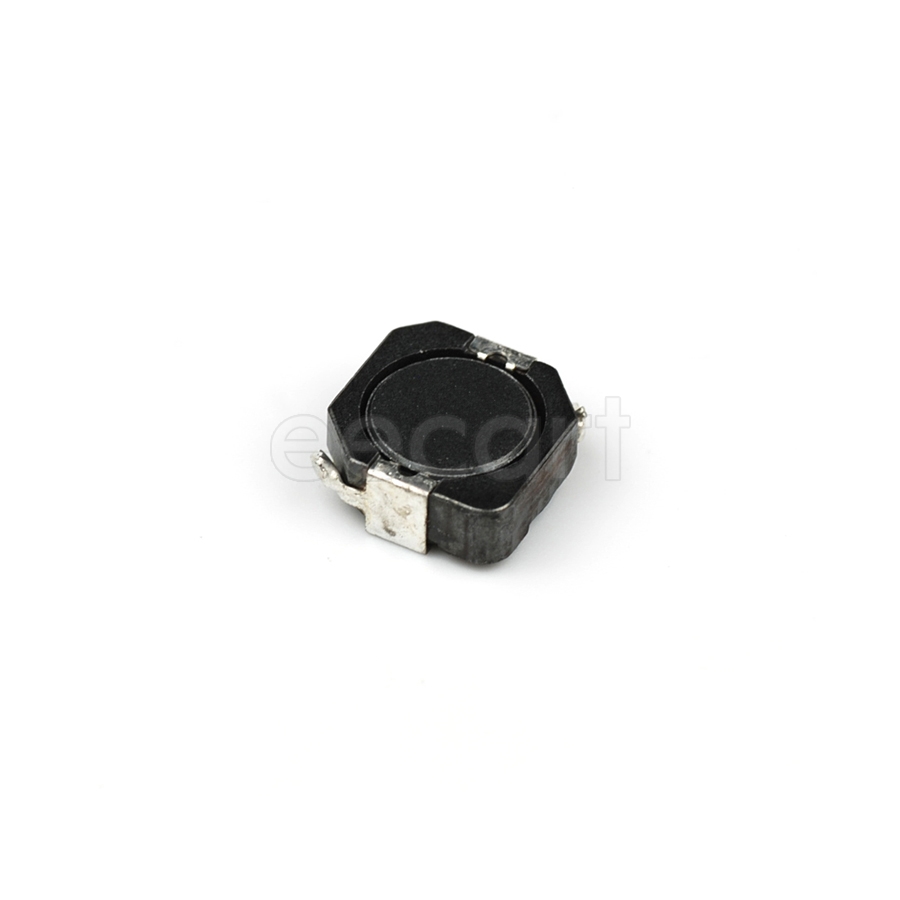

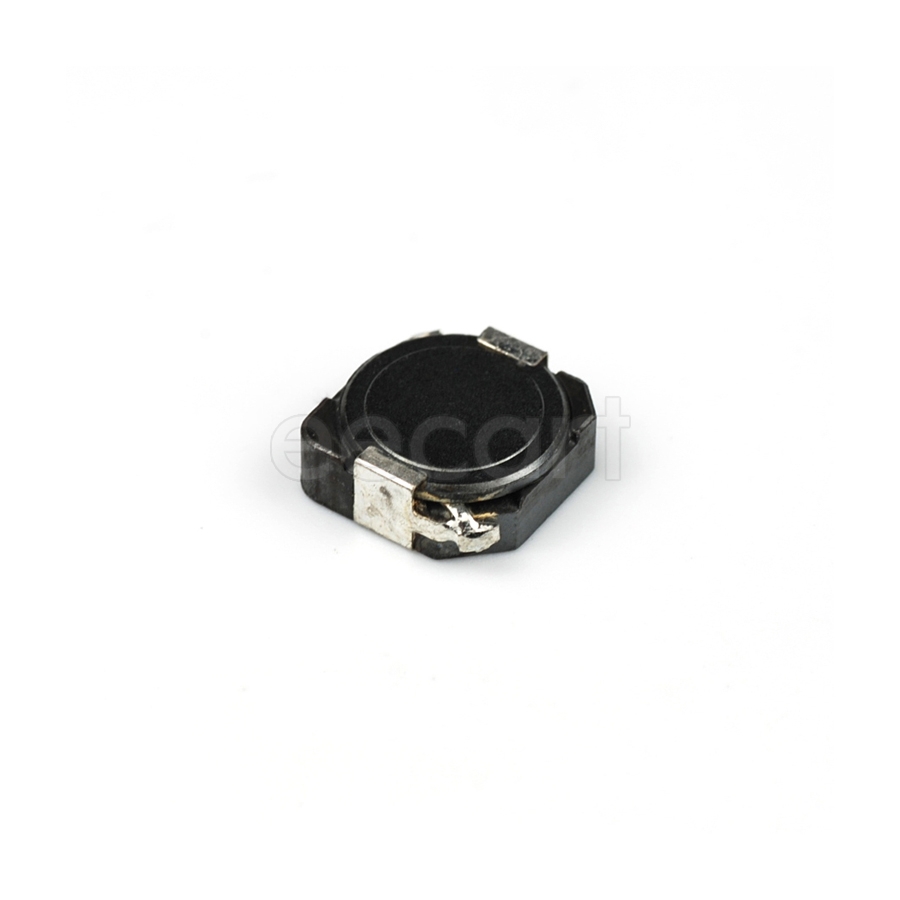

MSS1048T-332NLB
Manufacturer:
Coilcraft
Mfr.Part #:
MSS1048T-332NLB
Datasheet:
Description:
Fixed Inductors 10.50mmL×10.30mmW×5.10mmH SMD/SMT 3.3 µH 30 % 7.22 A 10.1 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Length | 10.5 mm |
| Width | 10.3 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Height | 5.1 mm |
| Packaging | Reel |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 50 MHz |
| Current Rating | 7.22 A |
| DC Resistance (DCR) | 10.1 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 1 day ago) |
| Shielding | Shielded |
| Inductance | 3.3 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 7.22 A |
| inductance tolerance | 30 % |
| Max DC Current | 7.22 A |
| Saturation Current | 7.38 A |
