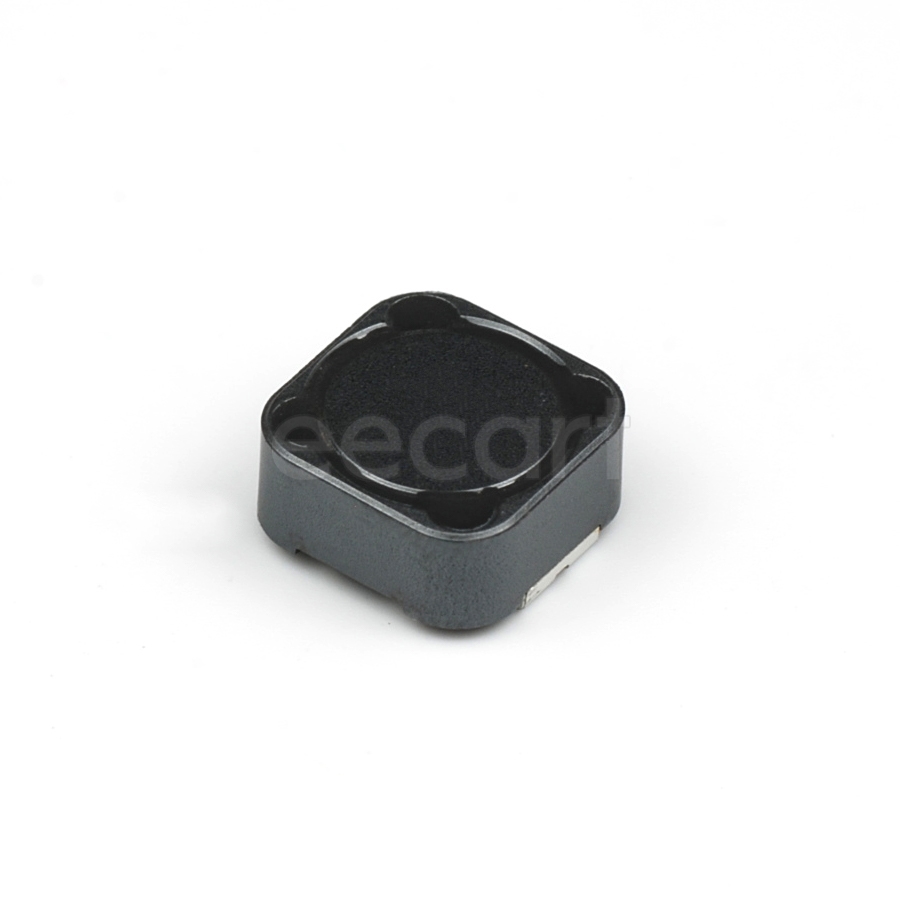

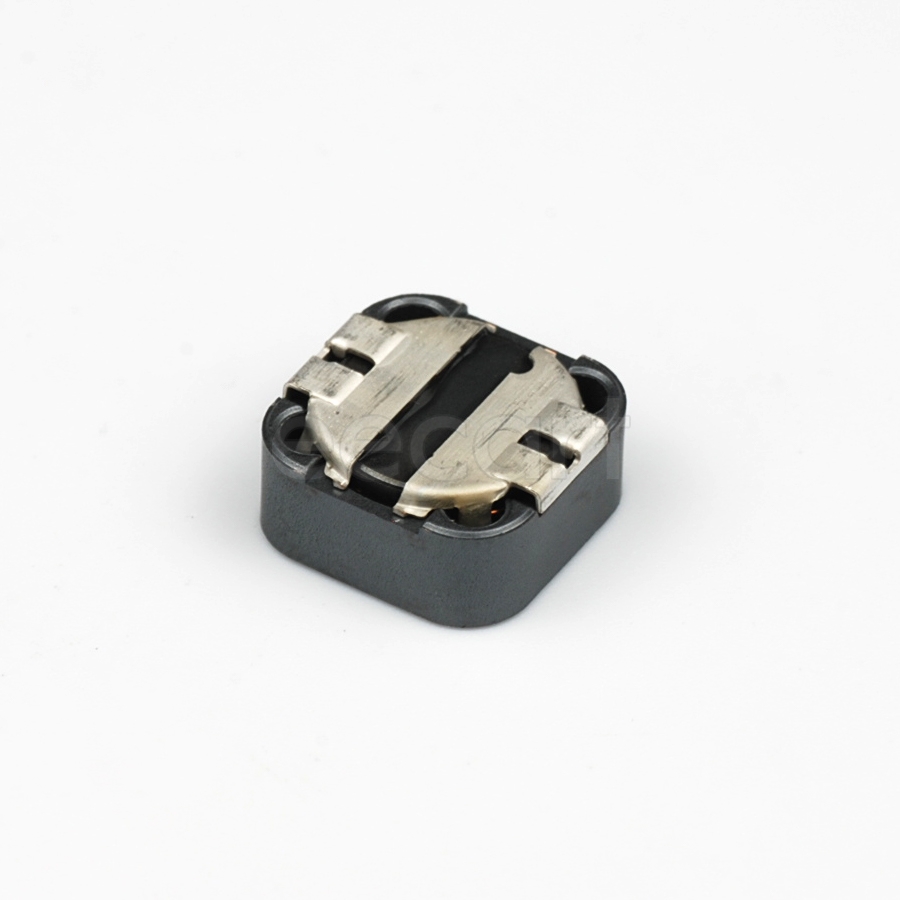

MSS1246-224KLB
Manufacturer:
Coilcraft
Mfr.Part #:
MSS1246-224KLB
Datasheet:
Description:
Fixed Inductors 12.00mmL×12.00mmW×4.60mmH SMD/SMT 220 µH 10 % 1 A 542.5 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Length | 12.3 mm |
| Width | 12.3 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 4.8 mm |
| Packaging | Reel |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 5.3 MHz |
| DC Resistance (DCR) | 542.5 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 1 day ago) |
| Shielding | Shielded |
| Inductance | 220 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1 A |
| inductance tolerance | 10 % |
| Max DC Current | 1 A |
| Saturation Current | 1.18 A |
| Current Rating | 1 A |
