MSS1260-333MLD
Manufacturer:
Coilcraft
Mfr.Part #:
MSS1260-333MLD
Datasheet:
Description:

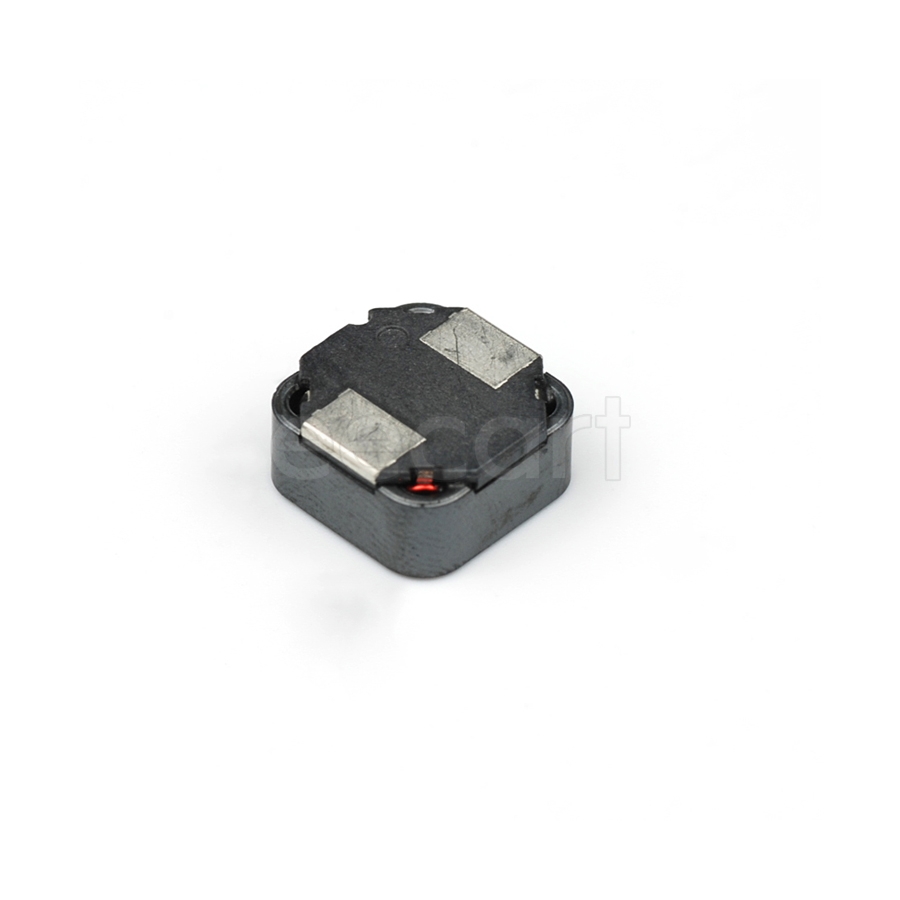

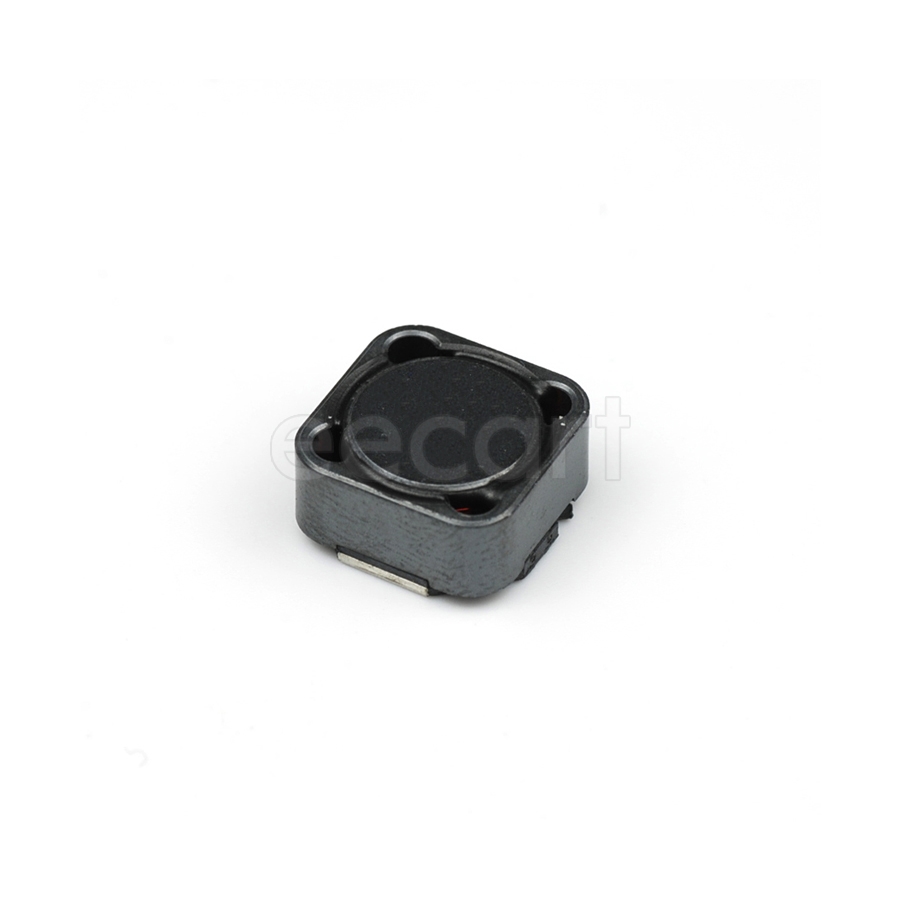

Fixed Inductors 12.30mmL×12.30mmW×6.20mmH SMD/SMT 33 µH 20 % 2.7 A 57 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Length | 12.3 mm |
| Width | 12.3 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 6.2 mm |
| Packaging | Reel |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 12 MHz |
| Type | Wirewound |
| DC Resistance (DCR) | 57 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 1 day ago) |
| Shielding | Shielded |
| Inductance | 33 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 2.7 A |
| inductance tolerance | 20 % |
| Max DC Current | 2.7 A |
| Saturation Current | 3.22 A |
| Current Rating | 2.7 A |
