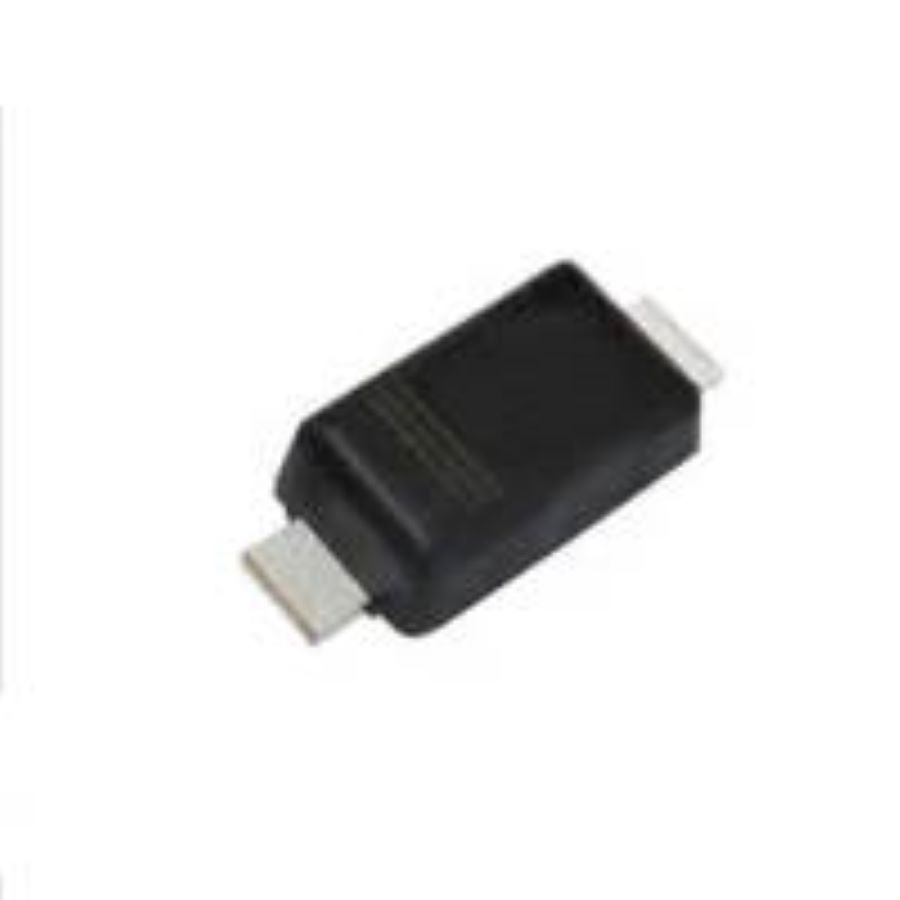

MSS1P2L-M3/89A
Manufacturer:
Vishay
Mfr.Part #:
MSS1P2L-M3/89A
Datasheet:
Description:
Rectifier Diodes DO-219AD-2 SMD/SMT Single Forward Current:1 A Forward Voltage:500 mV Reverse Voltage:20 V
| Parameter | Value |
|---|---|
| Length | 2.286 mm |
| Width | 1.397 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Height | 457.2 µm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Output Current | 1.4 A |
| Forward Current | 1 A |
| Forward Voltage | 500 mV |
| Average Rectified Current | 1 A |
| Max Reverse Voltage (DC) | 20 V |
| Max Repetitive Reverse Voltage (Vrrm) | 20 V |
| Element Configuration | Single |
| Forward Surge Current (Ifsm) | 25 A |
| Reverse Voltage | 20 V |
| Peak Non-Repetitive Surge Current | 25 A |
| Reverse Current | 250 µA |
| Schedule B | 8541100080 |
Stock: 1267
Distributors
pcbx
pcbxUnit Price$0.07805
Ext.Price$0.07805
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.07805 | $0.07805 |
| 10 | $0.06963 | $0.69630 |
| 50 | $0.06211 | $3.10550 |
| 100 | $0.05499 | $5.49900 |
| 500 | $0.04869 | $24.34500 |
| 1000 | $0.04514 | $45.14000 |
| 3000 | $0.04185 | $125.55000 |
