MSS5121-273MLB
Manufacturer:
Coilcraft
Mfr.Part #:
MSS5121-273MLB
Datasheet:
Description:

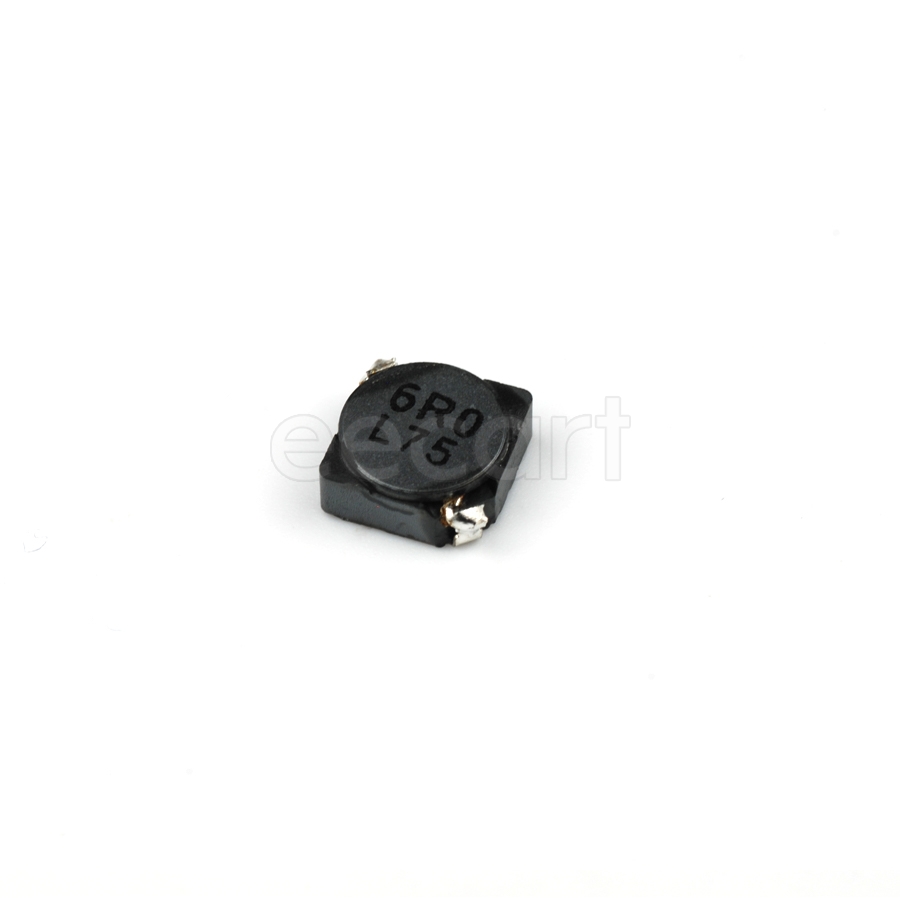

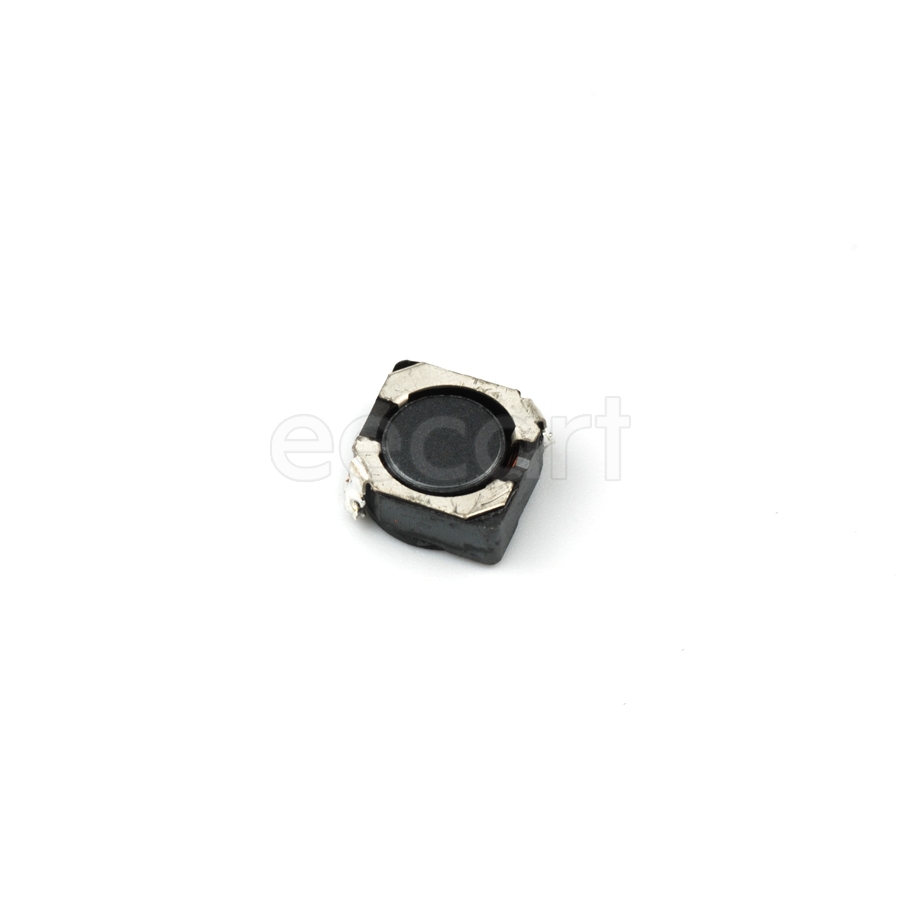

Fixed Inductors 5.10mmL×5.10mmW×2.20mmH SMD/SMT 27 µH 20 % 850 mA 420 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Length | 5.1 mm |
| Width | 5.1 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 2.2 mm |
| Packaging | Reel |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 27 MHz |
| Current Rating | 850 mA |
| DC Resistance (DCR) | 420 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 1 day ago) |
| Shielding | Shielded |
| Inductance | 27 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 850 mA |
| inductance tolerance | 20 % |
| Max DC Current | 850 mA |
