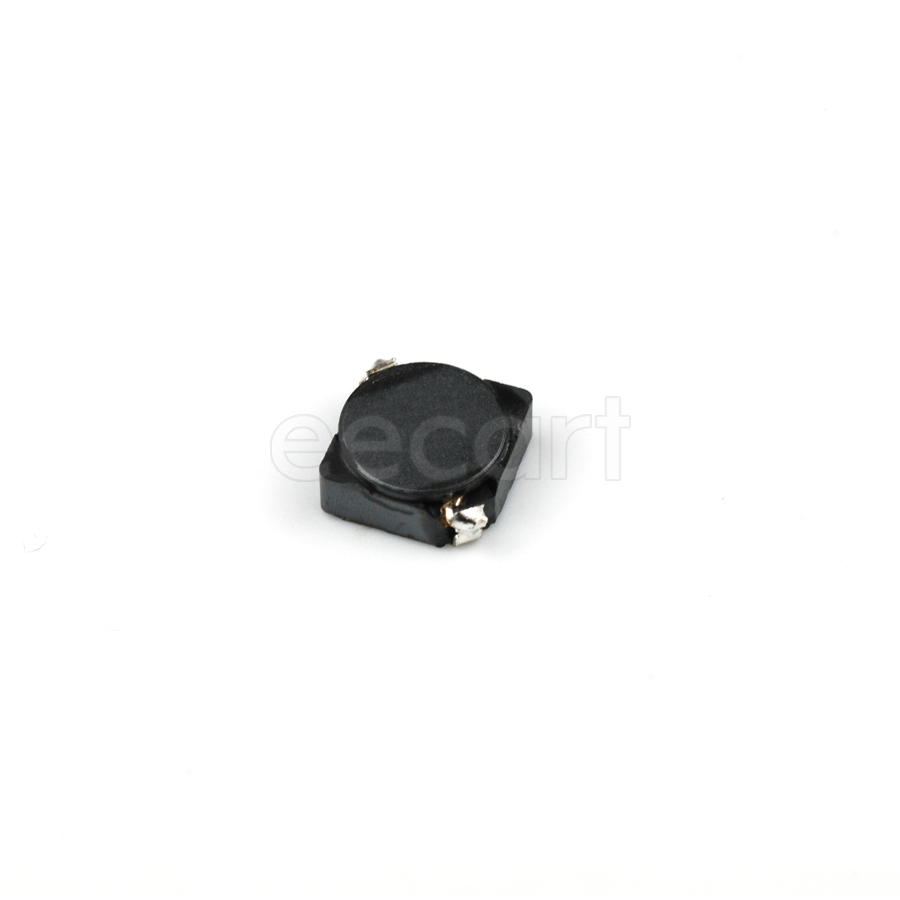

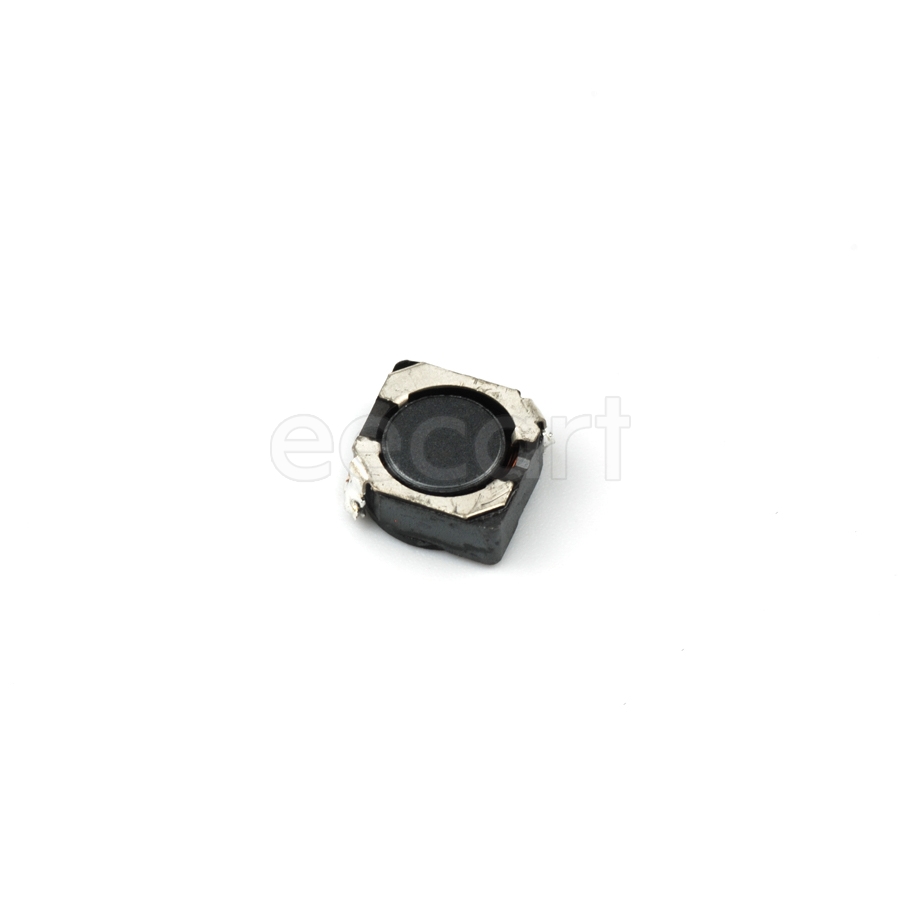

MSS6132-223MLC
Manufacturer:
Coilcraft
Mfr.Part #:
MSS6132-223MLC
Datasheet:
Description:
Fixed Inductors 2424(6060 Metric) SMD/SMT 22 µH 20 % 1.9 A 158 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Length | 6.1 mm |
| Width | 6.1 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 3.2 mm |
| Packaging | Reel |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 21 MHz |
| Type | Wirewound |
| Current Rating | 1.9 A |
| DC Resistance (DCR) | 158 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 12 hours ago) |
| Shielding | Shielded |
| Inductance | 22 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.9 A |
| inductance tolerance | 20 % |
| Max DC Current | 1.9 A |
| Saturation Current | 1.22 A |
