MSS7341T-104MLB
Manufacturer:
Coilcraft
Mfr.Part #:
MSS7341T-104MLB
Datasheet:
Description:

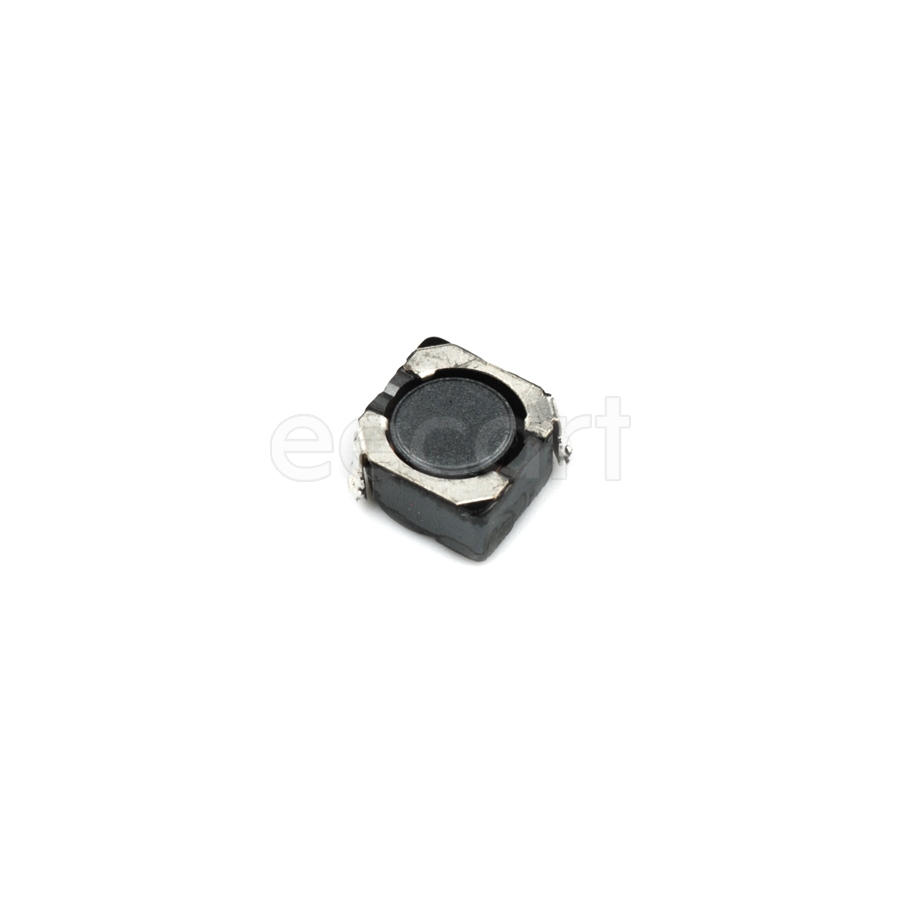

Fixed Inductors 2929(7373 Metric) SMD/SMT 100 µH 20 % 1.15 A 310 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Length | 7.3 mm |
| Width | 7.3 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Height | 4.1 mm |
| Packaging | Reel |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 7.2 MHz |
| Current Rating | 1.15 A |
| DC Resistance (DCR) | 310 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 12 hours ago) |
| Shielding | Shielded |
| Inductance | 100 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.15 A |
| inductance tolerance | 20 % |
| Max DC Current | 1.15 A |
| Saturation Current | 700 mA |
