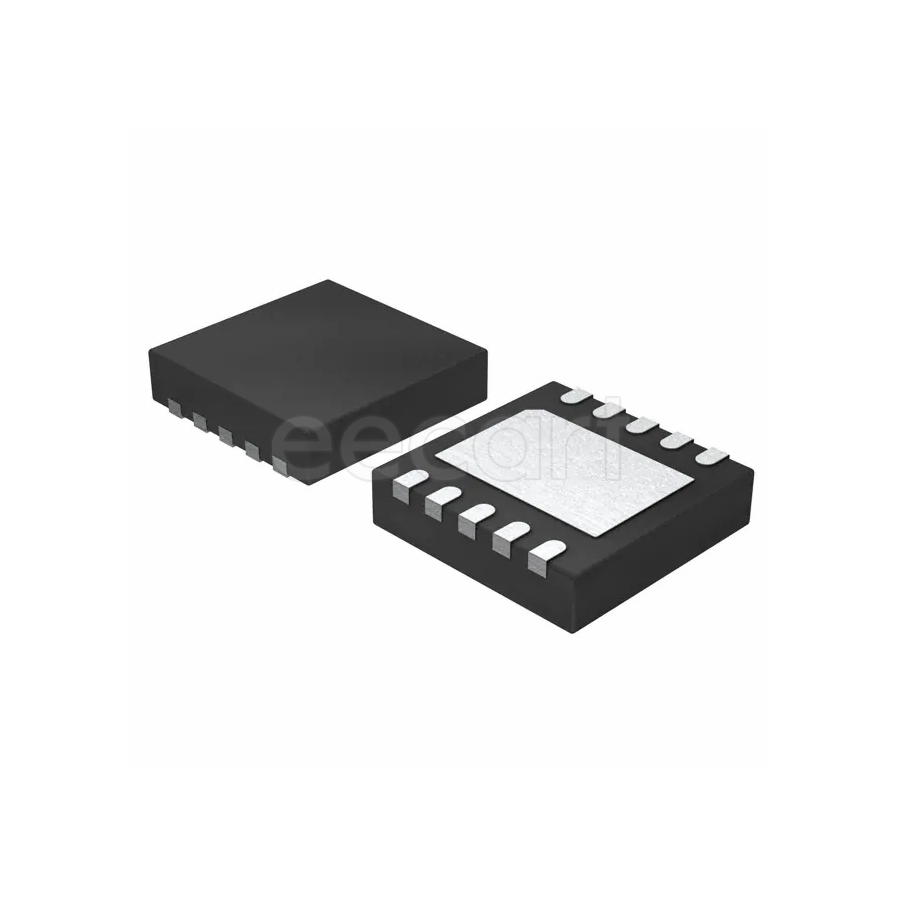

MTD6505T-E/NA
Manufacturer:
Microchip
Mfr.Part #:
MTD6505T-E/NA
Datasheet:
Description:
Motor Drivers UDFN-10 SMD/SMT PWM Load voltage:2 V to 5.5 V Half Bridge (3)
| Parameter | Value |
|---|---|
| Length | 3 mm |
| Width | 3 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 10 |
| Height | 500 µm |
| Packaging | Reel |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Interface | PWM |
| Output Current | 1 A |
| Output Voltage | 5.5 V |
| Operating Supply Voltage | 2 V to 5.5 V |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2 V |
| Number of Channels | 3 |
| Max Collector Current | 750 mA |
| Operating Supply Current | 5 mA |
| Logic Function | AND |
| Output Configuration | Half Bridge (3) |
| Number of Outputs | 3 |
| Motor Type | Brushless DC (BLDC) |
| Nominal Supply Current | 5 mA |
| Collector Emitter Voltage (VCEO) | 5 V |
| Chemistry/Technology | CMOS |
| Schedule B | 8541290080 |
| Applications | Fan Motor Driver |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Load Voltage | 2 V to 5.5 V |
| Motor Type - AC, DC | Brushless DC |
| RoHS | Compliant |
Stock: 1239
Distributors
pcbx
pcbxUnit Price$0.69227
Ext.Price$0.69227
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.69227 | $0.69227 |
| 10 | $0.63131 | $6.31310 |
| 25 | $0.57572 | $14.39300 |
| 50 | $0.54584 | $27.29200 |
| 100 | $0.51751 | $51.75100 |
| 300 | $0.51752 | $155.25600 |
| 500 | $0.51753 | $258.76500 |
| 1000 | $0.51754 | $517.54000 |
| 3000 | $0.51752 | $1552.56000 |
