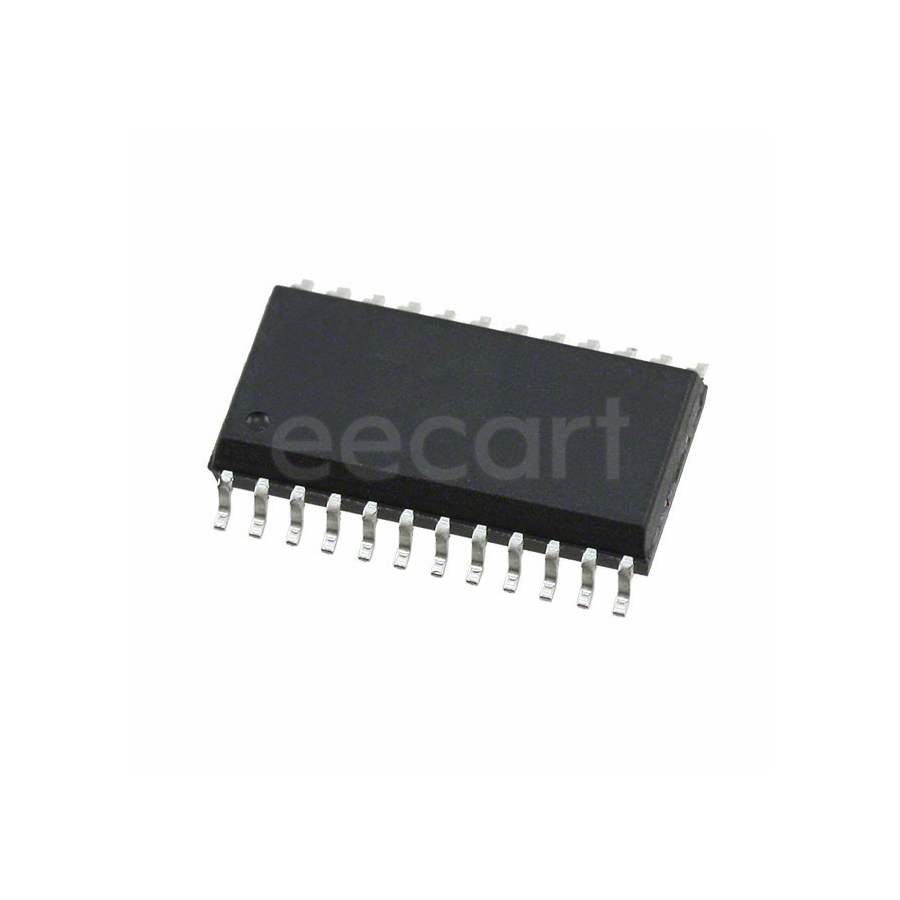

MTS62C19A-HS105
Manufacturer:
Microchip
Mfr.Part #:
MTS62C19A-HS105
Datasheet:
Description:
Motor Drivers SOP-24 SMD/SMT On/Off Load voltage:10 V to 40 V Half Bridge (4)
| Parameter | Value |
|---|---|
| Length | 15.85 mm |
| Width | 7.595 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 24 |
| Height | 2.642 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Output Current | 750 mA |
| Output Voltage | 40 V |
| Operating Supply Voltage | 30 V |
| Max Supply Voltage | 40 V |
| Min Supply Voltage | 10 V |
| Number of Channels | 2 |
| Max Collector Current | 750 mA |
| Number of Outputs | 2 |
| Nominal Supply Current | 800 µA |
| Schedule B | 8542390000 |
| Load Voltage | 10 V to 40 V |
| Operating Supply Current | 800 µA |
| RoHS | Compliant |
| Packaging | Tube |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Applications | Automotive |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | On/Off |
| Step Resolution | 1, 1/2, 1/4, 1/8 |
| Chemistry/Technology | CMOS |
Stock: 829
Distributors
pcbx
pcbxUnit Price$0.91392
Ext.Price$0.91392
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.91392 | $0.91392 |
| 10 | $0.83530 | $8.35300 |
| 25 | $0.76345 | $19.08625 |
| 50 | $0.73866 | $36.93300 |
