MUC-20PFFR-JS7001
Manufacturer:
Amphenol
Mfr.Part #:
MUC-20PFFR-JS7001
Datasheet:
Description:

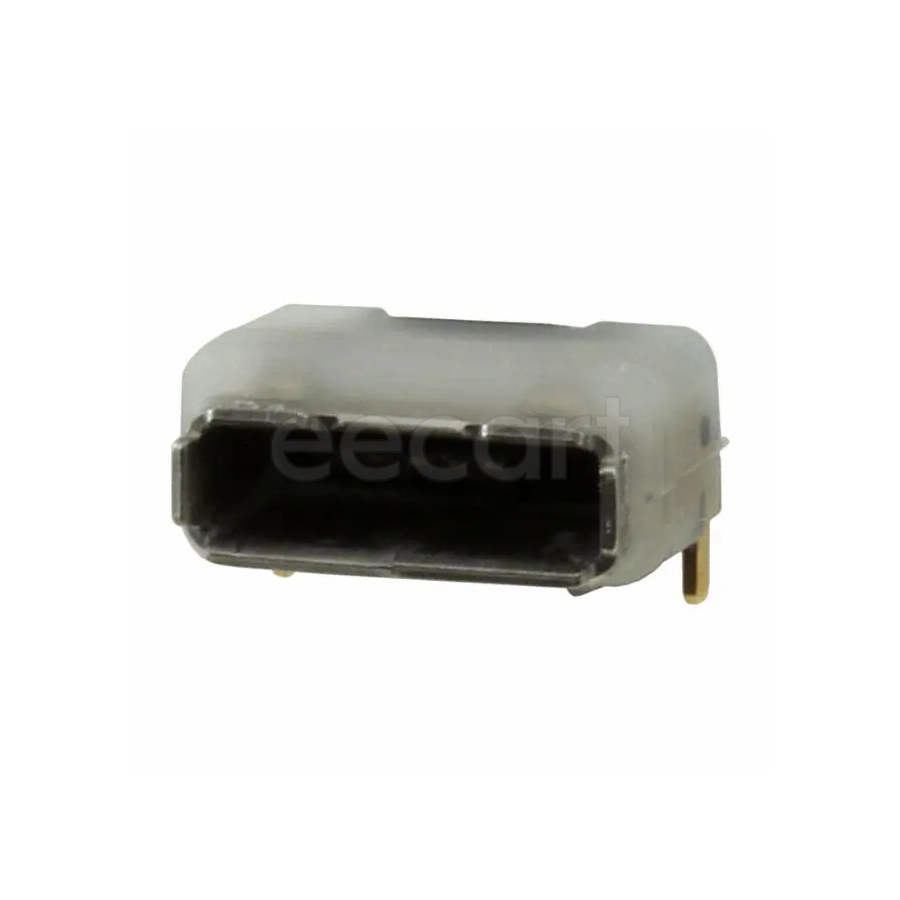

USB Connectors SMD/SMT USB - Micro AB Jack (Female) USB 2.0
| Parameter | Value |
|---|---|
| Length | 8.3 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 5 |
| Packaging | Reel |
| RoHS | Compliant |
| Ratings | Dust Tight, IP67, Waterproof |
| Contact Plating | Gold |
| Pitch | 650 µm |
| Type | USB - Micro AB |
| Current Rating | 1 A |
| Orientation | Right Angle |
| Gender | Jack (Female) |
| Number of Contacts | 5 |
| USB Standard | USB 2.0 |
| Connector Type | USB |
| Housing Material | Nylon |
| Number of Ports | 1 |
| IP Rating(Ingress Protection) | IP67 |
| Mounting Angle | Right Angle |
Stock: 8704
Distributors
pcbx
pcbxUnit Price$1.64555
Ext.Price$1.64555
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.64555 | $1.64555 |
| 10 | $1.40027 | $14.00270 |
| 25 | $1.31220 | $32.80500 |
| 50 | $1.24964 | $62.48200 |
| 100 | $1.18988 | $118.98800 |
| 300 | $1.12418 | $337.25400 |
| 500 | $1.06212 | $531.06000 |
| 1000 | $0.78431 | $784.31000 |
