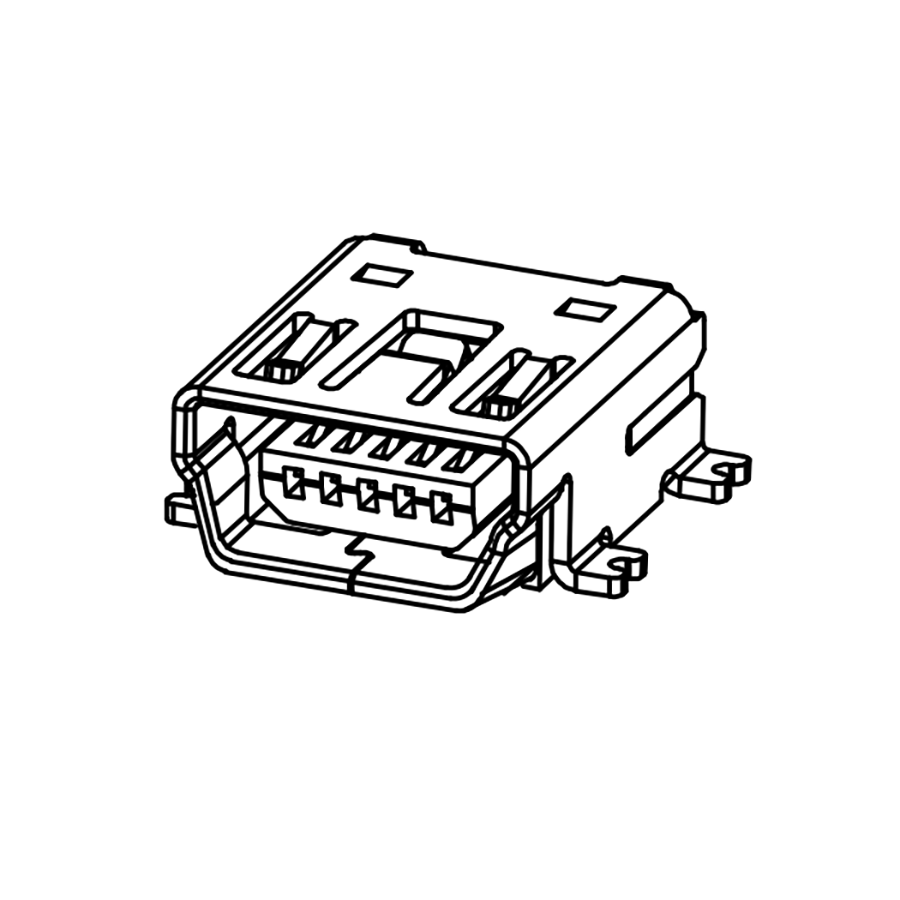

MUSB-05-S-AB-SM-A
Manufacturer:
Samtec
Mfr.Part #:
MUSB-05-S-AB-SM-A
Datasheet:
Description:
USB Connectors SMD/SMT USB - mini AB Receptacle USB 2.0
| Parameter | Value |
|---|---|
| Length | 9.9 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -50 °C |
| Voltage Rating (AC) | 30 V |
| Packaging | Bulk |
| Voltage Rating | 30 V |
| Depth | 9.2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 800 µm |
| Type | USB - mini AB |
| Number of Terminals | 5 |
| Current Rating | 1 A |
| Orientation | Right Angle |
| Gender | Receptacle |
| Shielding | Unshielded |
| Number of Contacts | 5 |
| USB Standard | USB 2.0 |
| Connector Type | USB |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Contact Resistance | 50 mΩ |
| Max Voltage Rating (AC) | 30 V |
