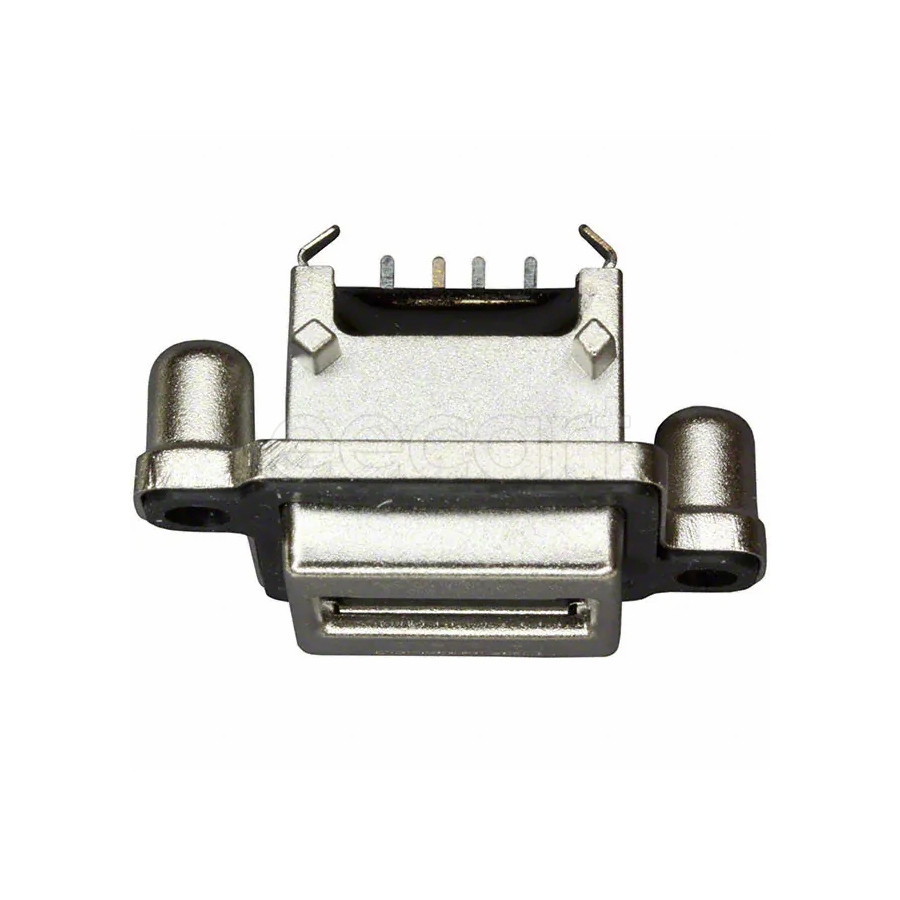

MUSB-A511-00
Manufacturer:
Amphenol
Mfr.Part #:
MUSB-A511-00
Datasheet:
Description:
USB Connectors Through Hole USB-A (USB TYPE-A) Receptacle USB 2.0
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 100 V |
| Length | 30 mm |
| Width | 30 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating | 100 V |
| Depth | 16.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Weight | 12 g |
| Ratings | Dust Tight, IP67, Waterproof |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Type | USB-A (USB TYPE-A) |
| Number of Terminals | 4 |
| Current Rating | 1.5 A |
| Max Current Rating | 1.5 A |
| Max Voltage Rating (DC) | 100 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Color | Black |
| Gender | Receptacle |
| Shielding | Shielded |
| Number of Contacts | 4 |
| USB Standard | USB 2.0 |
| Connector Type | Receptacle, USB |
| Number of Positions | 4 |
| Number of Ports | 1 |
| Housing Color | Black |
| Mounting Angle | Straight |
| Packaging | Bulk |
