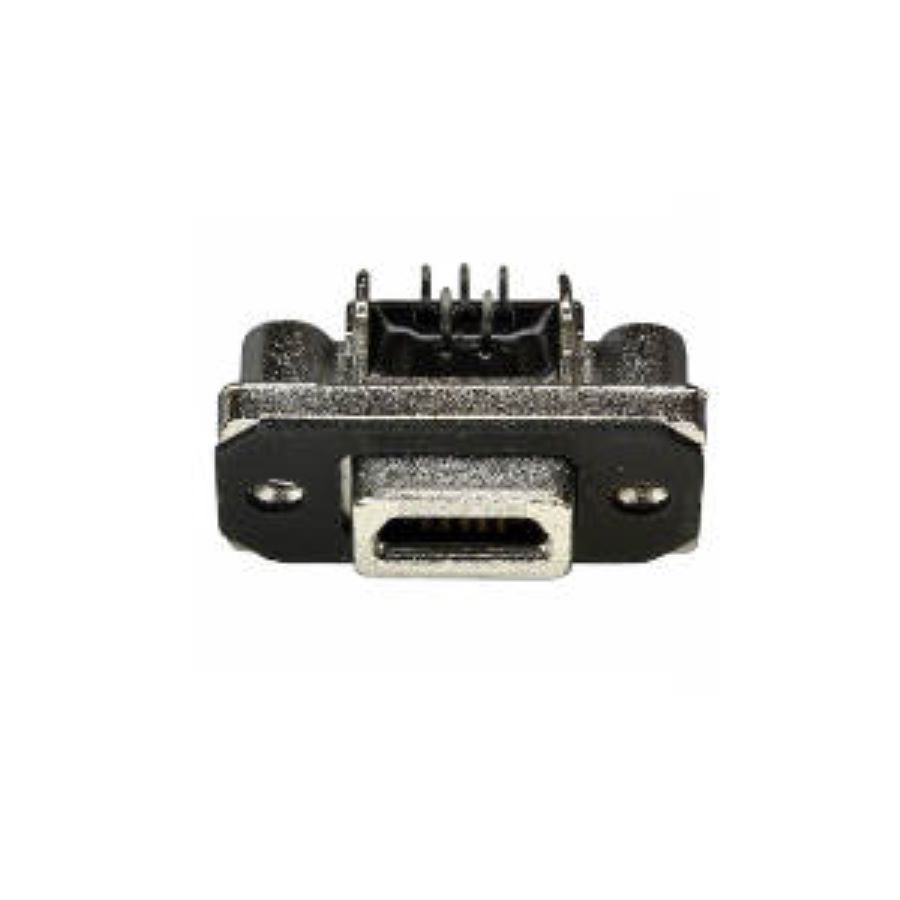

MUSBE15134
Manufacturer:
Amphenol
Mfr.Part #:
MUSBE15134
Datasheet:
Description:
USB Connectors Through Hole USB - mini AB Receptacle USB 2.0
| Parameter | Value |
|---|---|
| Length | 20 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Depth | 9.98 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Ratings | Dust Tight, IP67, Waterproof |
| Contact Plating | Gold |
| Features | Shielded |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.6 mm |
| Type | USB - mini AB |
| Number of Terminals | 5 |
| Current Rating | 1.5 A |
| Orientation | Right Angle |
| Gender | Receptacle |
| Shielding | Shielded |
| Number of Contacts | 5 |
| USB Standard | USB 2.0 |
| Connector Type | Receptacle, USB |
| Number of Positions | 5 |
| Housing Material | Zinc |
| Number of Ports | 1 |
| Mounting Angle | Right Angle |
Stock: 96
Distributors
pcbx
pcbxUnit Price$9.70458
Ext.Price$9.70458
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $9.70458 | $9.70458 |
| 10 | $8.24538 | $82.45380 |
| 25 | $7.72908 | $193.22700 |
| 50 | $7.33323 | $366.66150 |
| 100 | $6.95766 | $695.76600 |
| 300 | $6.60132 | $1980.39600 |
| 500 | $6.26323 | $3131.61500 |
| 1000 | $5.94258 | $5942.58000 |
