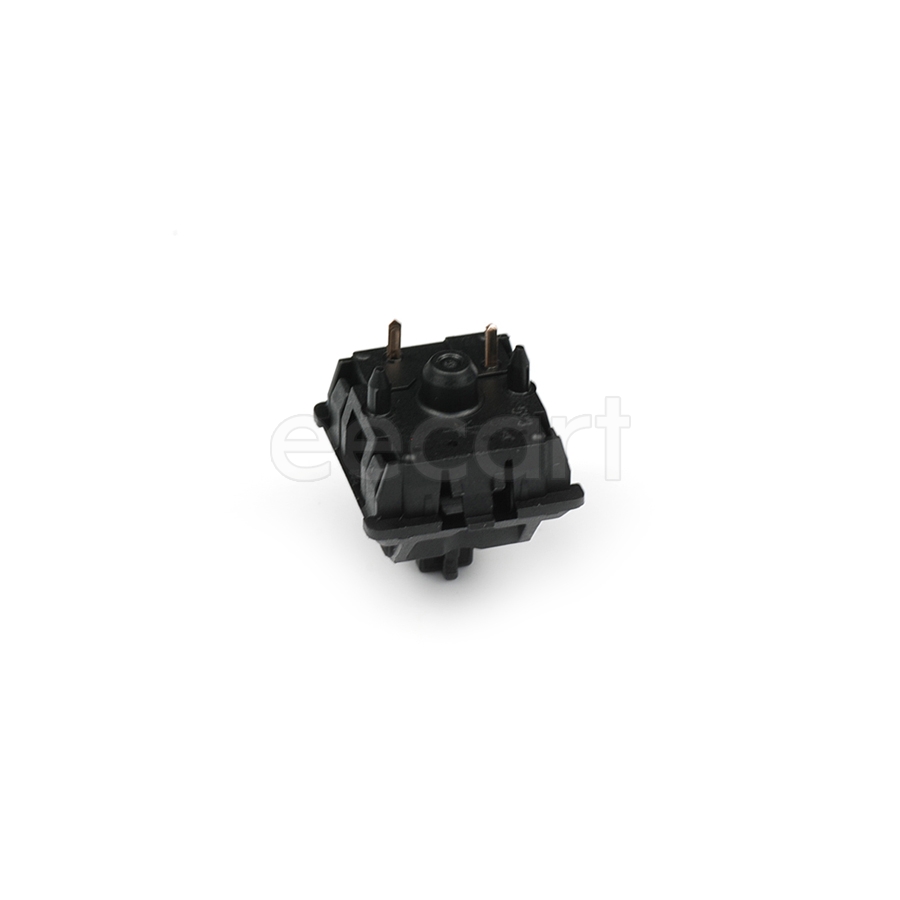

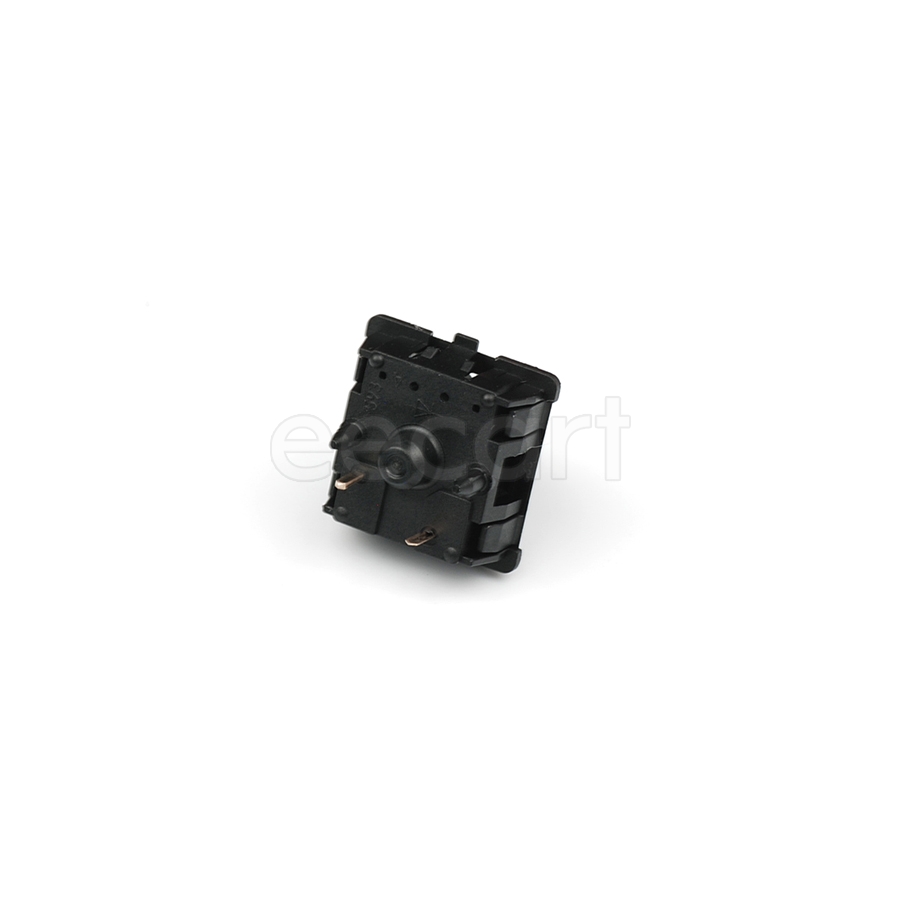

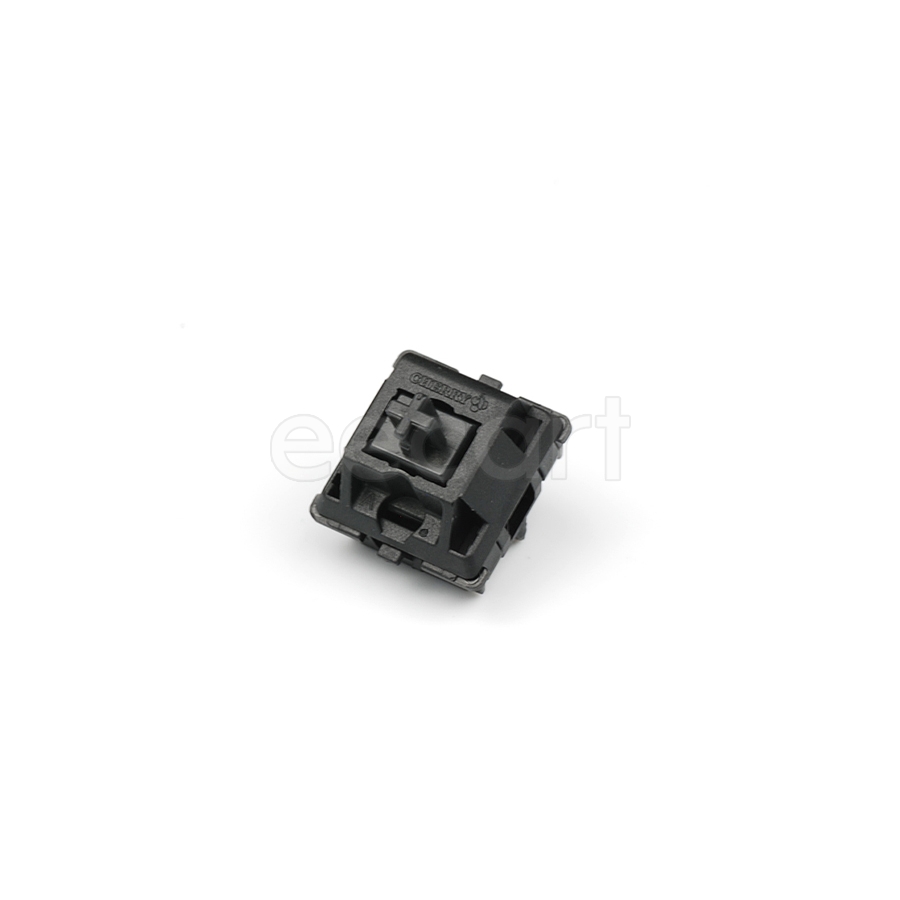

MX1A-11NW
Manufacturer:
Cherry
Mfr.Part #:
MX1A-11NW
Datasheet:
Description:
Pushbutton Switches Through Hole SPST-NO Off-Mom Plunger for Cap Illuminated Keyswitch Current Rating:10 mA
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 15.6 mm |
| Width | 15.6 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -10 °C |
| Voltage Rating (AC) | 12 V |
| Number of Pins | 2 |
| Circuit Type | SPST-NO |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold, Silver |
| Type | Keyswitch |
| Number of Terminals | 2 |
| Terminal Pitch | 2.54 mm |
| Current Rating | 10 mA |
| Max Current Rating | 100 mA |
| Max Voltage Rating (DC) | 12 V |
| Flammability Rating | UL94HB |
| Orientation | Straight |
| Actuator Length | 3.6 mm |
| Throw Configuration | SPST |
| Row Spacing | 6.35 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 200 mΩ |
| Max Voltage Rating (AC) | 12 V |
| Switch Function | Off-Mom |
| Illumination Type | Illuminated |
| Electrical Life | 50 Mcycles |
| Operating Force | 580 mN |
| Contact Current Rating | 10 mA |
| switching current | 10 mA |
| Actuator Type | Plunger for Cap |
| Termination Style | PC Pin |
| IP Rating(Ingress Protection) | IP40 |
| Cap Color | Black |
Stock: 1
Distributors
pcbx
pcbxUnit Price$0.65094
Ext.Price$0.65094
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.65094 | $0.65094 |
