MCP14A0153-E/MS
Manufacturer:
Microchip
Mfr.Part #:
MCP14A0153-E/MS
Datasheet:
Description:

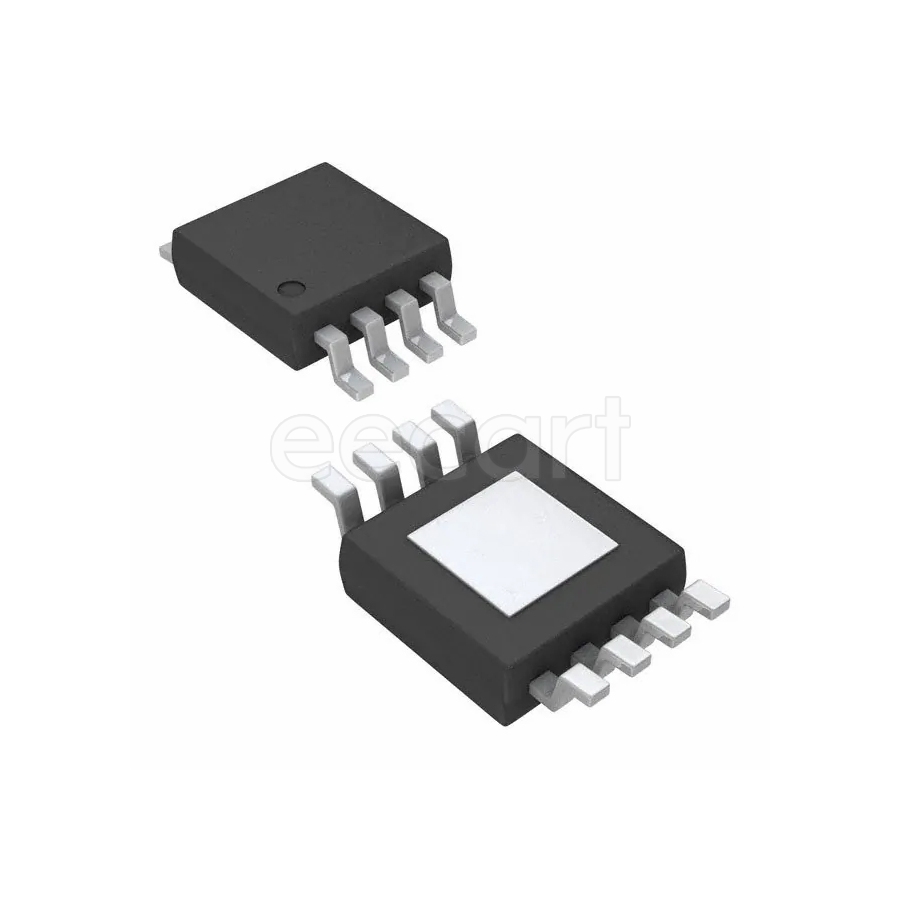

Gate Drivers MSOP-8 SMD/SMT Low Side N-Channel, P-Channel MOSFET Independent
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Packaging | Tube |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Output Current | 1.5 A |
| Lifecycle Status | Production (Last Updated: 7 months ago) |
| Max Supply Voltage | 18 V |
| Min Supply Voltage | 4.5 V |
| Max Output Current | 1.5 A |
| Number of Channels | 2 |
| Channel Type | Independent |
| Number of Outputs | 2 |
| Fall Time | 10 ns |
| Rise Time | 11.5 ns |
| Number of Drivers | 2 |
| Schedule B | 8542390000 |
| Logic Voltage | 0.8 V, 2 V |
| Gate Type | N-Channel, P-Channel MOSFET |
| Configuration | Low Side |
Stock: 1
Distributors
pcbx
pcbxUnit Price$3.37325
Ext.Price$3.37325
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.37325 | $3.37325 |
| 10 | $2.95469 | $29.54690 |
| 25 | $2.77524 | $69.38100 |
| 50 | $2.60669 | $130.33450 |
| 100 | $2.44838 | $244.83800 |
| 300 | $2.38615 | $715.84500 |
| 500 | $2.32548 | $1162.74000 |
| 1000 | $2.27126 | $2271.26000 |
