MCP1754ST-5002E/MB
Manufacturer:
Microchip
Mfr.Part #:
MCP1754ST-5002E/MB
Datasheet:
Description:

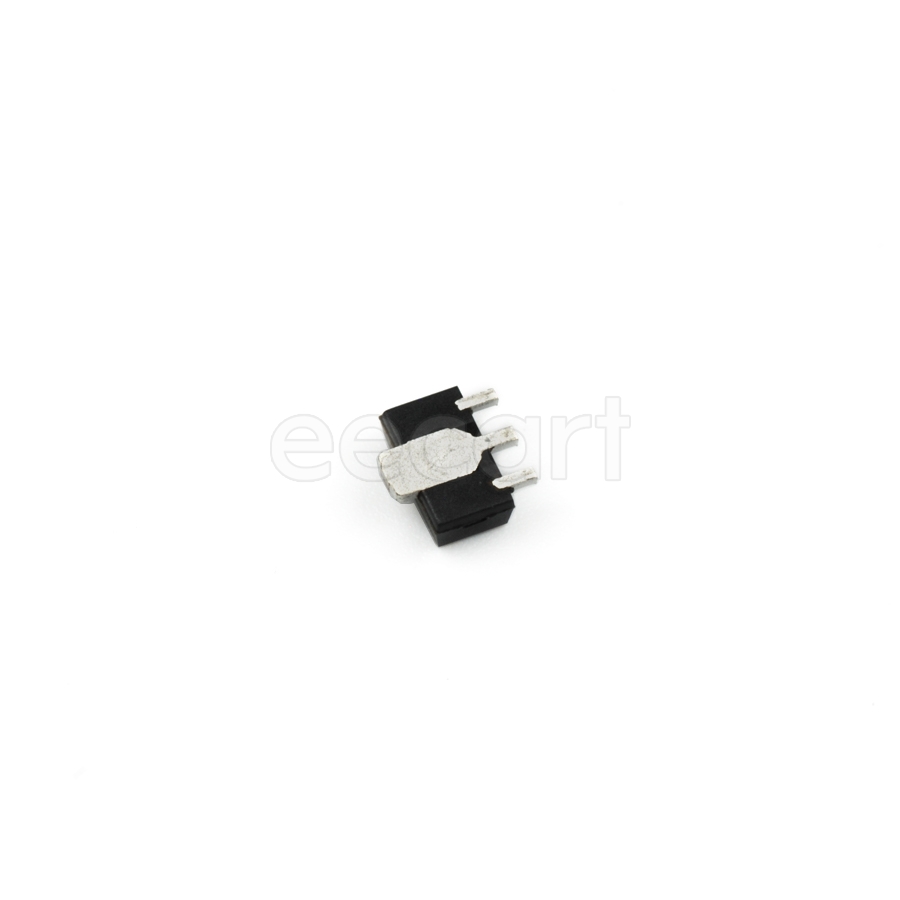

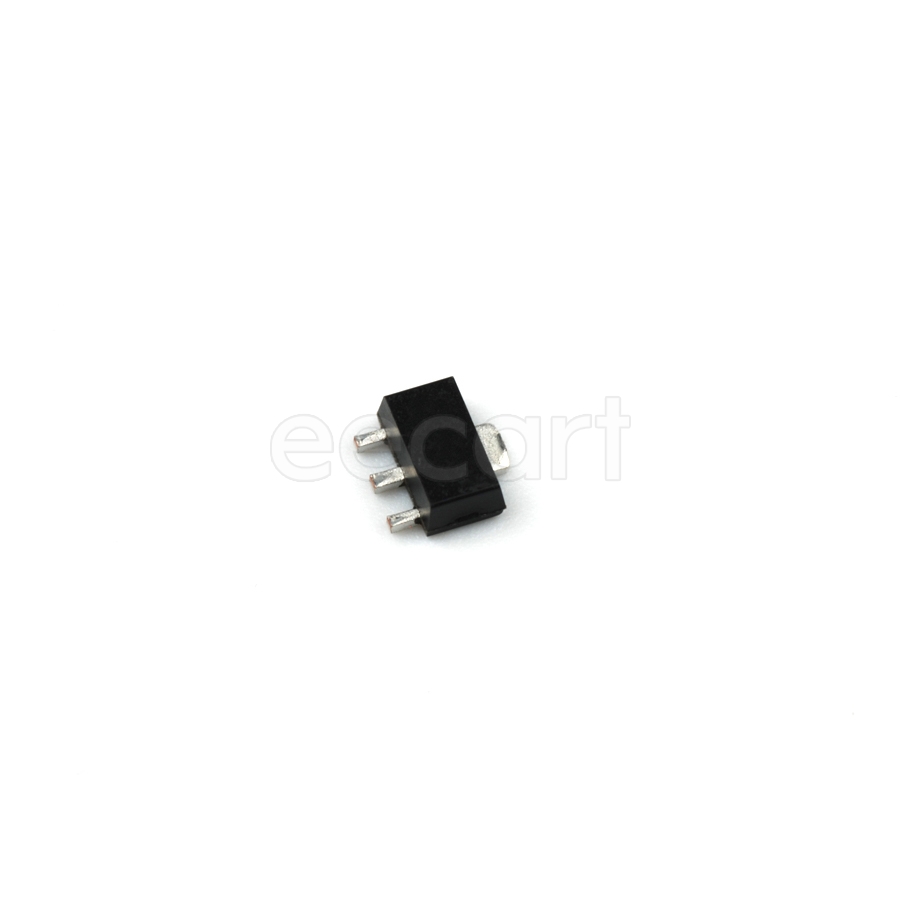

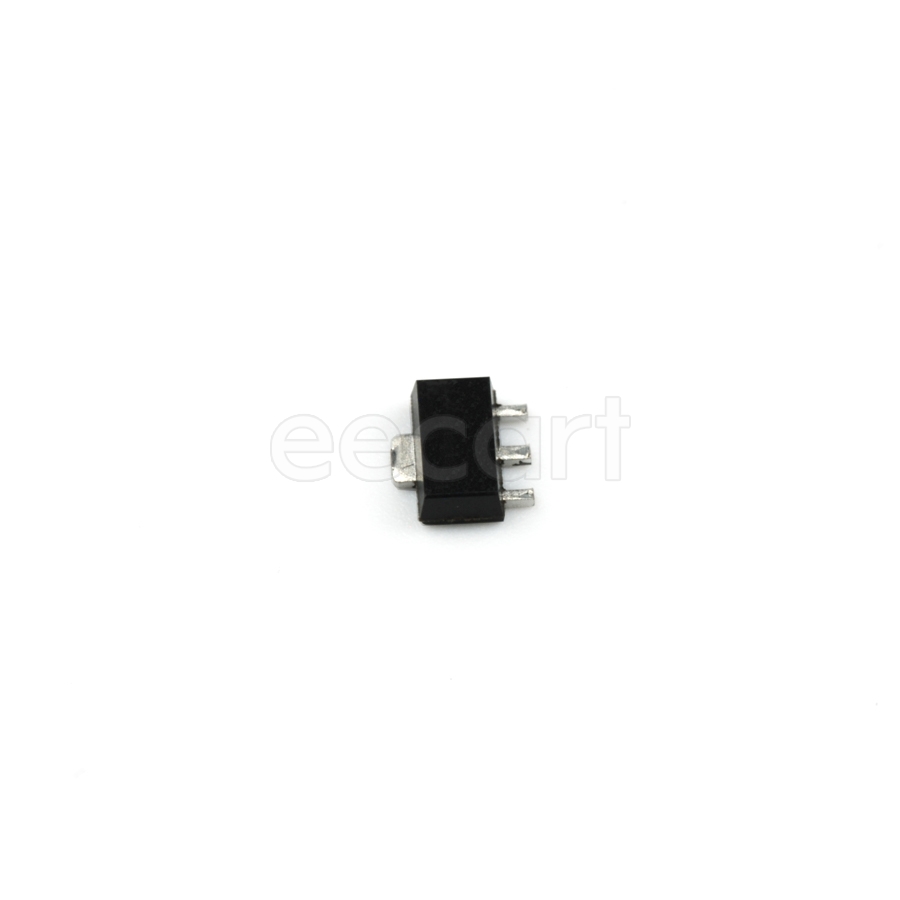

Voltage Regulators - Linear SOT-89-3 SMD/SMT Positive Fixed 5 V 150 mA
| Parameter | Value |
|---|---|
| Length | 4.6 mm |
| Width | 4.25 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Height | 1.6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Positive |
| REACH SVHC | No SVHC |
| Dropout Voltage | 300 mV |
| Min Input Voltage | 3.6 V |
| Output Current | 150 mA |
| Output Voltage | 5 V |
| Output Type | Fixed |
| Lifecycle Status | Production (Last Updated: 9 months ago) |
| Accuracy | 2 % |
| Max Output Current | 150 mA |
| Number of Channels | 1 |
| Quiescent Current | 90 µA |
| Max Input Voltage | 16 V |
| Number of Outputs | 1 |
| Nominal Supply Current | 56 µA |
| Min Output Voltage | 5 V |
| Nominal Output Voltage | 5 V |
| Output Voltage Accuracy | 2 % |
| Schedule B | 8542390000 |
| Packaging | Reel |
| Load Regulation | -0.4 % |
| Line Regulation | 0.01 %/V |
Stock: 9403
Distributors
pcbx
pcbxUnit Price$0.42576
Ext.Price$0.42576
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.42576 | $0.42576 |
| 10 | $0.39840 | $3.98400 |
| 25 | $0.38386 | $9.59650 |
| 50 | $0.38369 | $19.18450 |
| 100 | $0.38352 | $38.35200 |
| 300 | $0.38335 | $115.00500 |
| 500 | $0.38318 | $191.59000 |
| 1000 | $0.38301 | $383.01000 |
