MCP1791T-5002E/DC
Manufacturer:
Microchip
Mfr.Part #:
MCP1791T-5002E/DC
Datasheet:
Description:

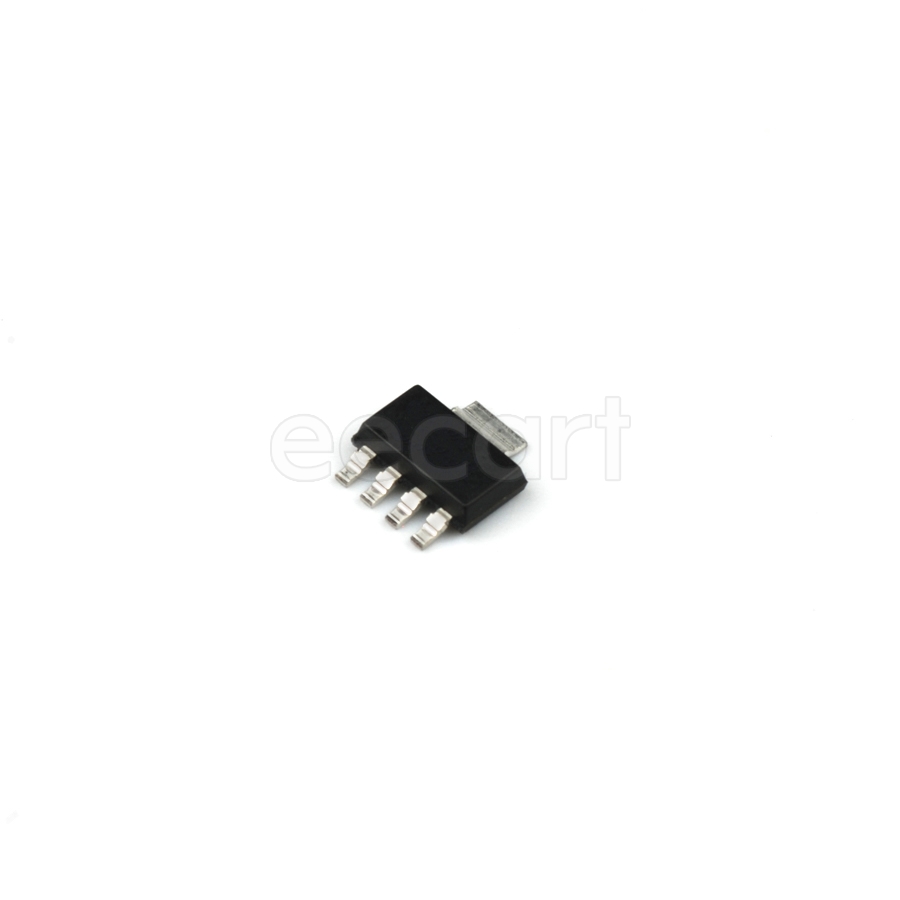

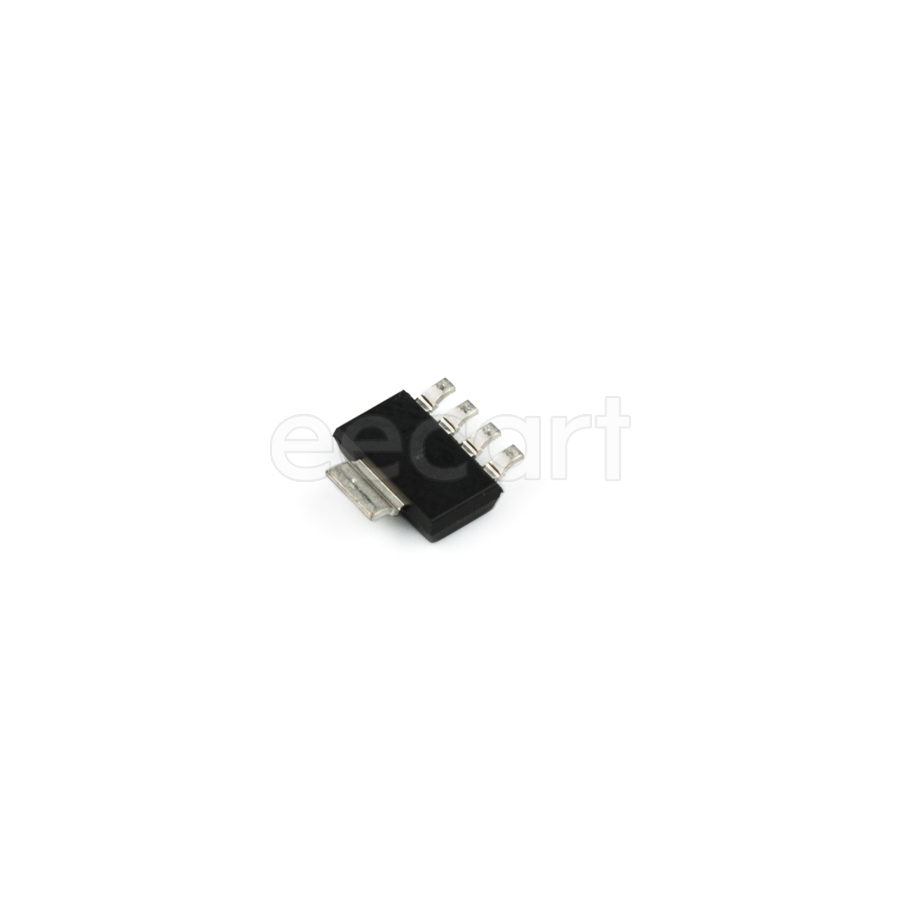

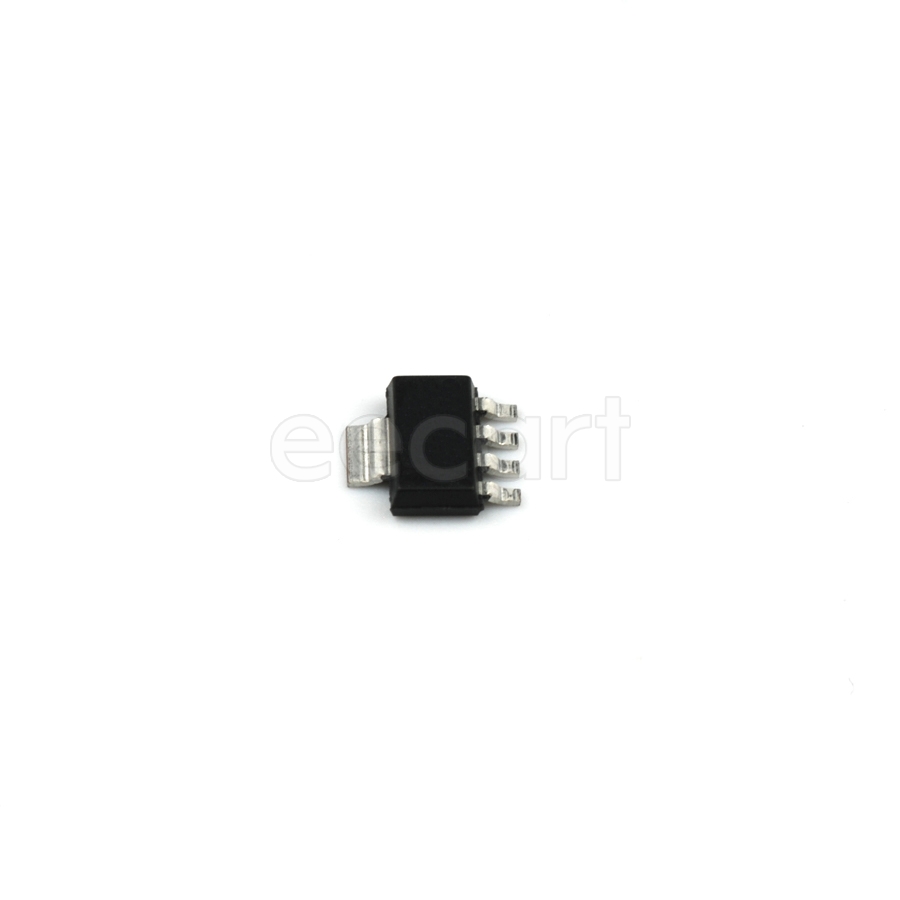

Voltage Regulators - Linear SOT-223-5 SMD/SMT Positive Fixed 5 V 70 mA
| Parameter | Value |
|---|---|
| Length | 6.5 mm |
| Width | 3.5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Height | 1.6 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Positive |
| REACH SVHC | No SVHC |
| Dropout Voltage | 700 mV |
| Min Input Voltage | 6 V |
| Output Current | 70 mA |
| Output Voltage | 5 V |
| Output Type | Fixed |
| Lifecycle Status | Production (Last Updated: 9 months ago) |
| Max Supply Voltage | 30 V |
| Min Supply Voltage | 6 V |
| Accuracy | 2.5 % |
| Power Dissipation | 1.371 W |
| Max Output Current | 70 mA |
| Number of Channels | 1 |
| Input Bias Current | 70 µA |
| Quiescent Current | 130 µA |
| Max Input Voltage | 30 V |
| Number of Outputs | 1 |
| Min Output Voltage | 5 V |
| Max Output Voltage | 5 V |
| Schedule B | 8542390000 |
| Load Regulation | 0.2 % |
| Line Regulation | 0.0002 %/V |
Stock: 127
Distributors
pcbx
pcbxUnit Price$0.61983
Ext.Price$0.61983
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.61983 | $0.61983 |
| 10 | $0.56057 | $5.60570 |
| 25 | $0.50697 | $12.67425 |
| 50 | $0.48780 | $24.39000 |
| 100 | $0.46936 | $46.93600 |
| 300 | $0.46936 | $140.80800 |
| 500 | $0.46936 | $234.68000 |
| 1000 | $0.46936 | $469.36000 |
| 3000 | $0.46936 | $1408.08000 |
