MCP1825-3302E/AT
Manufacturer:
Microchip
Mfr.Part #:
MCP1825-3302E/AT
Datasheet:
Description:

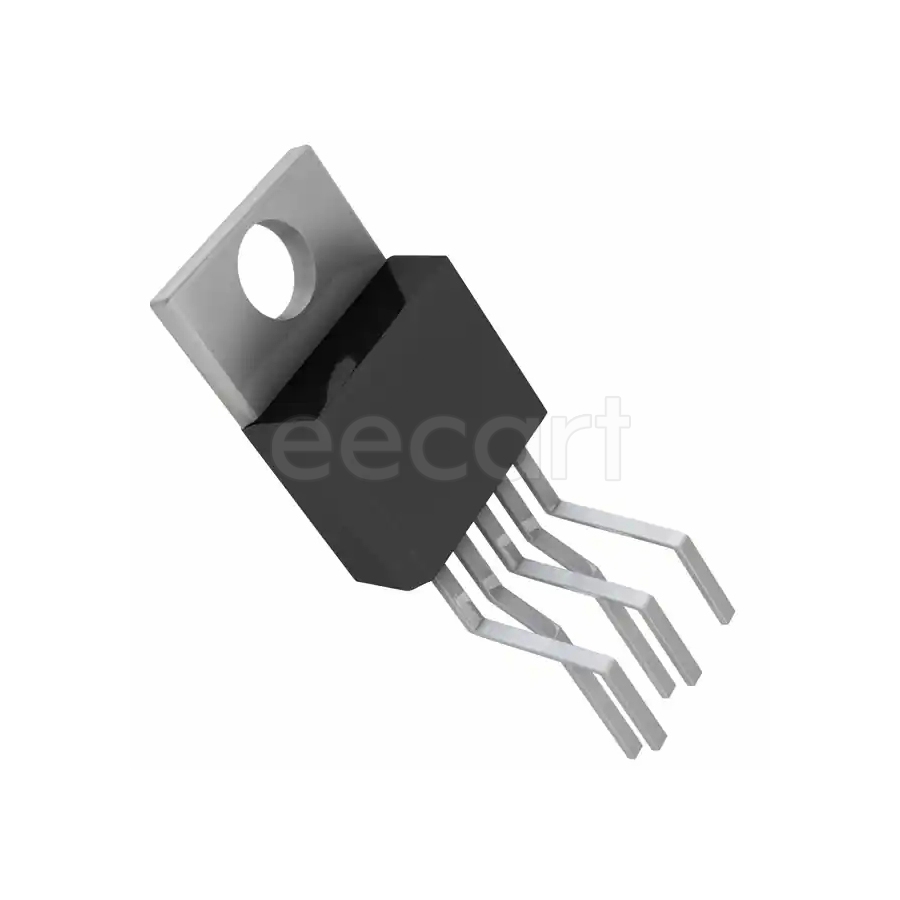

Voltage Regulators - Linear TO-220-5 Through Hole Positive Fixed 3.3 V 500 mA
| Parameter | Value |
|---|---|
| Length | 10.668 mm |
| Width | 4.826 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Height | 16.51 mm |
| Packaging | Tube |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Positive |
| REACH SVHC | No SVHC |
| Dropout Voltage | 210 mV |
| Min Input Voltage | 2.1 V |
| Output Current | 500 mA |
| Output Voltage | 3.3 V |
| Output Type | Fixed |
| Lifecycle Status | Production (Last Updated: 9 months ago) |
| Accuracy | 2.5 % |
| Max Output Current | 500 mA |
| Input Bias Current | 120 µA |
| Quiescent Current | 220 µA |
| Max Input Voltage | 6 V |
| Number of Outputs | 1 |
| Nominal Output Voltage | 3.3 V |
| Schedule B | 8542390000 |
| Load Regulation | 0.5 % |
| Line Regulation | 0.05 %/V |
Stock: 14
Distributors
pcbx
pcbxUnit Price$2.41440
Ext.Price$2.41440
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.41440 | $2.41440 |
| 10 | $2.25946 | $22.59460 |
| 25 | $2.19989 | $54.99725 |
| 50 | $2.14189 | $107.09450 |
| 100 | $2.08540 | $208.54000 |
| 300 | $2.06263 | $618.78900 |
| 500 | $2.04010 | $1020.05000 |
| 1000 | $2.01954 | $2019.54000 |
