MCP1825T-ADJE/DC
Manufacturer:
Microchip
Mfr.Part #:
MCP1825T-ADJE/DC
Datasheet:
Description:

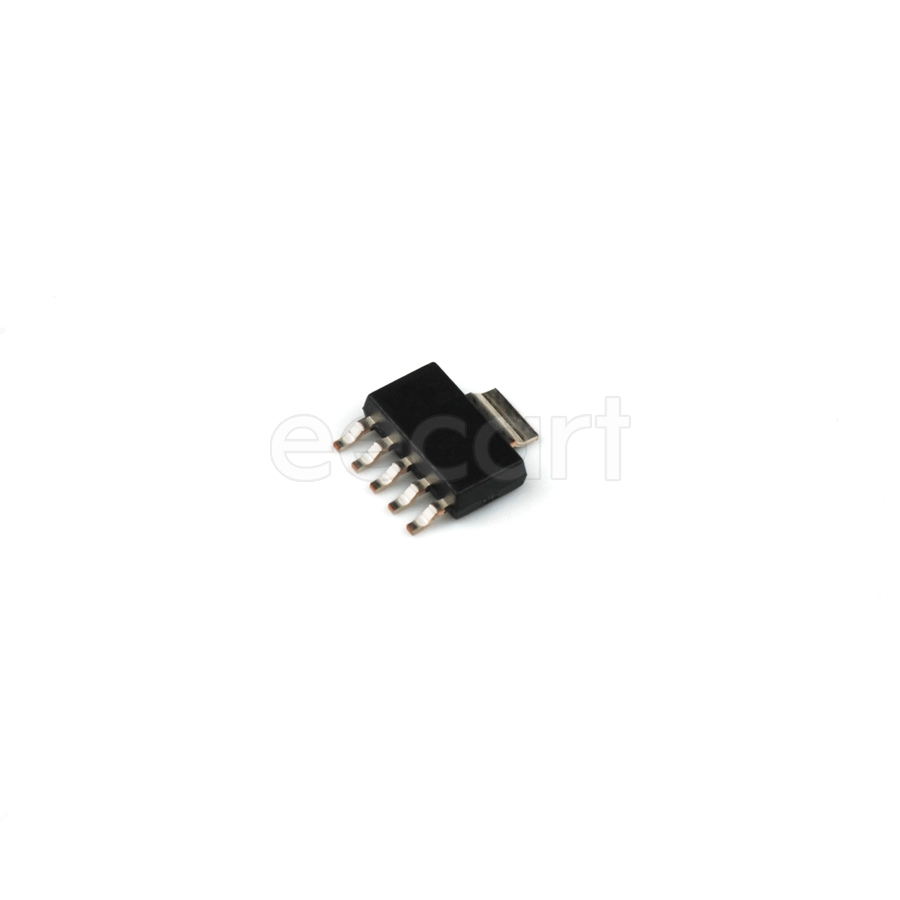

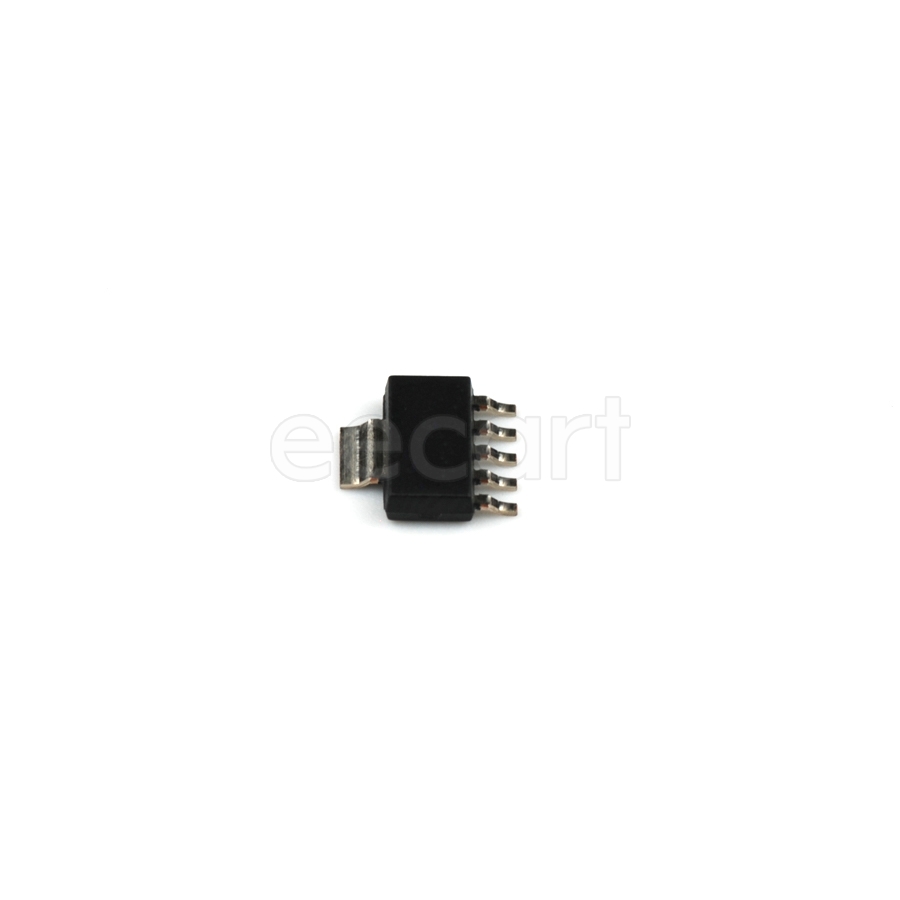

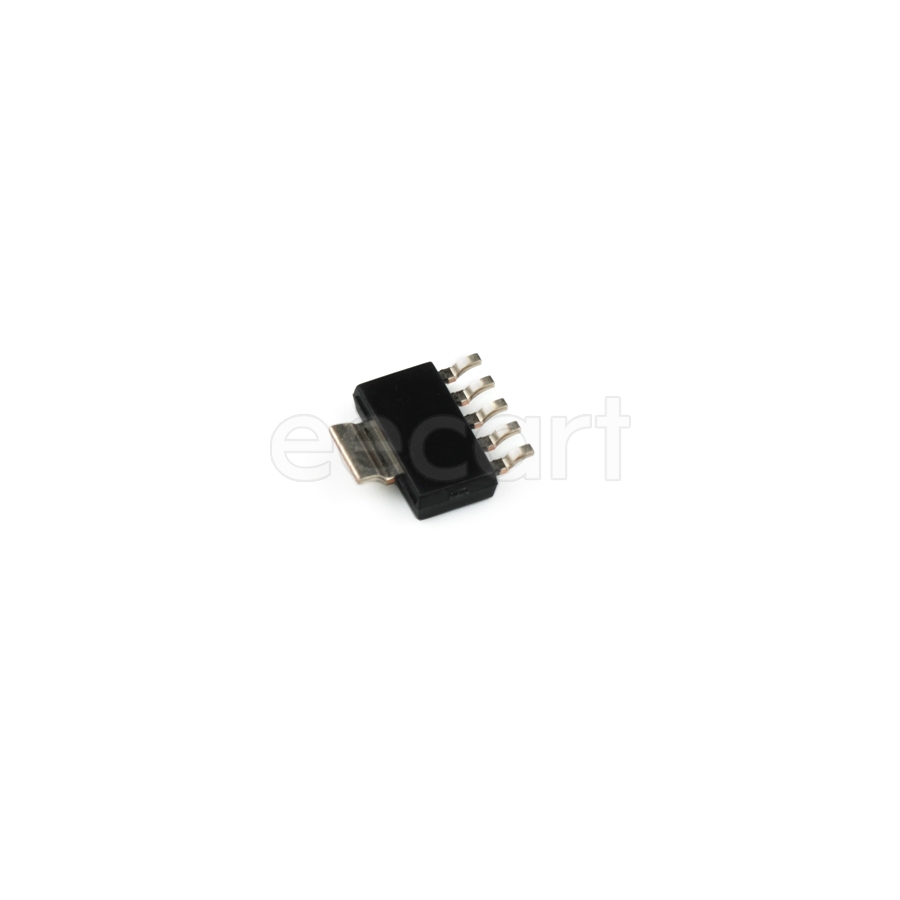

Voltage Regulators - Linear SOT-223-6 SMD/SMT Positive Adjustable 5 V 500 mA
| Parameter | Value |
|---|---|
| Length | 6.55 mm |
| Width | 3.55 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Height | 1.65 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Positive |
| REACH SVHC | No SVHC |
| Dropout Voltage | 210 mV |
| Min Input Voltage | 2.1 V |
| Output Current | 500 mA |
| Output Voltage | 5 V |
| Output Type | Adjustable |
| Lifecycle Status | Production (Last Updated: 9 months ago) |
| Max Supply Voltage | 6 V |
| Min Supply Voltage | 2.1 V |
| Accuracy | 2.5 % |
| Max Output Current | 500 mA |
| Input Bias Current | 120 µA |
| Quiescent Current | 220 µA |
| Max Input Voltage | 6 V |
| Number of Outputs | 1 |
| Min Output Voltage | 800 mV |
| Max Output Voltage | 5 V |
| Reference Voltage | 410 mV |
| Schedule B | 8542390000 |
| Packaging | Reel |
| Load Regulation | 0.5 % |
| Line Regulation | 0.05 %/V |
Stock: 7862
Distributors
pcbx
pcbxUnit Price$0.43174
Ext.Price$0.43174
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.43174 | $0.43174 |
| 10 | $0.39607 | $3.96070 |
| 25 | $0.36334 | $9.08350 |
| 50 | $0.34717 | $17.35850 |
| 100 | $0.33171 | $33.17100 |
| 300 | $0.33171 | $99.51300 |
| 500 | $0.33171 | $165.85500 |
| 1000 | $0.33171 | $331.71000 |
| 3000 | $0.33171 | $995.13000 |
