MCP2200-I/SO
Manufacturer:
Microchip
Mfr.Part #:
MCP2200-I/SO
Datasheet:
Description:

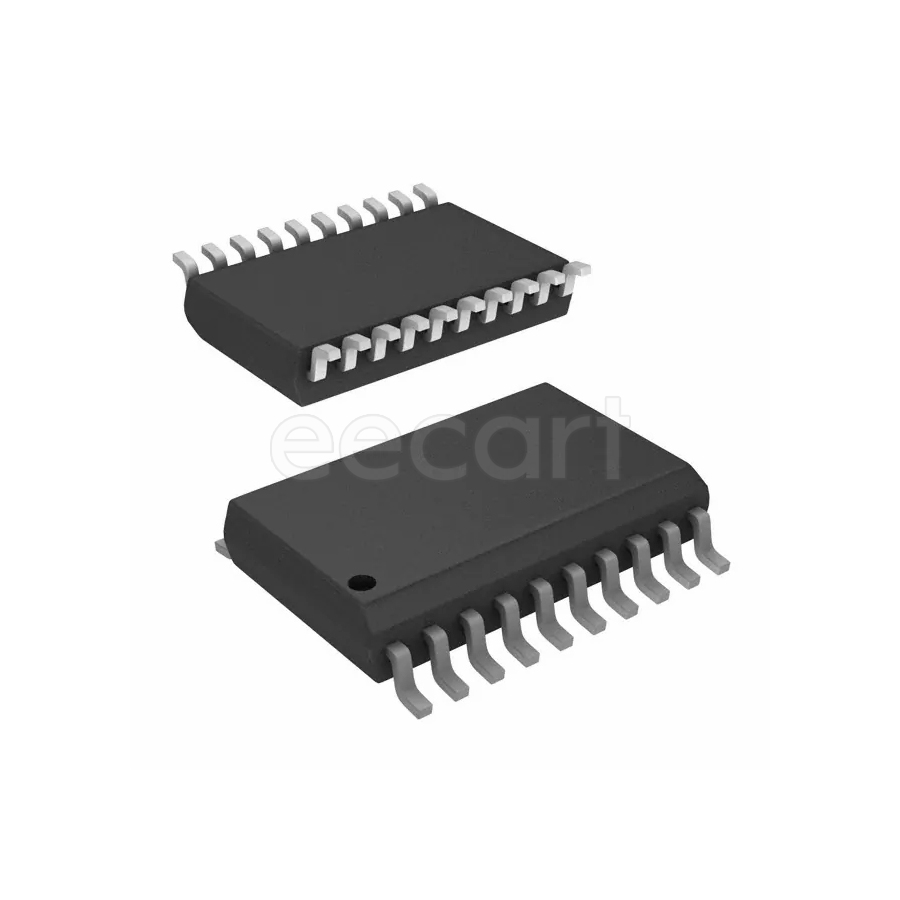

USB Interface ICs SOIC-20 SMD/SMT Full Speed (FS) 12 Mbps
| Parameter | Value |
|---|---|
| Length | 12.8 mm |
| Width | 7.5 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 20 |
| Height | 2.05 mm |
| Packaging | Tube |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 0.801 g |
| Contact Plating | Tin |
| Frequency | 12 MHz |
| Interface | UART, USB |
| Operating Supply Voltage | 3.3 V |
| Lifecycle Status | Production (Last Updated: 9 months ago) |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 3 V |
| Number of Channels | 1 |
| Operating Supply Current | 13 mA |
| Logic Function | Buffer |
| Data Rate | 12 Mbps |
| Number of Transceivers | 1 |
| Nominal Supply Current | 15 mA |
| ESD Protection | Yes |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Speed Grade | Full Speed (FS) |
| Schedule B | 8542390000 |
Stock: 1019
Distributors
pcbx
pcbxUnit Price$1.63377
Ext.Price$1.63377
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.63377 | $1.63377 |
| 10 | $1.49306 | $14.93060 |
| 25 | $1.36447 | $34.11175 |
| 50 | $1.29696 | $64.84800 |
| 100 | $1.23281 | $123.28100 |
