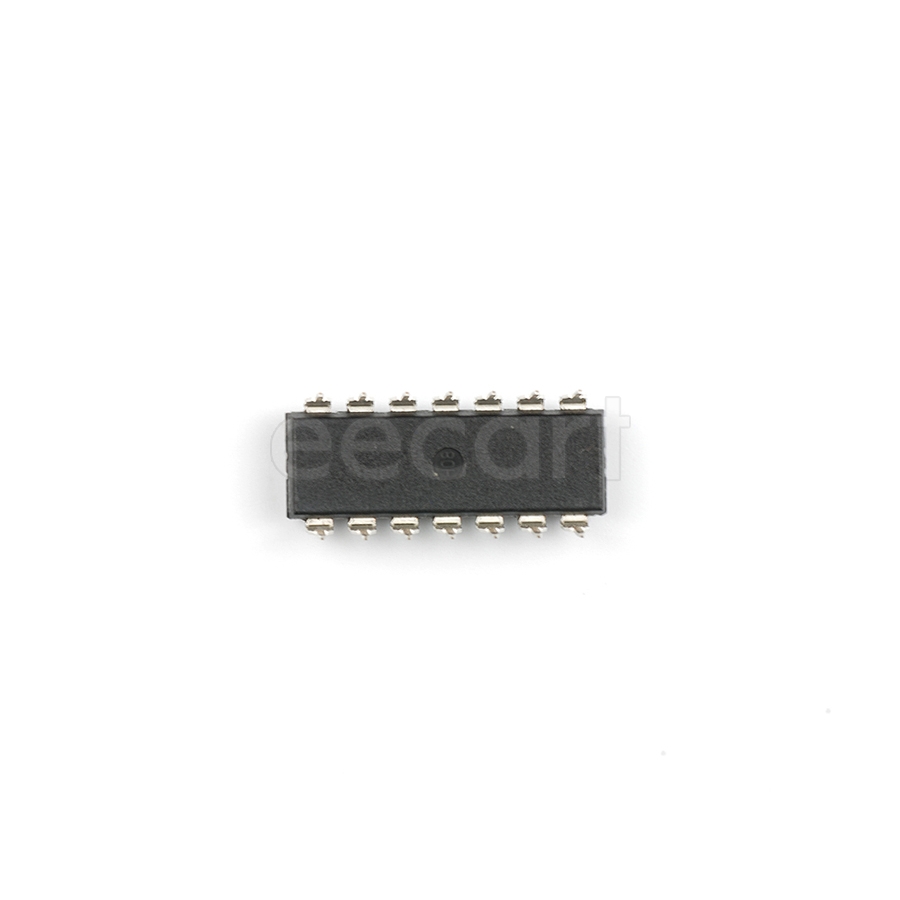

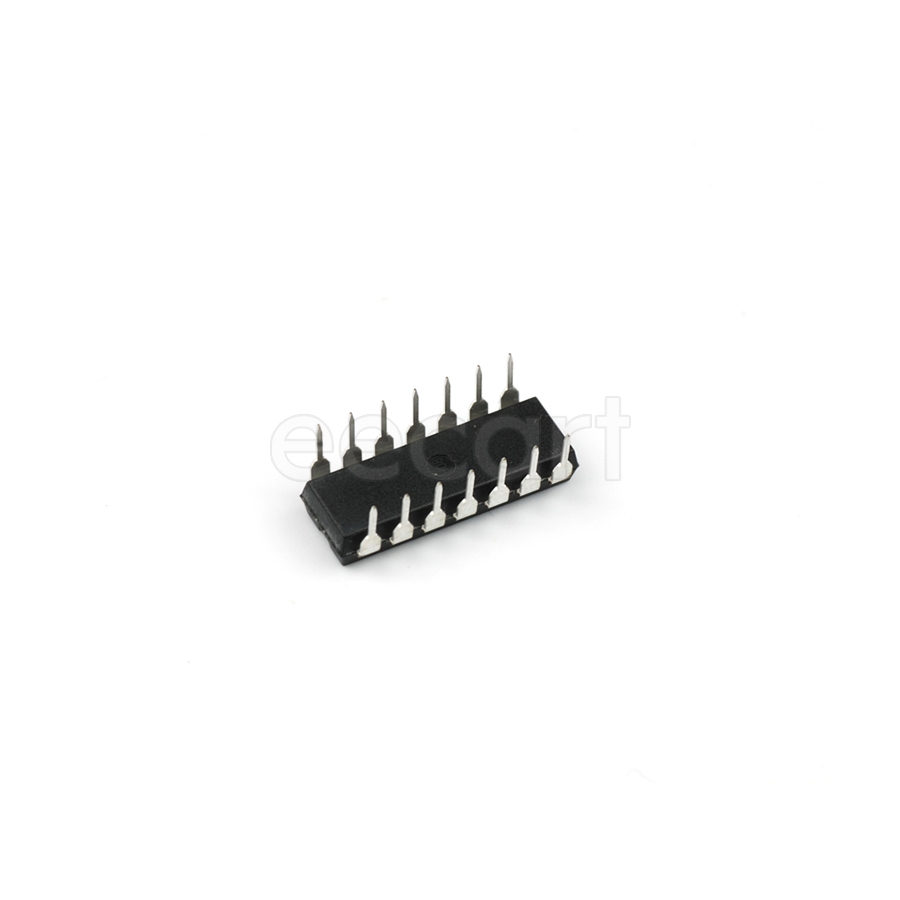

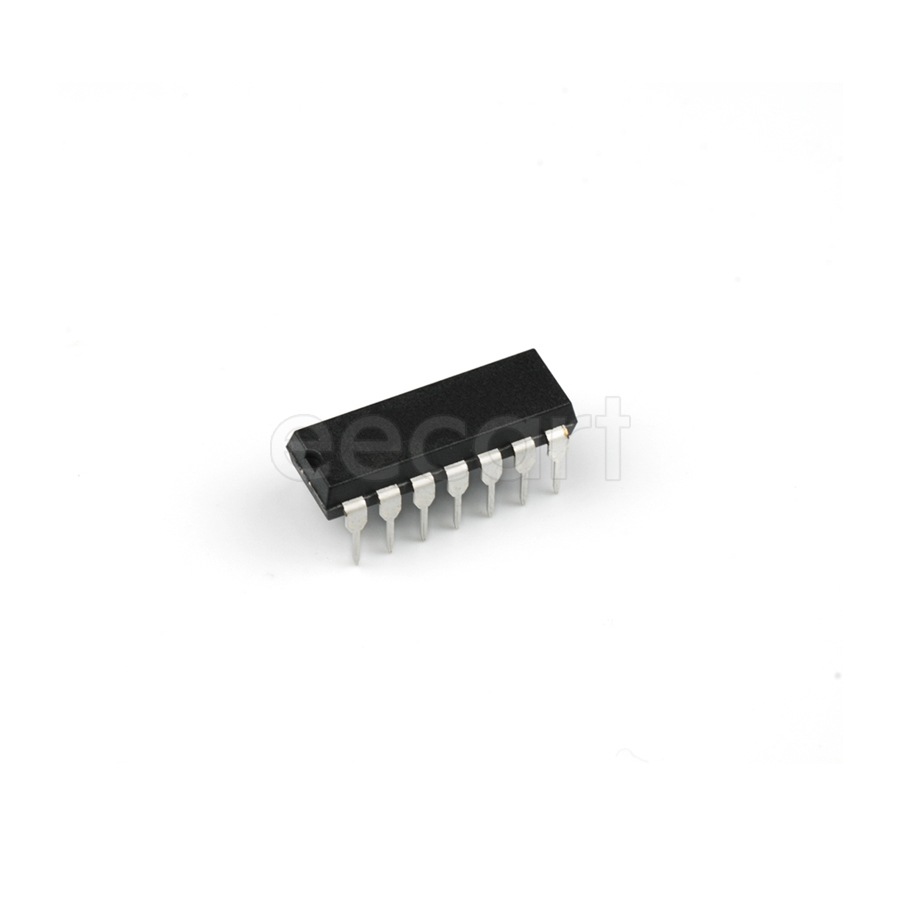

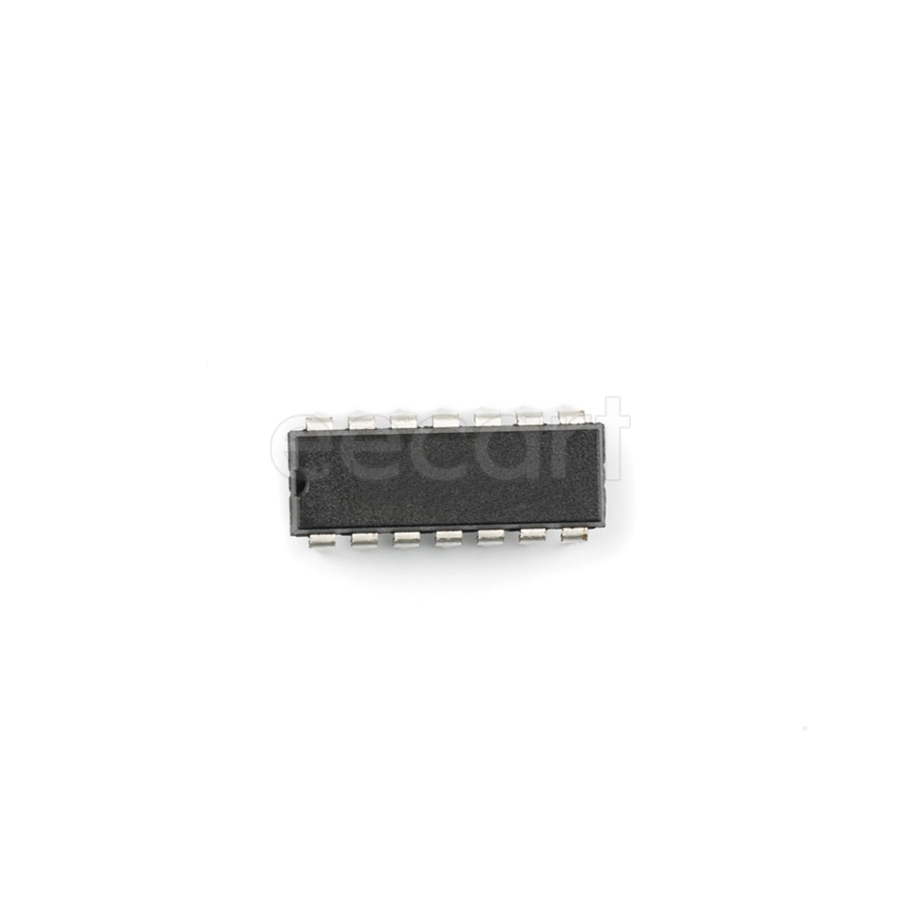

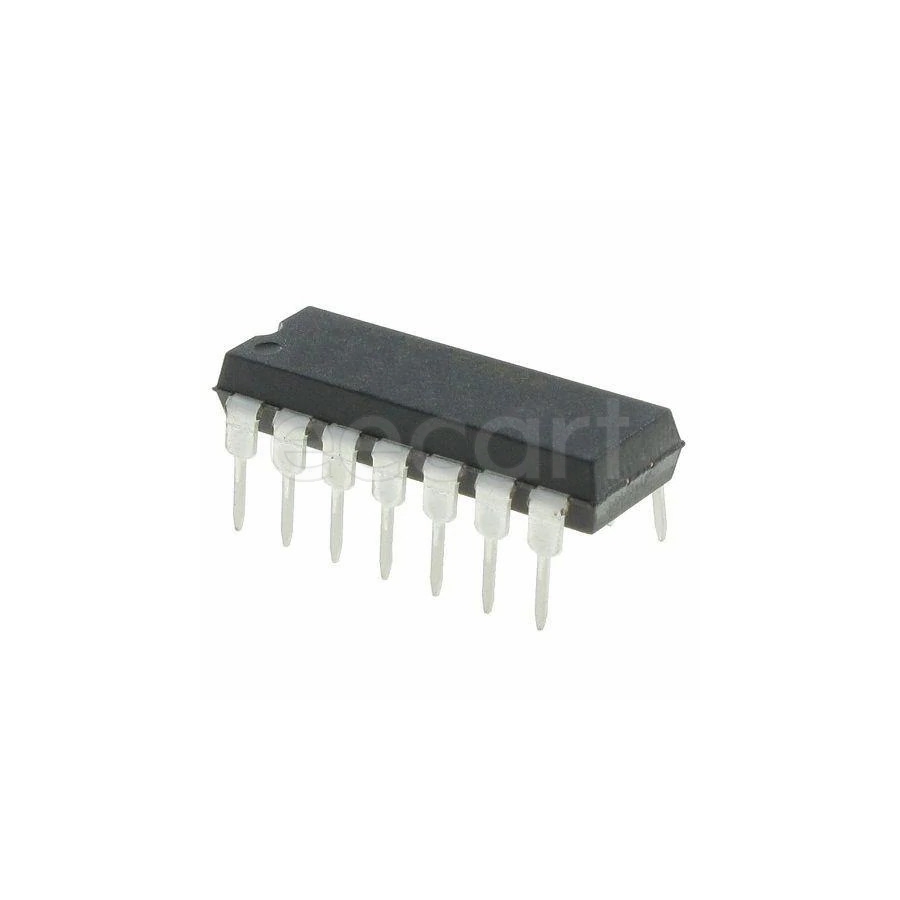

MCP609-I/P
Manufacturer:
Microchip
Mfr.Part #:
MCP609-I/P
Datasheet:
Description:
Amplifiers - Op Amps, Buffer, Instrumentation PDIP-14 Through Hole Micropower Amplifier Number of Circuits:4
| Parameter | Value |
|---|---|
| Length | 19.69 mm |
| Width | 7.112 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 14 |
| Height | 4.953 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Number of Elements | 4 |
| Min Input Voltage | 2.5 V |
| Output Current | 17 mA |
| Number of Circuits | 4 |
| Bandwidth | 155 kHz |
| Operating Supply Voltage | 5.5 V |
| Lifecycle Status | Production (Last Updated: 7 months ago) |
| Max Supply Voltage | 6 V |
| Min Supply Voltage | 2.5 V |
| Number of Channels | 4 |
| Slew Rate | 80 mV/µs |
| Operating Supply Current | 18.7 µA |
| Input Bias Current | 1 pA |
| Max Frequency | 1 kHz |
| Max Input Voltage | 6 V |
| Nominal Supply Current | 25 µA |
| Output Current per Channel | 17 mA |
| Gain Bandwidth Product | 155 kHz |
| Input Offset Voltage (Vos) | 250 µV |
| Voltage Gain | 121 dB |
| Power Supply Rejection Ratio (PSRR) | 80 dB |
| Schedule B | 8542330000 |
| Common Mode Rejection Ratio (CMRR) | 75 dB |
| Input Voltage Noise Density | 38 nV/sqrt Hz |
| Amplifier Type | Micropower Amplifier |
Stock: 15
Distributors
pcbx
pcbxUnit Price$5.05478
Ext.Price$5.05478
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.05478 | $5.05478 |
| 10 | $4.47686 | $44.76860 |
| 25 | $4.19948 | $104.98700 |
| 50 | $3.93929 | $196.96450 |
| 100 | $3.69522 | $369.52200 |
| 300 | $3.61306 | $1083.91800 |
| 500 | $3.53274 | $1766.37000 |
| 1000 | $3.45960 | $3459.60000 |
