MCP8024-H/PT
Manufacturer:
Microchip
Mfr.Part #:
MCP8024-H/PT
Datasheet:
Description:

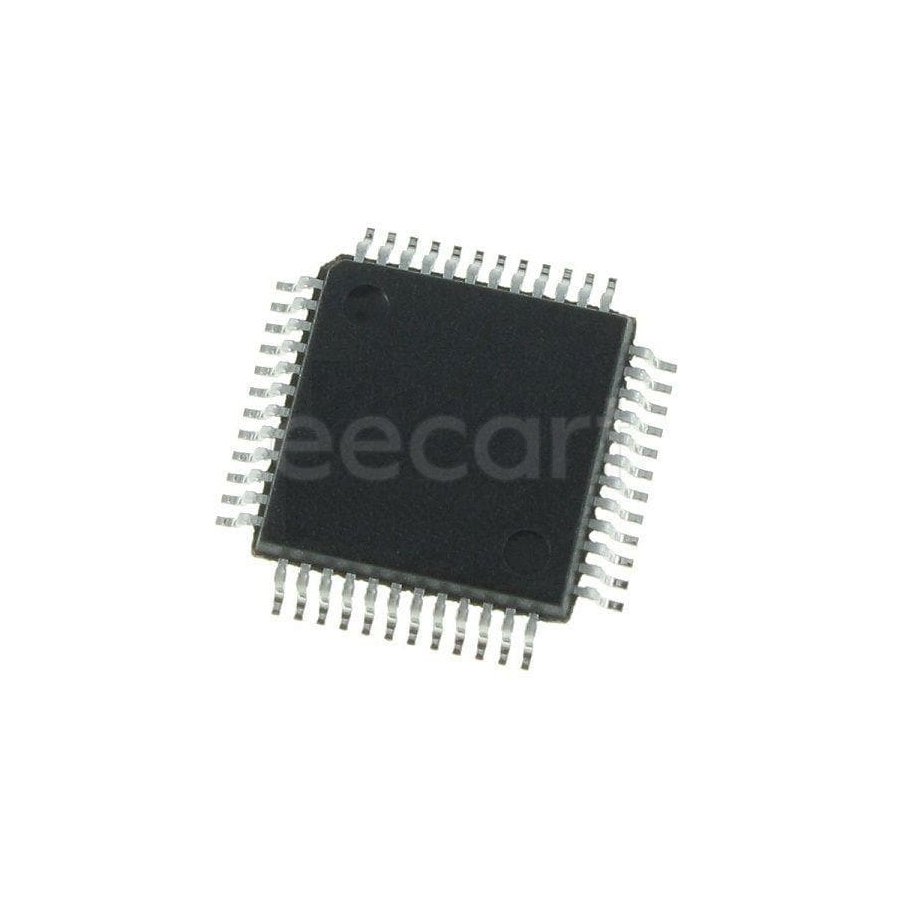

Motor Drivers TQFP-48 SMD/SMT PWM Pre-Driver - Half Bridge (3)
| Parameter | Value |
|---|---|
| Length | 7 mm |
| Width | 7 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 48 |
| Height | 1.05 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 9.071791 g |
| Frequency | 461 kHz |
| Interface | PWM |
| Output Current | 500 mA |
| Output Voltage | 12 V |
| Max Supply Voltage | 28 V |
| Min Supply Voltage | 6 V |
| Max Collector Current | 500 mA |
| Switching Frequency | 461 kHz |
| Number of Outputs | 3 |
| Motor Type | Brushless DC (BLDC) |
| Collector Emitter Voltage (VCEO) | 28 V |
| Reference Voltage | 1.25 V |
| Schedule B | 8542390000 |
| Operating Supply Voltage | 6 V to 28 V |
| Packaging | Tray |
| Motor Type - AC, DC | Brushless DC |
| Output Configuration | Pre-Driver - Half Bridge (3) |
| Applications | General Purpose |
| Function | Controller - Commutation, Direction Management |
| Chemistry/Technology | Power MOSFET |
Stock: 23
Distributors
pcbx
pcbxUnit Price$2.34614
Ext.Price$2.34614
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.34614 | $2.34614 |
| 10 | $2.14345 | $21.43450 |
| 25 | $1.95826 | $48.95650 |
