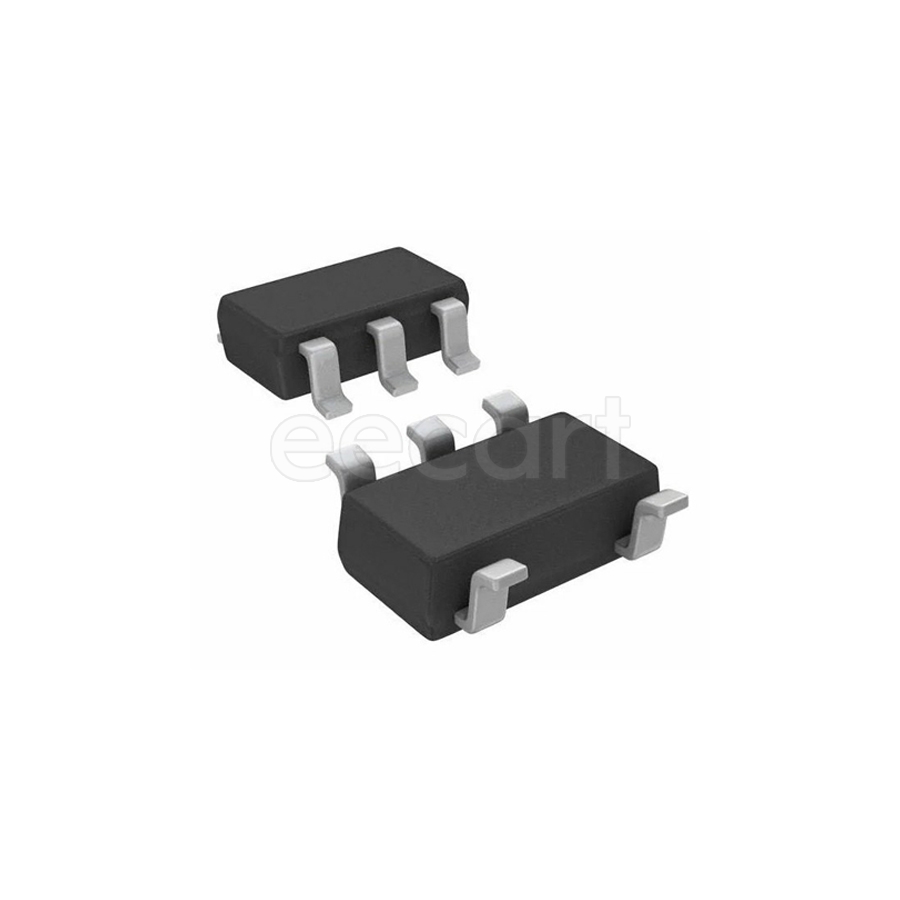

MIC2287CYD5-TR
Manufacturer:
Microchip
Mfr.Part #:
MIC2287CYD5-TR
Datasheet:
Description:
LED Drivers TSOT-23-5 SMD/SMT Analog, PWM 500 mA
| Parameter | Value |
|---|---|
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Height | 1 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| REACH SVHC | No SVHC |
| Frequency | 1.2 MHz |
| Min Input Voltage | 2.5 V |
| Output Current | 500 mA |
| Output Voltage | 34 V |
| Lifecycle Status | Production (Last Updated: 7 months ago) |
| Max Supply Voltage | 10 V |
| Min Supply Voltage | 2.5 V |
| Max Supply Current | 5 mA |
| Topology | Boost |
| Switching Frequency | 1.2 MHz |
| Max Input Voltage | 10 V |
| Number of Outputs | 1 |
| Dimming | Analog, PWM |
| Nominal Supply Current | 2.5 mA |
| Output Current per Channel | 750 mA |
| Max Junction Temperature (Tj) | 105 °C |
| Number of Segments | 6 |
| Schedule B | 8542390000 |
| Applications | Backlight |
| Internal Switch | Yes |
| Type | DC DC Regulator |
| RoHS | Compliant |
Stock: 2450
Distributors
pcbx
pcbxUnit Price$0.56340
Ext.Price$0.56340
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.56340 | $0.56340 |
| 10 | $0.51750 | $5.17500 |
| 25 | $0.47534 | $11.88350 |
| 50 | $0.45302 | $22.65100 |
| 100 | $0.43174 | $43.17400 |
| 300 | $0.43174 | $129.52200 |
| 500 | $0.43174 | $215.87000 |
| 1000 | $0.43174 | $431.74000 |
| 3000 | $0.43174 | $1295.22000 |
