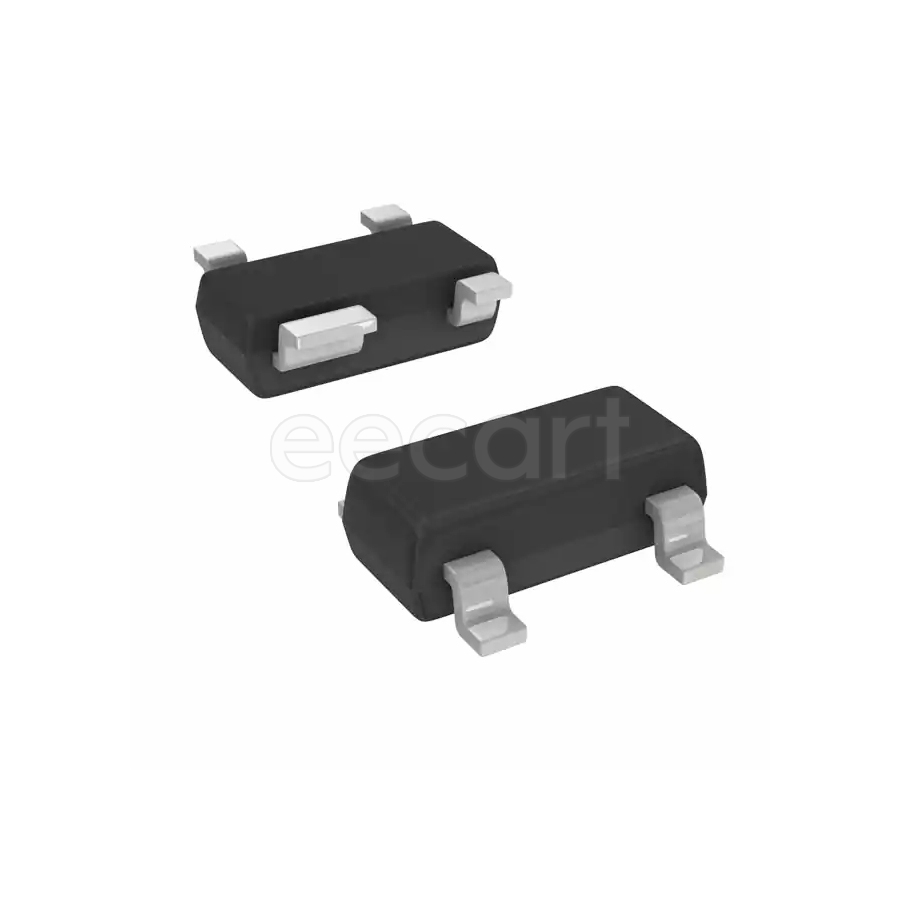

MIC4416YM4-TR
Manufacturer:
Microchip
Mfr.Part #:
MIC4416YM4-TR
Datasheet:
Description:
Gate Drivers SOT-143 SMD/SMT Non-Inverting N-Channel MOSFET Single
| Parameter | Value |
|---|---|
| Length | 2.92 mm |
| Width | 1.3 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Height | 1.02 mm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Type | Low Side |
| Output Current | 1.2 A |
| Output Voltage | 20 V |
| Max Power Dissipation | 600 mW |
| Max Supply Voltage | 18 V |
| Min Supply Voltage | 4.5 V |
| Max Output Current | 1.2 A |
| Ambient Temperature Range High | 85 °C |
| Number of Channels | 1 |
| Turn-On Delay Time | 42 ns |
| Turn-Off Delay Time | 42 ns |
| Propagation Delay | 60 ns |
| Channel Type | Single |
| Number of Outputs | 1 |
| Fall Time | 16 ns |
| Rise Time | 14 ns |
| Nominal Supply Current | 370 µA |
| Number of Drivers | 1 |
| Max Junction Temperature (Tj) | 125 °C |
| Max Output Voltage | 18 V |
| Schedule B | 8542390000 |
| Logic Voltage | 0.8 V, 2.4 V |
| Peak Output Current | 1.2 A, 1.2 A |
| Gate Type | N-Channel MOSFET |
| Configuration | Non-Inverting |
Stock: 556
Distributors
pcbx
pcbxUnit Price$0.91056
Ext.Price$0.91056
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.91056 | $0.91056 |
| 10 | $0.73056 | $7.30560 |
| 25 | $0.66770 | $16.69250 |
| 50 | $0.61025 | $30.51250 |
| 100 | $0.55775 | $55.77500 |
| 300 | $0.52999 | $158.99700 |
| 500 | $0.50362 | $251.81000 |
| 1000 | $0.47656 | $476.56000 |
