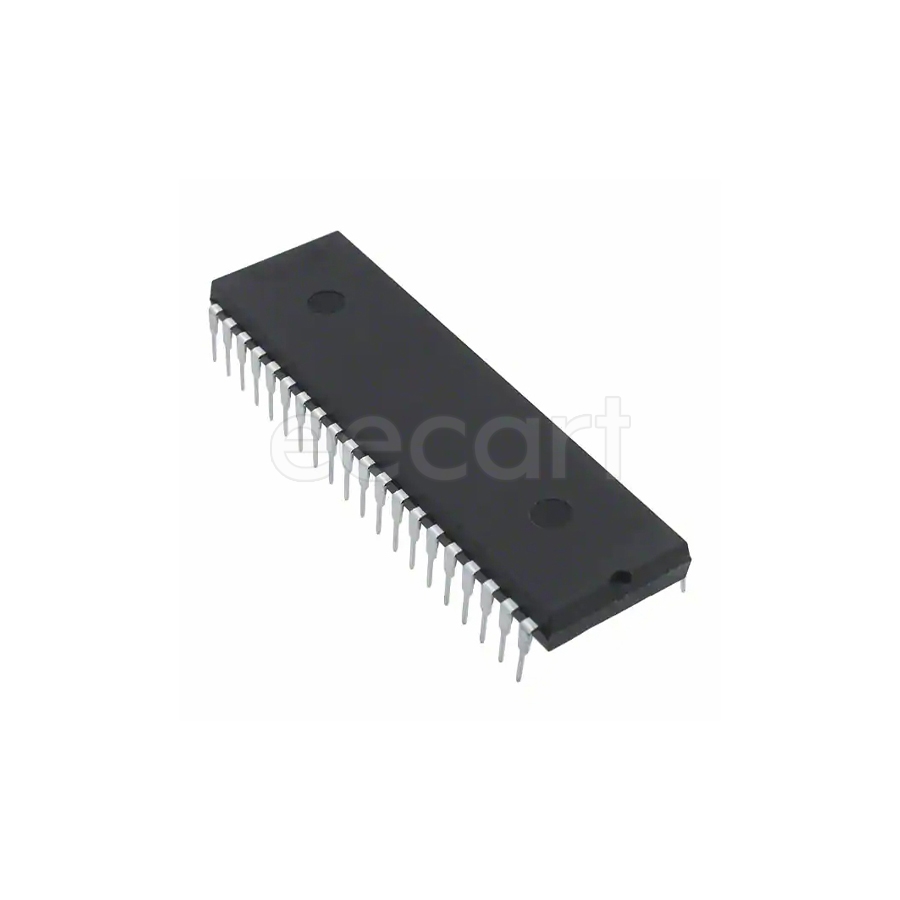

MM5451YN
Manufacturer:
Microchip
Mfr.Part #:
MM5451YN
Datasheet:
Description:
LED Drivers PDIP-40 Through Hole 2.7 mA
| Parameter | Value |
|---|---|
| Length | 51.82 mm |
| Width | 13.86 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 40 |
| Height | 3.683 mm |
| Radiation Hardening | No |
| Manufacturer Package Identifier | PDIP-40LD-PL-1 |
| REACH SVHC | No SVHC |
| Current Rating | 15 mA |
| Interface | Serial |
| Min Input Voltage | 4.75 V |
| Output Current | 2.7 mA |
| Output Voltage | 1.8 V |
| Max Power Dissipation | 1 W |
| Max Supply Voltage | 11 V |
| Min Supply Voltage | 4.75 V |
| Power Dissipation | 1 W |
| Ambient Temperature Range High | 85 °C |
| Number of Channels | 1 |
| Operating Supply Current | 10 mA |
| Max Supply Current | 10 mA |
| Low Level Output Current | 25 mA |
| Switching Frequency | 500 kHz |
| Max Input Voltage | 11 V |
| Number of Outputs | 35 |
| Nominal Supply Current | 10 mA |
| Max Junction Temperature (Tj) | 150 °C |
| Schedule B | 8542390000 |
| Packaging | Tube |
| Type | LED |
| RoHS | Compliant |
Stock: 3
Distributors
pcbx
pcbxUnit Price$8.96223
Ext.Price$8.96223
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $8.96223 | $8.96223 |
| 10 | $8.69395 | $86.93950 |
| 25 | $8.69395 | $217.34875 |
| 50 | $8.69395 | $434.69750 |
| 100 | $8.69395 | $869.39500 |
| 300 | $8.69395 | $2608.18500 |
| 500 | $8.69395 | $4346.97500 |
| 1000 | $8.69395 | $8693.95000 |
