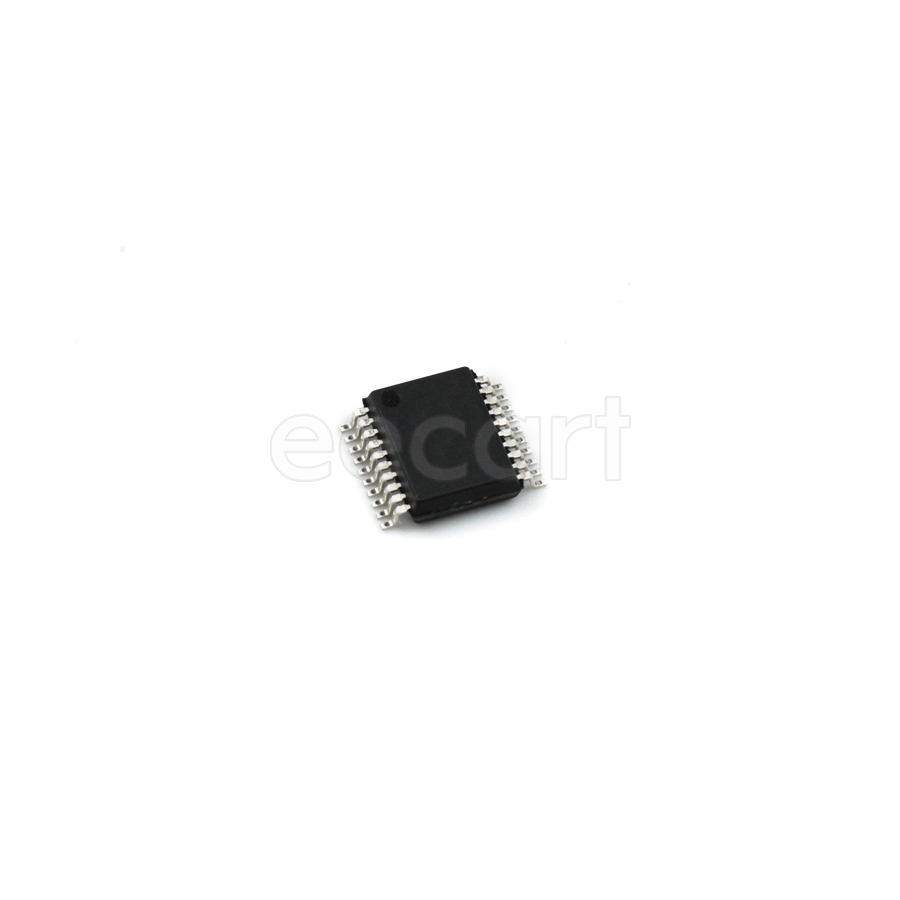

PIC18F13K22-I/SS
Manufacturer:
Microchip
Mfr.Part #:
PIC18F13K22-I/SS
Datasheet:
Description:
Microcontrollers SSOP-20 SMD/SMT 8 bit 8 kb FLASH
| Parameter | Value |
|---|---|
| Length | 7.5 mm |
| Width | 5.6 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 20 |
| Height | 1.85 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Frequency | 64 MHz |
| Core Architecture(core/core processor) | PIC |
| Interface | I²C, LIN, SPI, UART, USART |
| Memory Size | 8 kb |
| Memory Type | FLASH |
| Number of I/Os | 18 |
| Oscillator Type | Internal |
| Peripherals | Brown-out Detect/Reset, I²C, POR, PWM, WDT |
| Max Power Dissipation | 800 mW |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 1.8 V |
| Number of ADC Channels | 12 |
| Max Frequency | 64 MHz |
| RAM Size | 256 B |
| Data Bus Width | 8 bit |
| Density | 64 kb |
| Number of PWM Channels | 4 |
| Number of Programmable I/O | 17 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 4 |
| Number of I2C Channels | 1 |
| Operating Supply Voltage | 2.3 V to 5.5 V |
| RoHS | Compliant |
| Packaging | Tube |
| ADC Resolution | 10 bit |
| Max Clock Frequency | 64 MHz |
Stock: 3039
Distributors
pcbx
pcbxUnit Price$1.30206
Ext.Price$1.30206
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.30206 | $1.30206 |
| 10 | $1.24748 | $12.47480 |
| 25 | $1.19519 | $29.87975 |
| 50 | $1.08234 | $54.11700 |
